OPERATING PROCEDURES
6-5
PH61 Peristaltic Pump
Operating Procedures
6

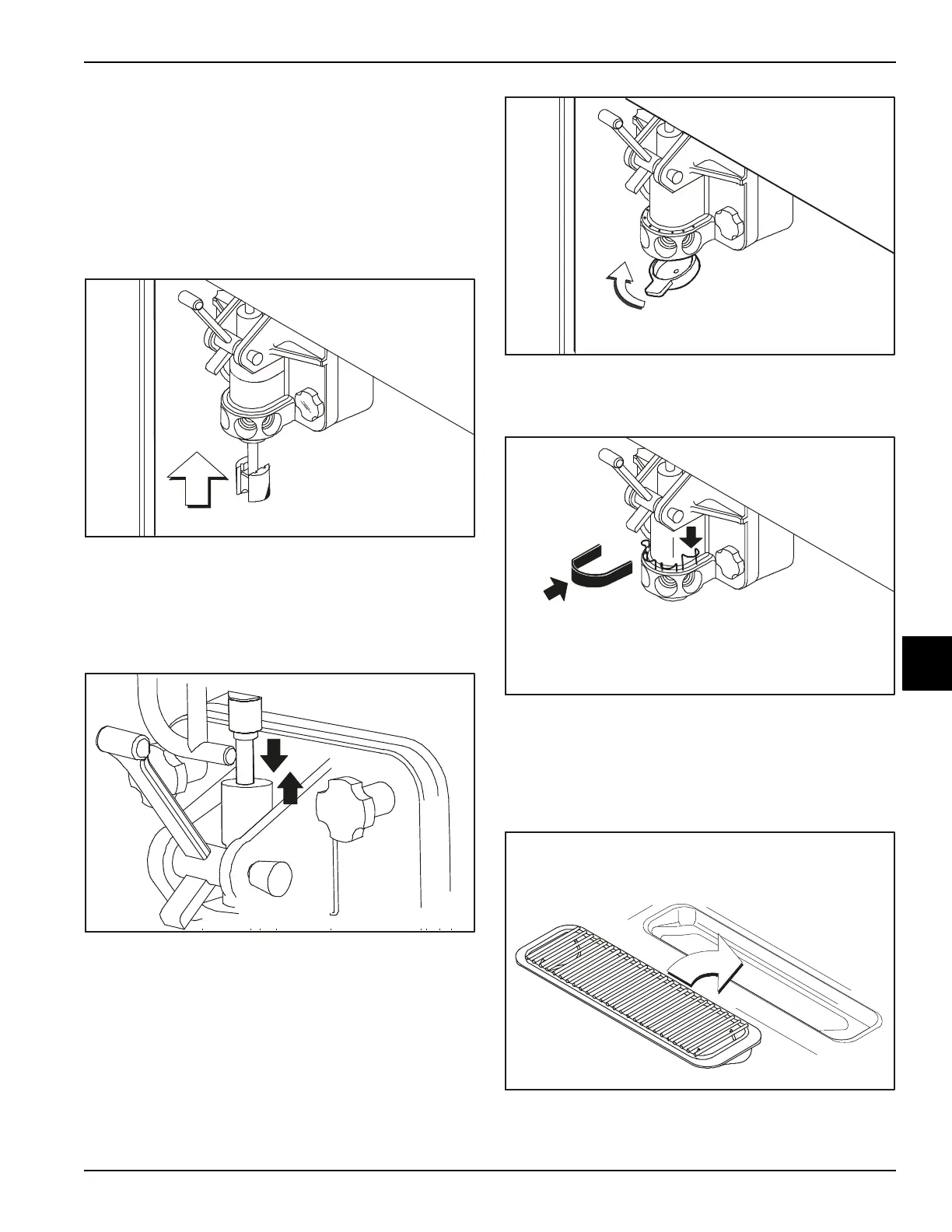

17. Insert the spinner blade shaft from the bottom, into
the center of the driven spinner, and up through the
draw valve cavity until the shaft appears at the top of
the draw valve. The spinner blade must be aligned
and engaged with the driven spinner at the bottom.
This allows the spinner shaft to rise high enough to
engage the spinner coupling at the top.
(See Figure 6-18.)
Figure 6-18
18. Raise the locking collar of the spinner coupling and
insert the spinner shaft into the cavity of the coupling
until the locking collar can drop into the locked
position. (
See Figure 6-19.)
Figure 6-19
19. Snap the restrictor cap over the end of the
door spout. (See Figure 6-20.)
Figure 6-20
20. Insert the syrup-valve retainers and push them down.
Install the syrup-valve pin retainer. (
See Figure 6-21.)
Figure 6-21
21. Slide the long drip pan into the hole in the front panel.
22. Slide the short drip pan into the hole in the rear panel.
23. Install the front drip tray and splash shield under the
door spout. (
See Figure 6-22.)
Figure 6-22
Mix Hopper Assembly
