OPERATING PROCEDURES
PH61 Peristaltic Pump
Operating Procedures
6

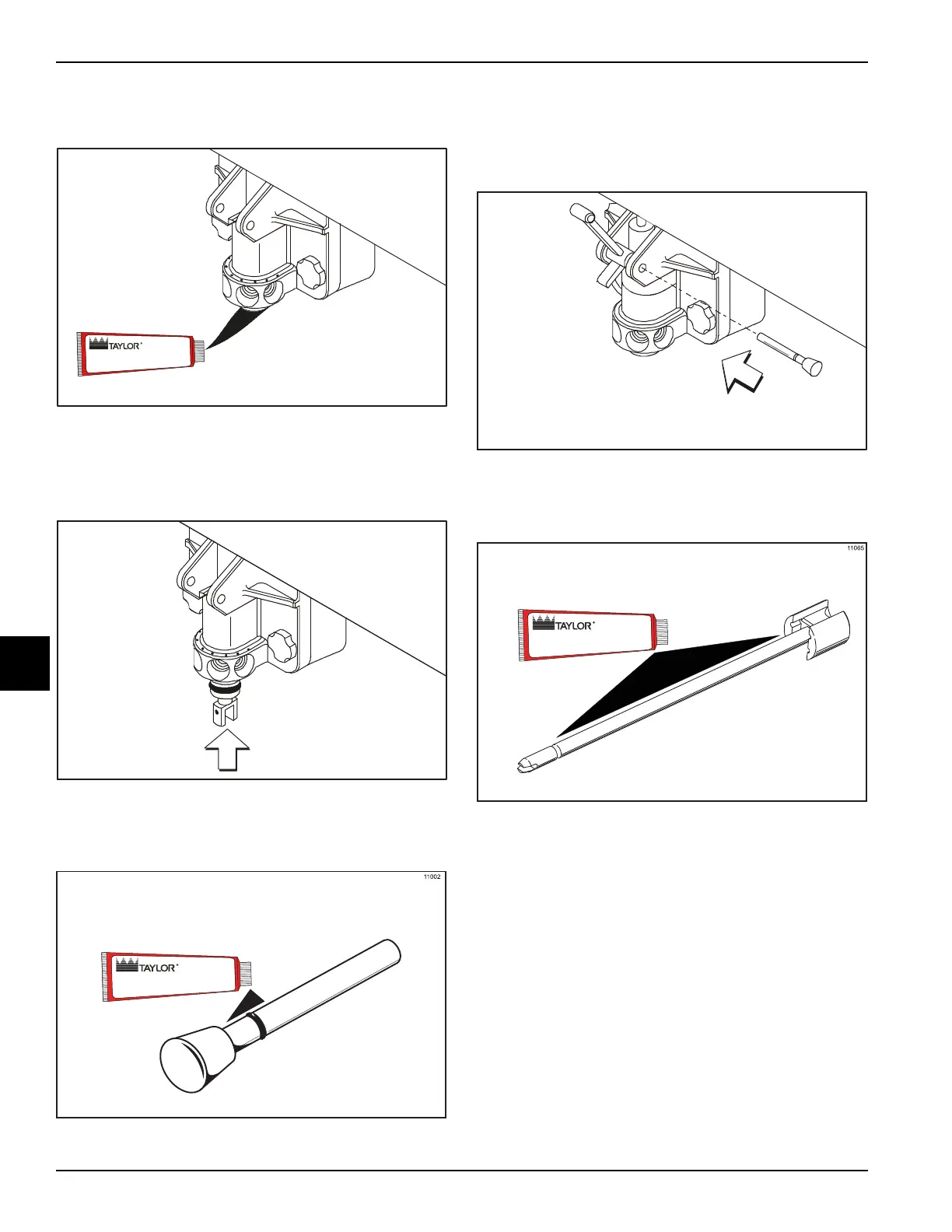

12. Lubricate the inside of the freezer door spout, top
and bottom. (
See Figure 6-13.)
Figure 6-13
13. Insert the draw-valve spinner assembly from the
bottom until the slot in the draw valve, which accepts
the draw handle, comes into view. (
See Figure 6-14.)
Figure 6-14
14. Install and lubricate the pivot pin O-ring. 
(See Figure 6-15.)
Figure 6-15
15. With the stopping tab of the draw handle facing
down, slide the fork of the draw handle into the slot of
the draw valve. Secure the draw handle with the pivot
pin. (
See Figure 6-16.)
Figure 6-16
16. Lubricate the shaft of the spinner blade up to the
groove. (
See Figure 6-17.)
Figure 6-17
23011
Apply the appropriate
Taylor approved food safe lubricant.
HP
23014
Apply the appropriate
Taylor approved food safe lubricant.
HP
23061
Apply the appropriate
Taylor approved food safe lubricant.
HP
