VL3X overview
VL3X – Reference manual (updated 2015-07-16) 34

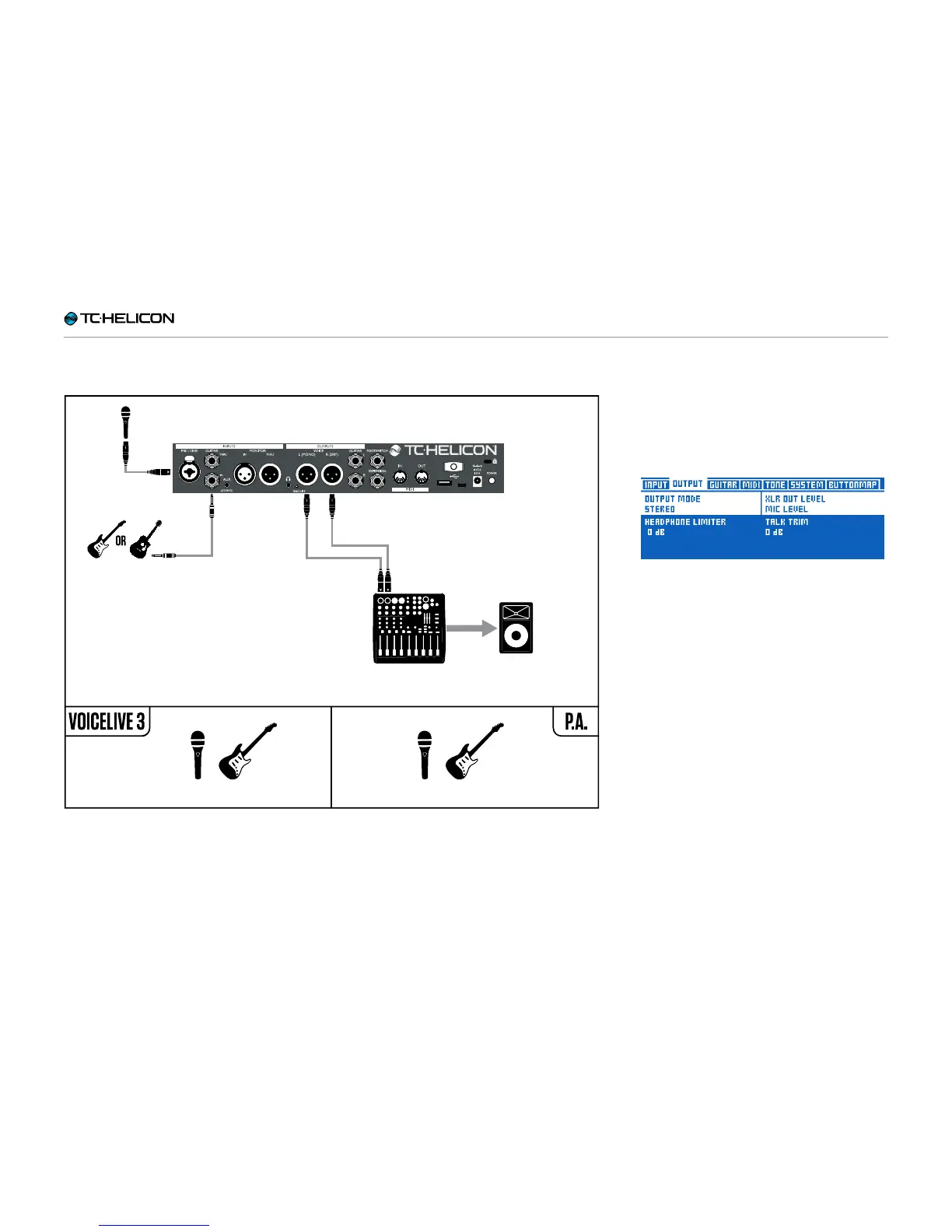

Stereo PA connection for vocals (and guitar if applicable)
This diagram shows a “Stereo” output mode.
Stereo sends a Left and Right signal via the XLR
outputs to your PA or mixer.
This allows you to enjoy the full benefits of stereo
audio effects.
Setting Output Mode to Stereo
Changing VL3X from Mono
(default) to Stereo output:
► Press Setup.
► Use the < or > Arrow buttons to move to the
Output tab.
► Use the Control Knob to move the selection
bar until XLR Output Mode is highlighted
(white).
► Turn the Mix Knob directly below the XLR Out-
put Mode box on the screen until the mode
changes to Stereo.
► Press Home to exit.
► When choosing Stereo, ensure the PA is ac-
tually outputting a stereo signal. It’s common
for a PA to have two speakers or speaker sets
– but still be mono.
