Dual Mono PA connection for vocals (& guitar if applicable)

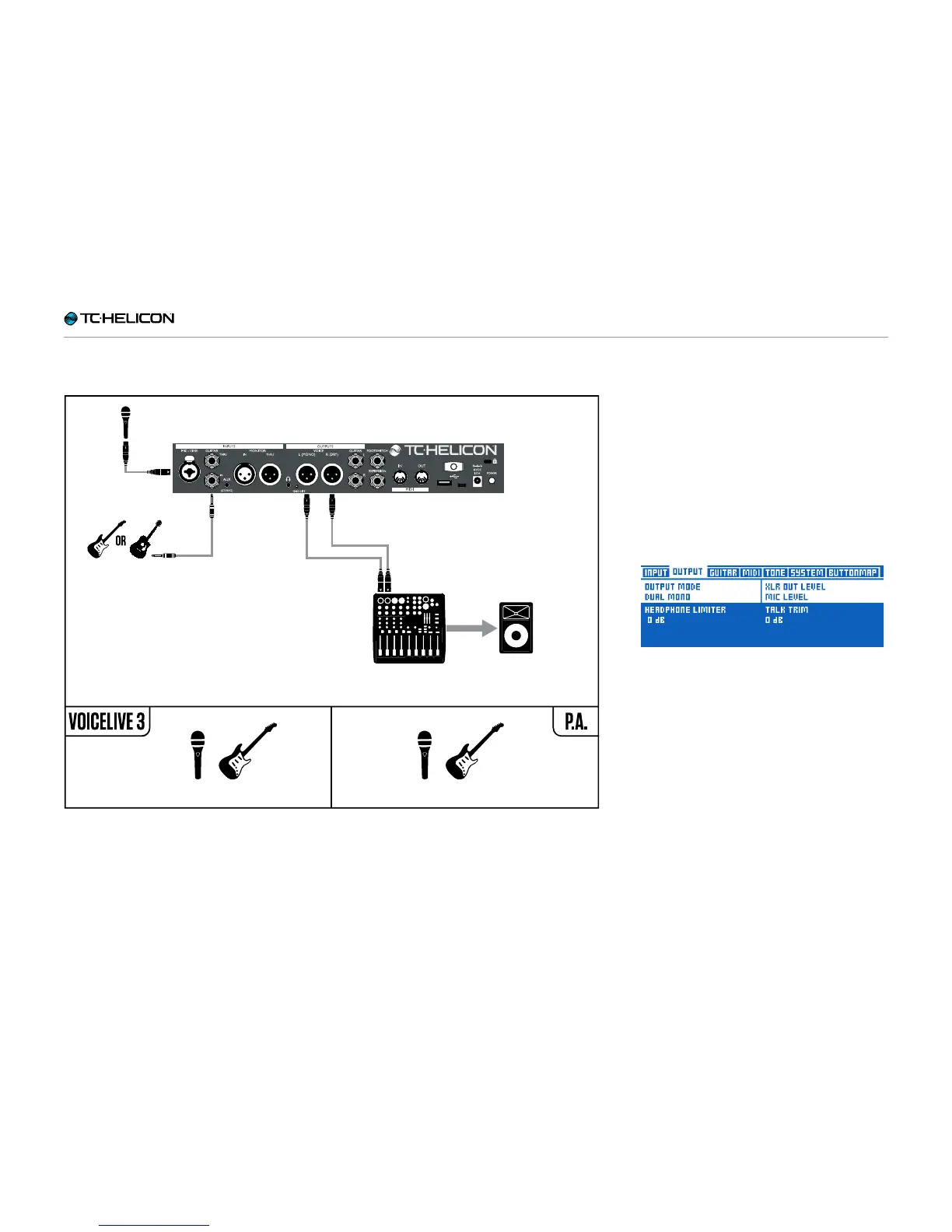

This diagram shows a “Dual Mono” output
mode. Dual Mono sends two mono signals from
the XLR outputs on VL3X. One XLR carries the
vocal sounds and the other XLR carries the gui-
tar sounds.
This allows you to balance the vocal and guitar
levels via your mixer. Dual Mono can be espe-
cially effective at a venue with a sound tech. The
guitar and vocal signals are separated and can
be controlled independently, making the tech’s
mixing job easier.
Setting Output Mode to Dual Mono
Changing VL3X from Mono
(default) to Dual Mono output
► Press Setup.
► Use the < or > Arrow buttons to move to the
Output tab.
► Use the Control Knob to move the selection
bar until XLR Output Mode is highlighted
(white).
► Turn the Mix Knob directly below the XLR Out-
put Mode box on the screen until the mode
changes to Dual Mono.
► Press Home to exit.
