DC Inverter Air
CAUTION: Install the drainage hose at the rear,it should not be installed on the top .

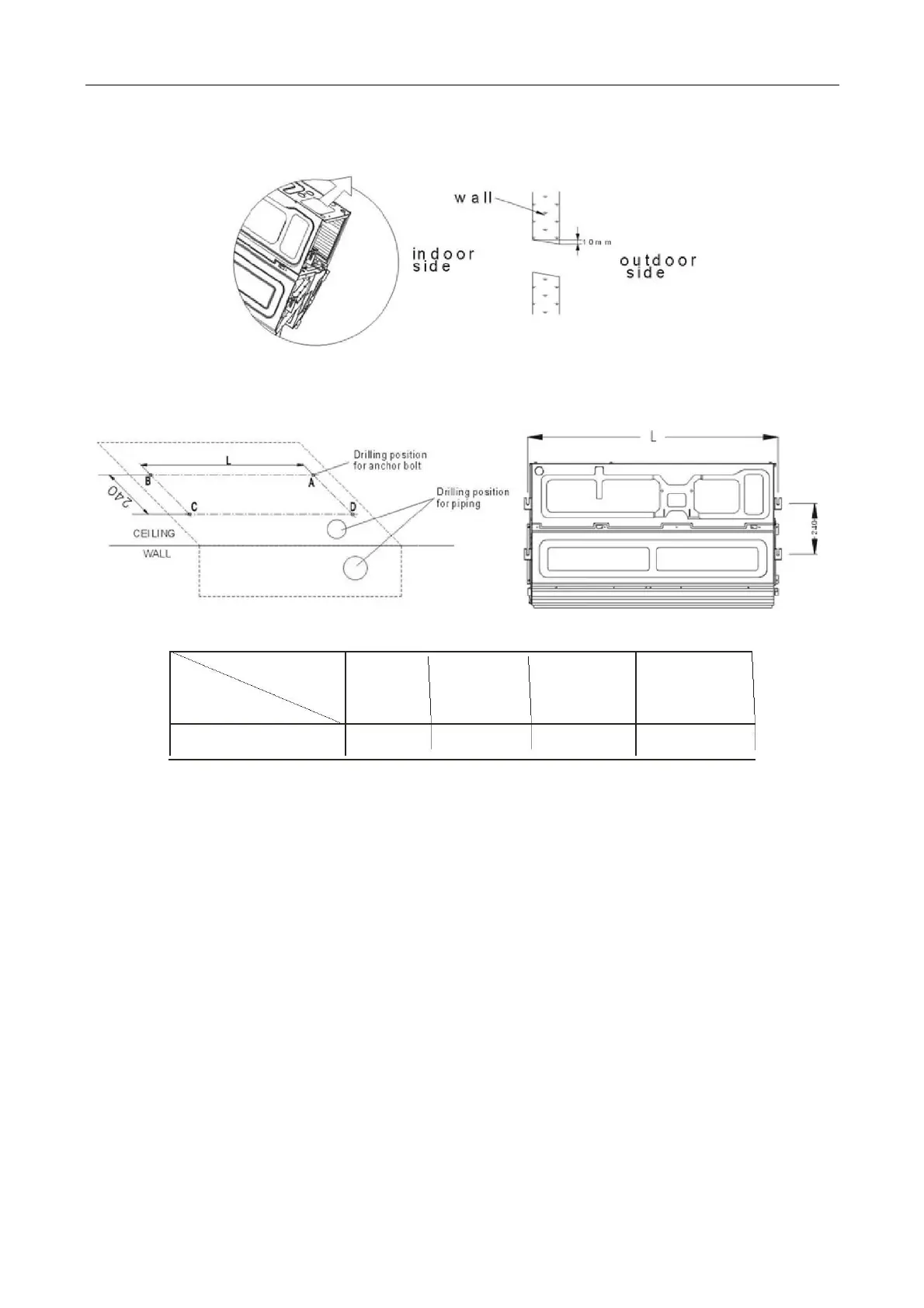

When the directions are selected, drill 80 mm (3‐1 /8") and 50 mm (2") or 150 mm (6") d ia. hole on the wall
so that the hole is tilted do wnward toward the outdo or for smoot h water flow.
2. Drilling holes for anch or bolts and installing the anchor blots(m10).
Please drill four holes for anchor bolts at the position A,B,C and D.
NOTE:
4) Installing indoor unit
Now,securely tighten nuts to each bolt with washers and spring washers.
NOTE: The installation angle should not exceed 10 degrees.
49/ 113
