DC Inverter Air

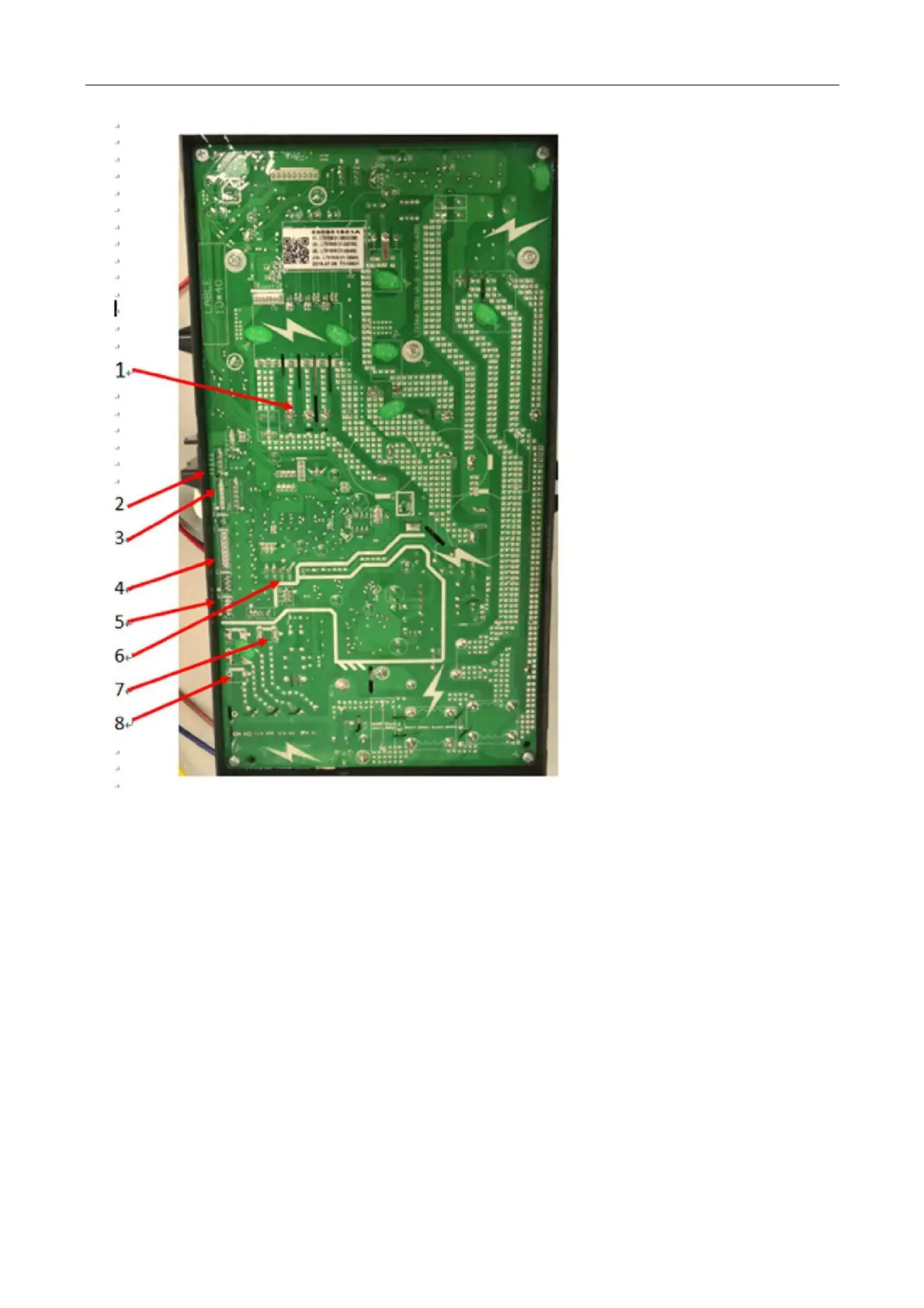

18K ,24K outdoor PCB
1‐‐‐ Compressor drive output，UVW
2‐‐‐ Monitor and test ou tput
3‐‐‐ Electronic expansion valve interface
4－－Exhaust temperature sensor interface。
5－－Temperature sensor interface of outdoor temperature and condense tube
6－－Outdoor DC fan output
7－－Four way valve out put interface
8－－Power input
