DC Inverter Air

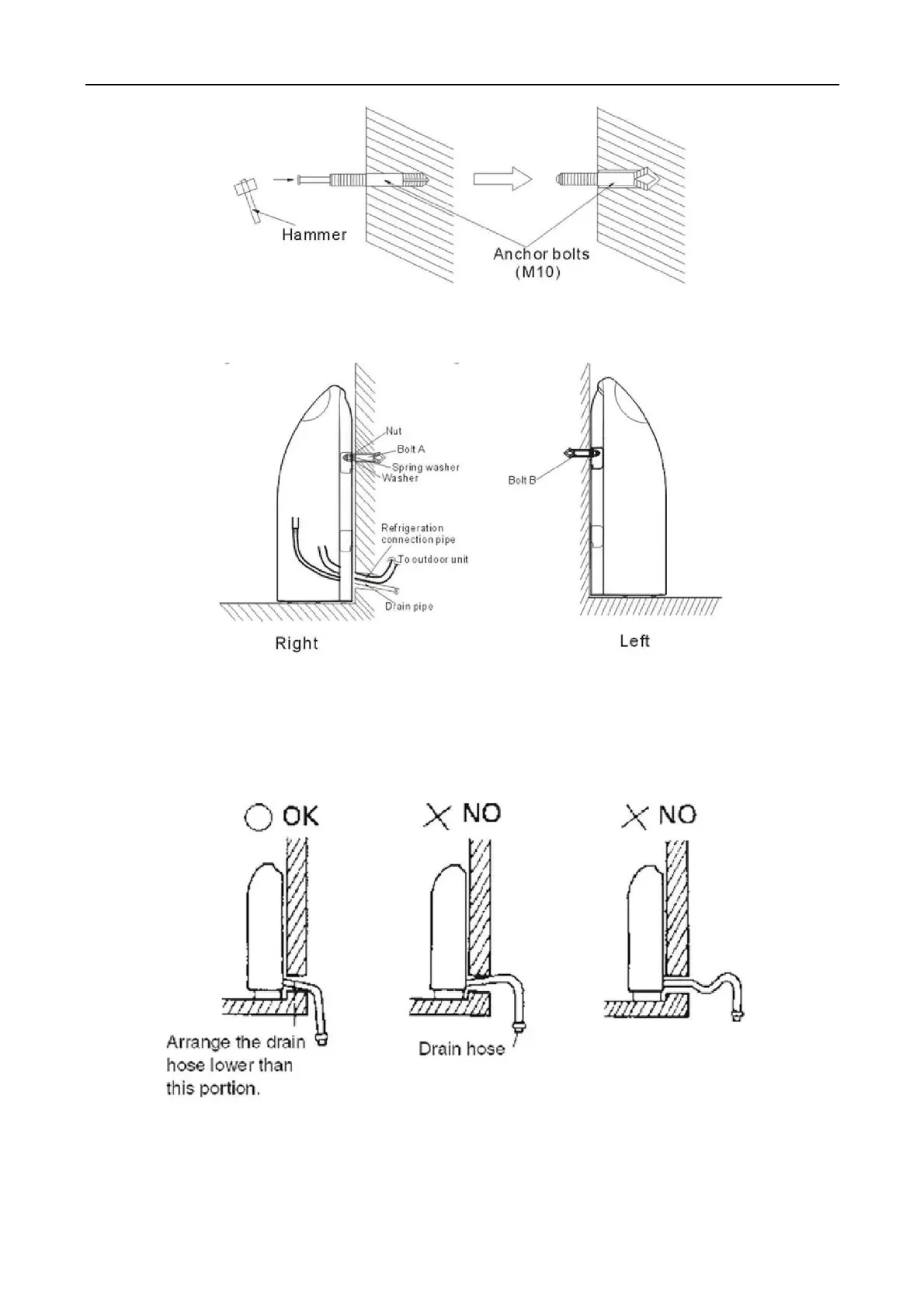

Install the unit to them with nuts,washers and sp ring washer
s NOTE: The installation angle should not exceed 15 degrees.
CAUTION
Be sure to arrange the drain hose so that it is leveled lower than the drain hose connecting port of the
indoor unit.
3) UNDER CEILING TYPE
1.Select piping and drain directions.
48/ 113
