DC Inverter Air

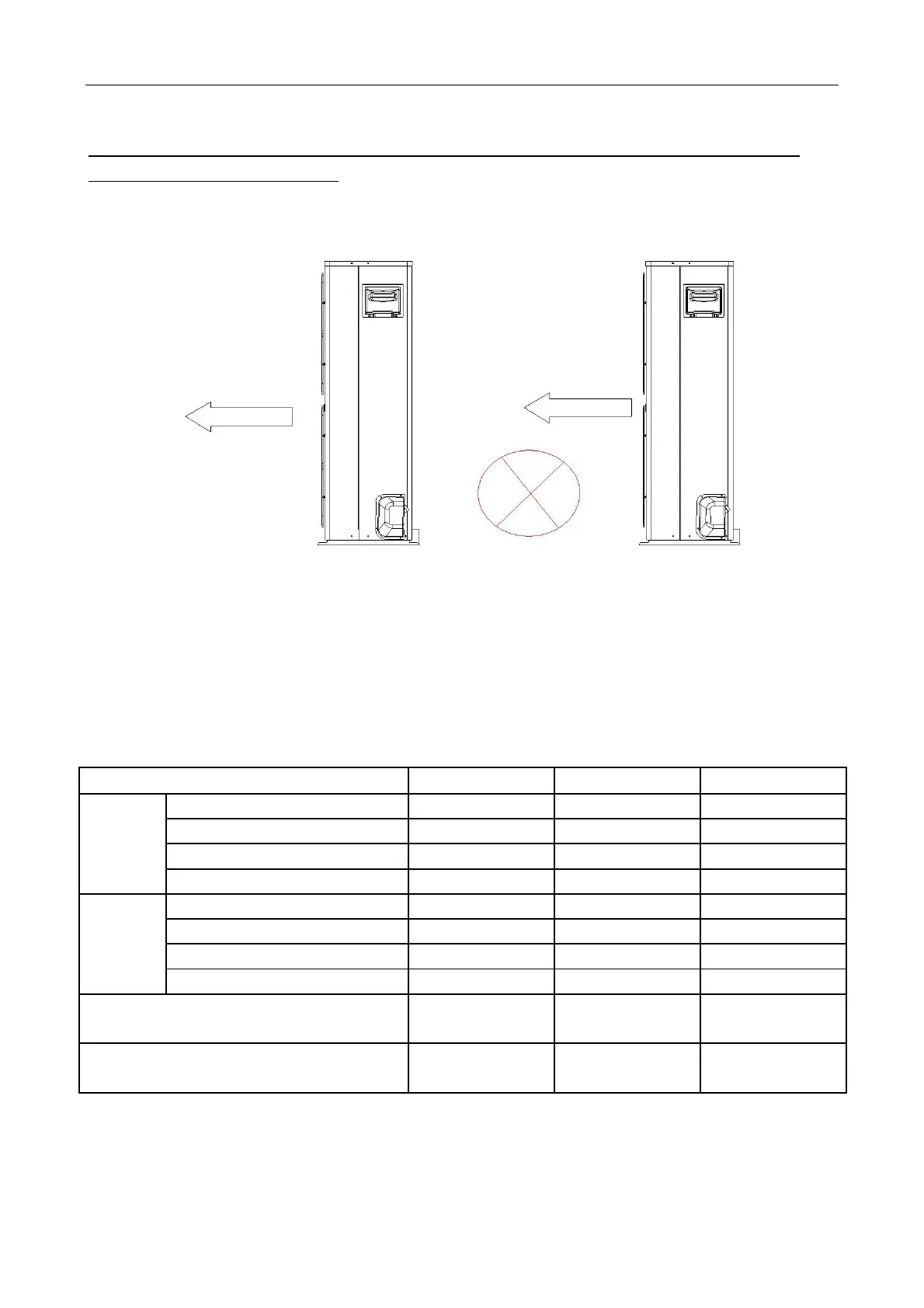

6) Front/Rear Arrangement of Outdoor Units in the Same Plane (Air outlet in same direction, namely, the air
outlet of the rear outdoor unit faces towards the air inlet of the front unit):
It is necessary to put an end to this installation mode! Because the return air of the front unit may seriously
affect the exhaust air of the rear unit!
Wind direction
Wind direction
7. Electrical Design
7.1. Specification of Power Supply
MODEL
18K
24K
INDOOR
PHASE
1‐PHASE
1‐PHASE
UNIT
FREQUENCY AND VOLT
220‐240V 50Hz
220‐240V 50Hz
POWER
POWER WIRING (MM
2
)
3*2.5
3*2.5
CIRCUIT BREAKER (A)
15
15
OUTDOOR
PHASE
1‐PHASE
1‐ PHASE
UNIT
FREQUENCY AND VOLT
220‐240V 50Hz
220‐240V 50Hz
POWER
POWER WIRING (MM
2
)
3*4.0
4*4.0
CIRCUIT BREAKER (A)
30
30
INDOOR/OUTDOOR CONNECTION
3*0.75
3*0.75
WIRING(WEAK ELECTRIC SIGNAL((MM
2
)
INDOOR/OUTDOOR CONNECTION
3*2.5
3*2.5
WIRING(STRANG ELECTRIC SIGNAL((MM
2
)
62/ 113
