DC Inverter Air
Motor Sound Test
The drainage test is doing during checking the drain pump motor running sound .
Reset the water level switch connection to the original position after the drainage test .
3) INSTALLATION OF PANEL
1 BODY DIMENSION:

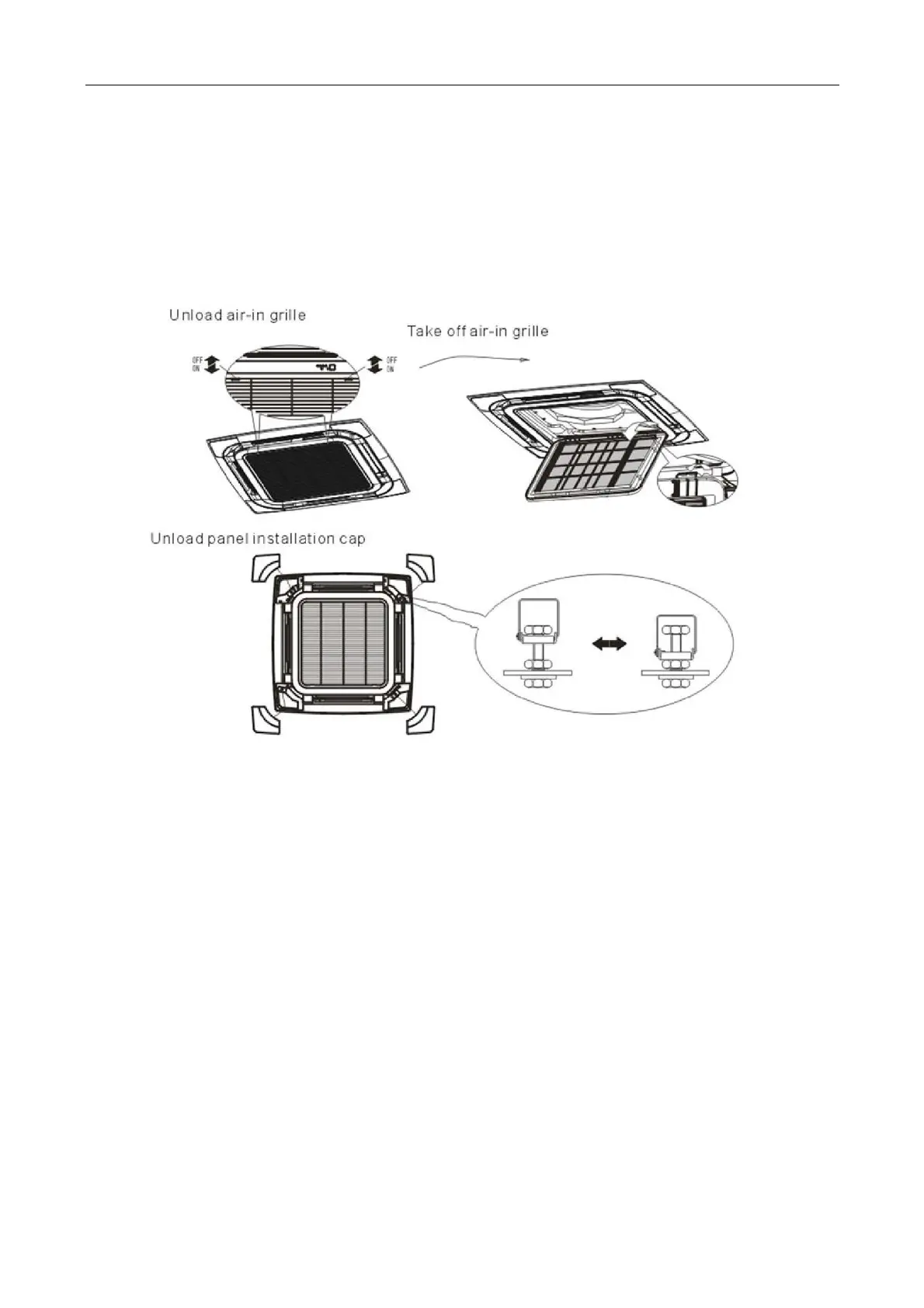

2 INSTALLATION OF PANEL
1.Please screw M10 gasket and M6 *20 bolt at the corner of indoor unit ,before scre wing them fasten ,screw
other two a dditional bolts which locates red bolt s howing as figure and notice that the direction of red arrow
on the electrica l box aligns the one on the panel.
2.Please connect step motor wire,display board wire to the electrical box according to ELECTRIC WIRING
DIAGRAM on the electrical box.
3.Then screw the other two M6*2 0 bolt with M10 gasket through the hole of panel into outdoor unit
4 4.Adjust t he location and direction of panel to tally louver of panel with outlet of outdoor,screw all the
bolts fasten to make the panel and outdoor unit Pressed to gether.
5.Return the air‐in grille and panel back to the outdoor unit.
21/ 113
