DC Inverter Air
Under ceilin g
Installation procedure

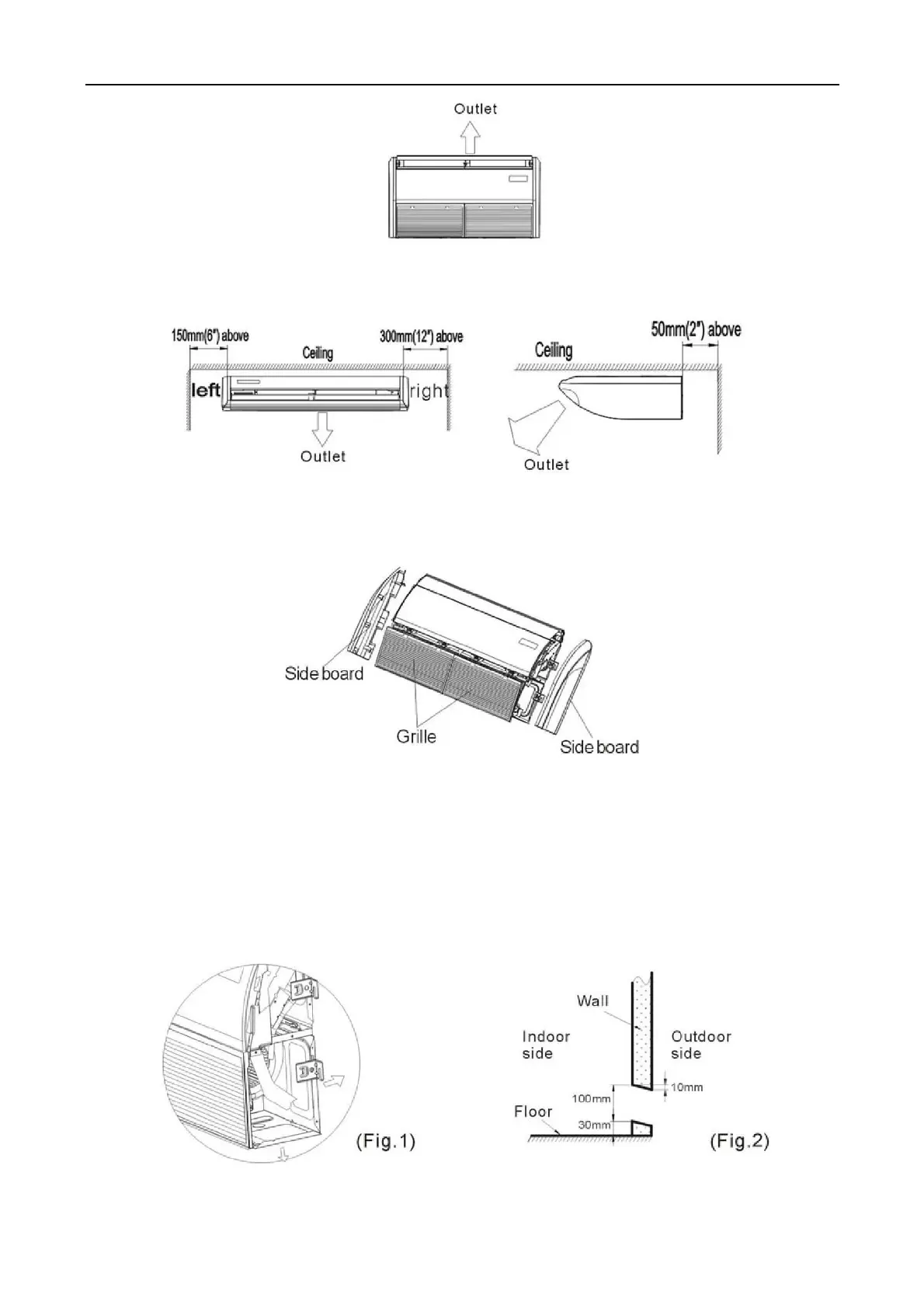

Please remove the grille and the side board.
2) FLOOR CONSOLE TYPE
1. Select the piping and drainage directions.
The piping and drain can be made in two directions as shown below(fig.1).
When the direction is selected,please drill a 100mm(4″)diameter hole on the wall,and the hole must be
tilted downward towards the outdoor for smooth water flow.When the pipe is led out from the rear,make a
hole in figure,at the position shown(fig.2).
