TCL TCA-60HRA/DV3O User Manual

DC Inverter Air
4) Description of Address DIP
a.Capacity of Outdoor Unit (Model DIP) (14) SW410
Model(HP)(BTU)(*100W)
SW410 （ 8‐1 ）
1
TCA‐36HRA/DV
0100 0000
2
TCA‐48HRA/DV3
0011 0000
3
TCA‐60HRA/DV3
0000 0000
Note: 1 –ON; 0 ‐ OFF.
b.Piping Length DIP of Outdoor Unit (20) SW411:
SW411（4——1 ）
1 Long
0000
piping
2 Short
0001
piping
Note: 1 –ON; 0 ‐ OFF.
c.Capacity of Outdoor Unit (Model DIP) (14) SW1
Model(HP)(BTU)(*100W)
SW 1 （ 4‐1 ）
1
TCA‐18HRA/DVO
1111
2
TCA‐24HRA/DVO
0111
3.3 TCA‐48/60HRA /DV3 Electric Control Box (ECB)

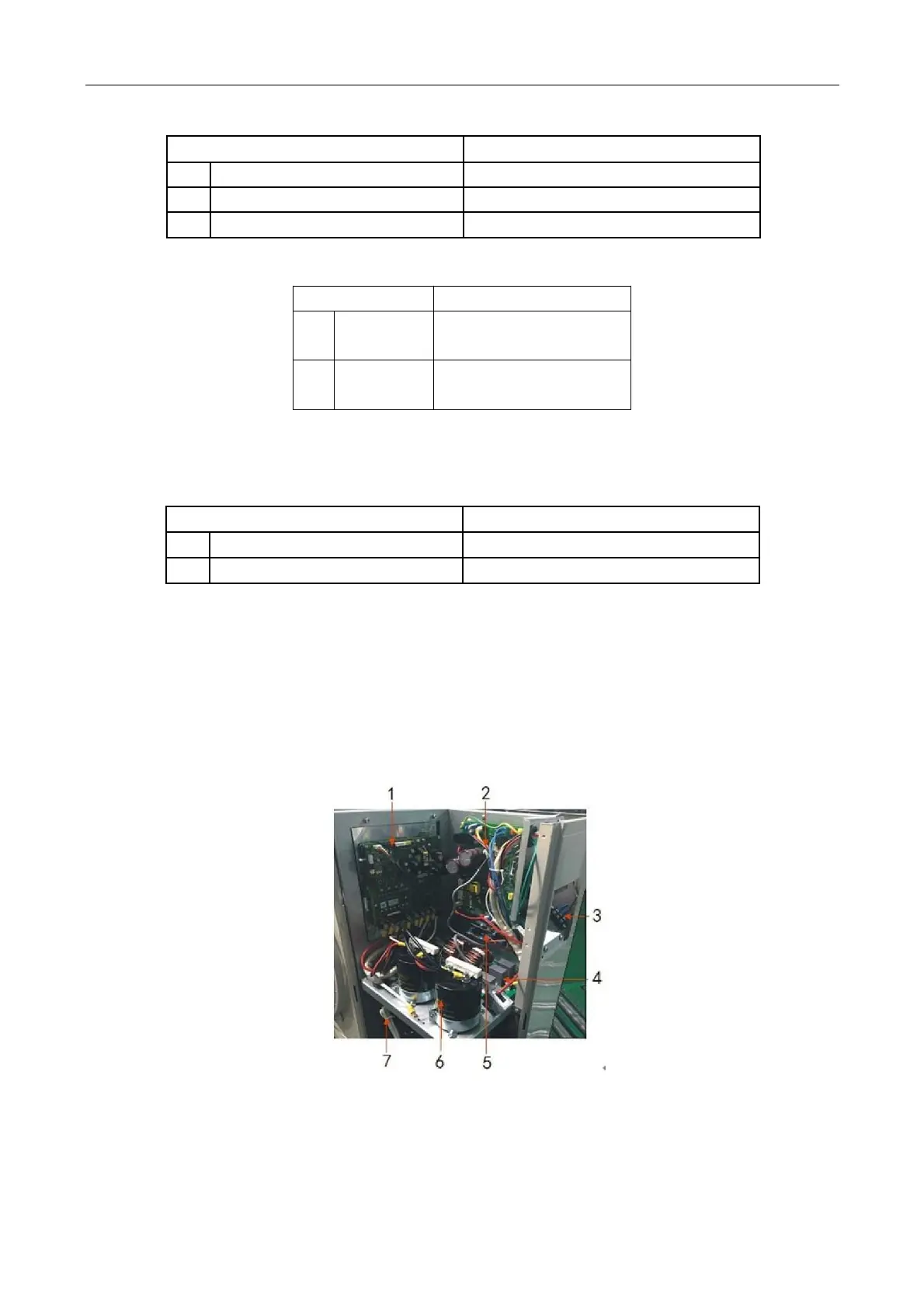

1) ECB Structure of Outdoor Unit
1— Compressor drive module of outdoor unit;
2— Main control panel of outdoor unit;
3— Power supply terminal block of outdoor unit;
89/ 113
