8. LOAD HANDLING SYSTEM
- 143 -

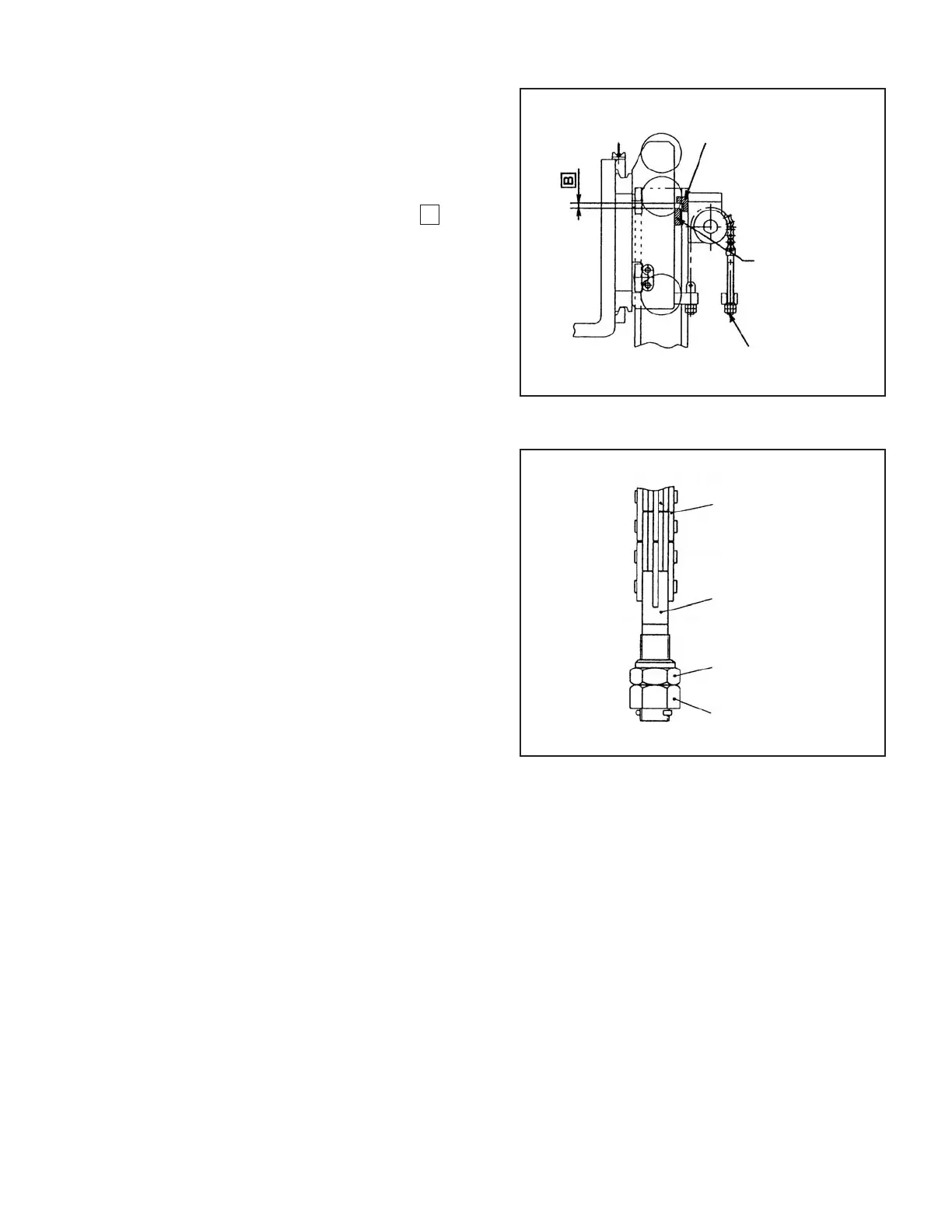

Fig. 8.11
Fig. 8.12
(3) Make sure that the clearance between the
carriage and the inner channel stoppers is 0 mm
when the fork is raised to the maximum lifting
height
Note 1: When the mast lifting height is over 4000
mm [157.5 in.], the dimension
B
is +50
mm [1.97 in.].
CHAIN ANCHOR
PIN AT MAST SIDE
LOCK NUT
(4) Adjust the tension of the right and left chains to
the same value with the chain anchor pin at the
mast side when the fork is at the bottom position
and the mast is tilted back all the way.
CHAIN
ANCHOR PIN
ADJUST NUT
INNER CHANNEL
STOPPER
CARRIAGE
STOPPER
