5.2.3 REASSEMBLING WHEEL BRAKE
(1) Applybrakeuidtothecupandpistonofthewheelcylinder.Installthespring,pistoncup,piston
and boot in this order.
(2) Install the wheel cylinder on the backing plate.
Tightening torque: 17.7 to 26.5 N-m {180 to 270 kgf-cm} [156.7 to 234.5 lbf-in.]
(3) Install the backing plate on the drive axle.
Tightening torque: 117.7 to 137.3 N-m {1200 to 1400 kgf-cm} [1042 to 1215 lbf-in.]

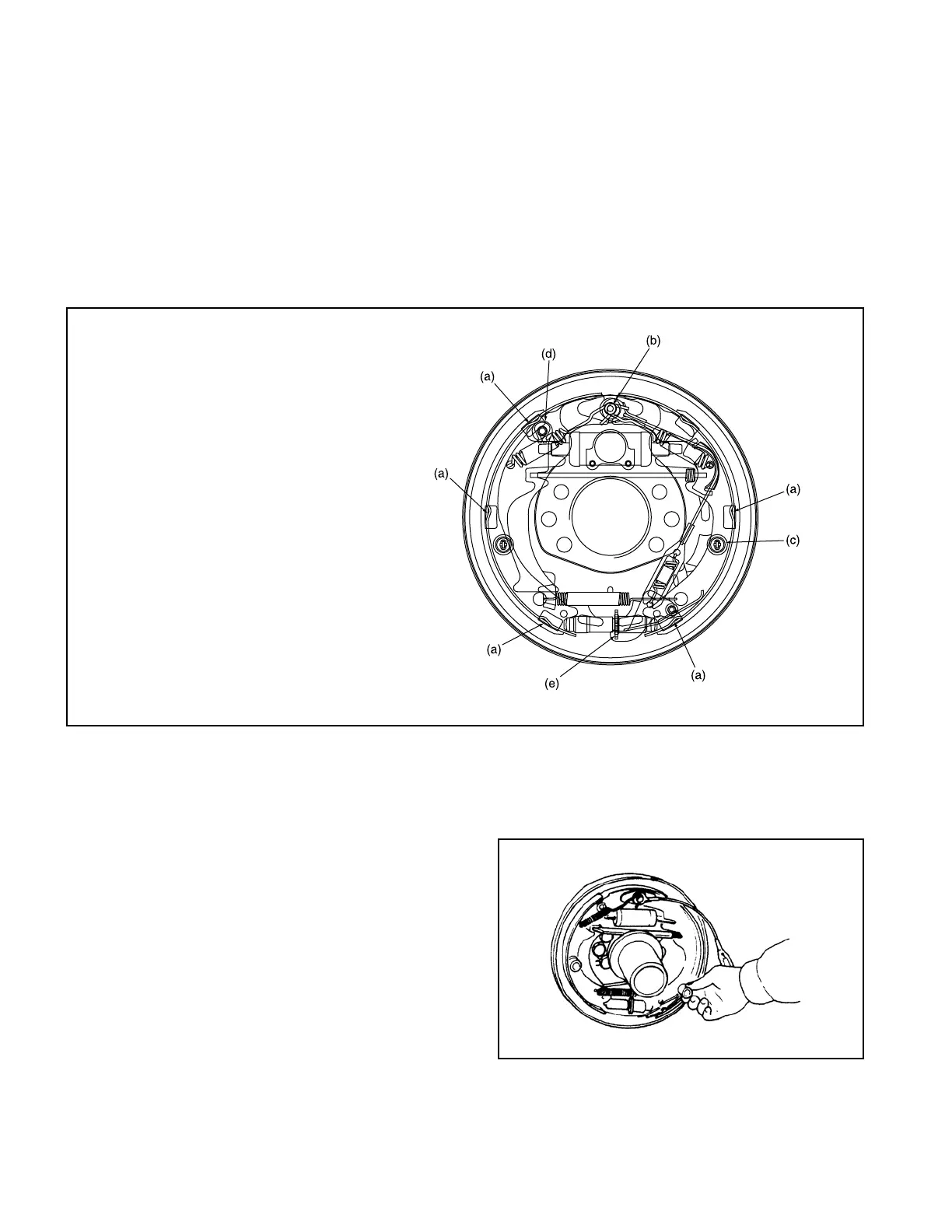

(4) Apply high-temperature grease to the points shown in Fig. 5.23, using caution to keep grease away
from the lining.
(a) Shoe contacting surface on the
backing plate
(b) Anchor pin
(c) Cable guide surface contacting
the adjuster cable
(d) Parking brake lever pin
(e) Threaded area of the adjuster
and the other rotation areas
(5) Install the parking brake cable with the E retainer.
(6) Install the shoe with the hold-down spring.
(7) Insert the spring into the strut and attach the strut to the shoe.
Fig. 5.24
Fig. 5.23
