5. BRAKE SYSTEM
- 75 -
(8) Install the shoe guide pin in the anchor pin, and
install the shoe return spring.
In this step, install the spring at first on the
primary side and then on the secondary side.
(9) Install the spring, adjuster, adjuster spring and
adjuster lever, paying attention to the following
items:
①
Install the adjuster in such a way that the left
screw is used for the left brake, and that the
right screw is used for the right brake.
②
Install the adjuster so that its teeth do not make
contact with the spring.
③
Install the return spring at the adjuster side, with
its longer hook attached to the adjuster lever
side.
④
After reassembling, check that the tip of the adjuster lever comes in contact with the adjuster teeth.
(10) Install the brake pipe on the wheel cylinder.
(11) Measure the inner diameter of the brake drum
and the outer diameter of the shoe. Adjust the
adjuster so that the outer diameter of the brake
shoe is “the inner diameter – 1.0 mm [0.0394
in.]”.

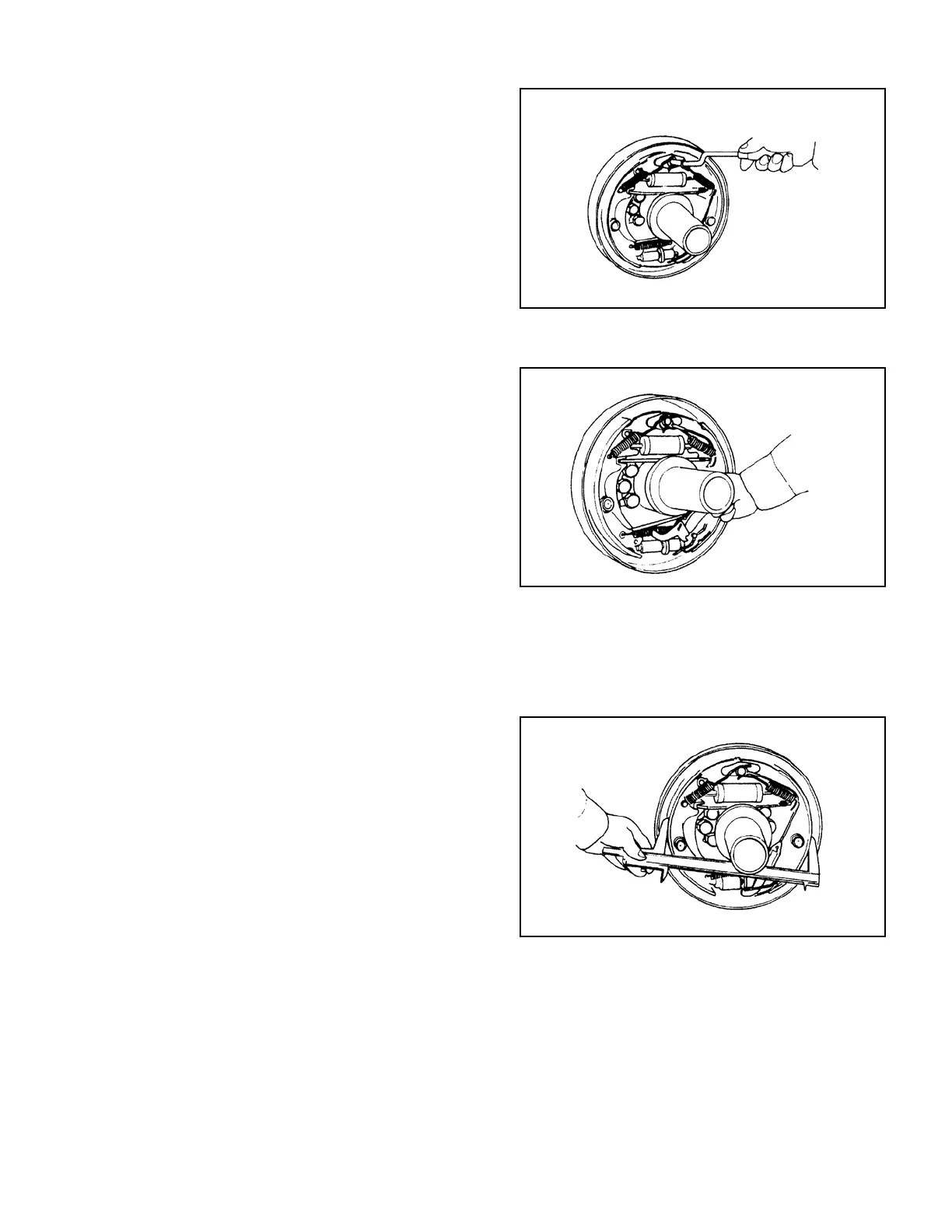

Fig. 5.25
Fig. 5.26
Fig. 5.27
