8. LOAD HANDLING SYSTEM
- 139 -
8.1.3 LOCATIONS OF ROLLERS
The end and side rollers are installed on the carriage.
The end rollers support longitudinal load and the side rollers support lateral load so that the inner
channel and carriage are raised and lowered smoothly.
LIFT CYLINDER
OUTER CHANNEL
INNER CHANNEL
SIDE ROLLER (adjust with shims)
CARRIAGE
END ROLLER (adjust with shims)
SLIPPER (adjust with shims)
Upper section Lower section
END ROLLER (adjust with shims)
END ROLLER (adjust with shims)

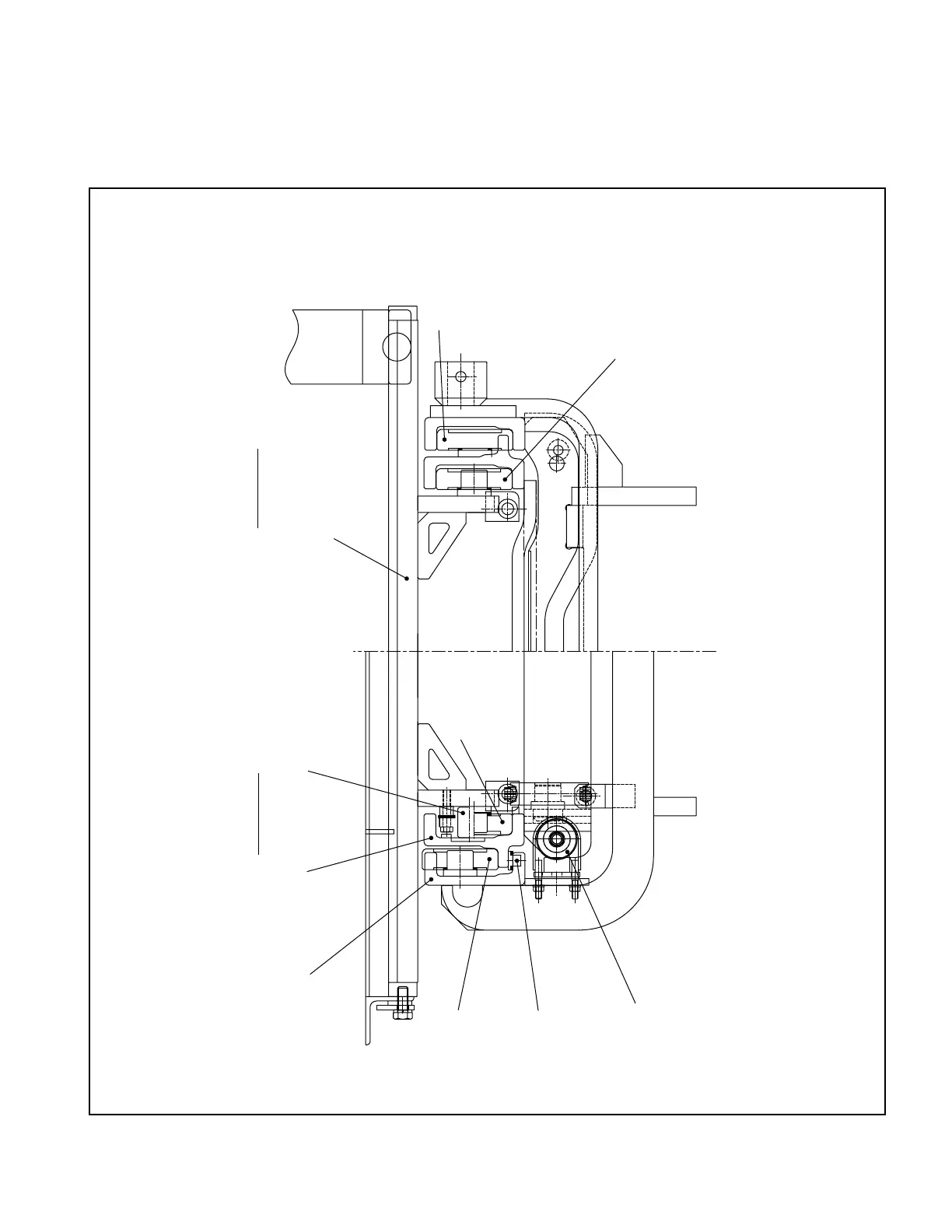

Fig. 8.6 Locations of Rollers (1- to 1.8-ton Trucks)
END ROLLER (adjust with shims)
