2.1.2 PUMP MOTOR
The pump motor is located on the left side frame and is used to drive the main pump.
Its rotation is controlled by the load handling chopper built in the speed controller only when the lift
lever is operated. Except that, the pump motor is used for starting or stopping the rotation of the main
pump.

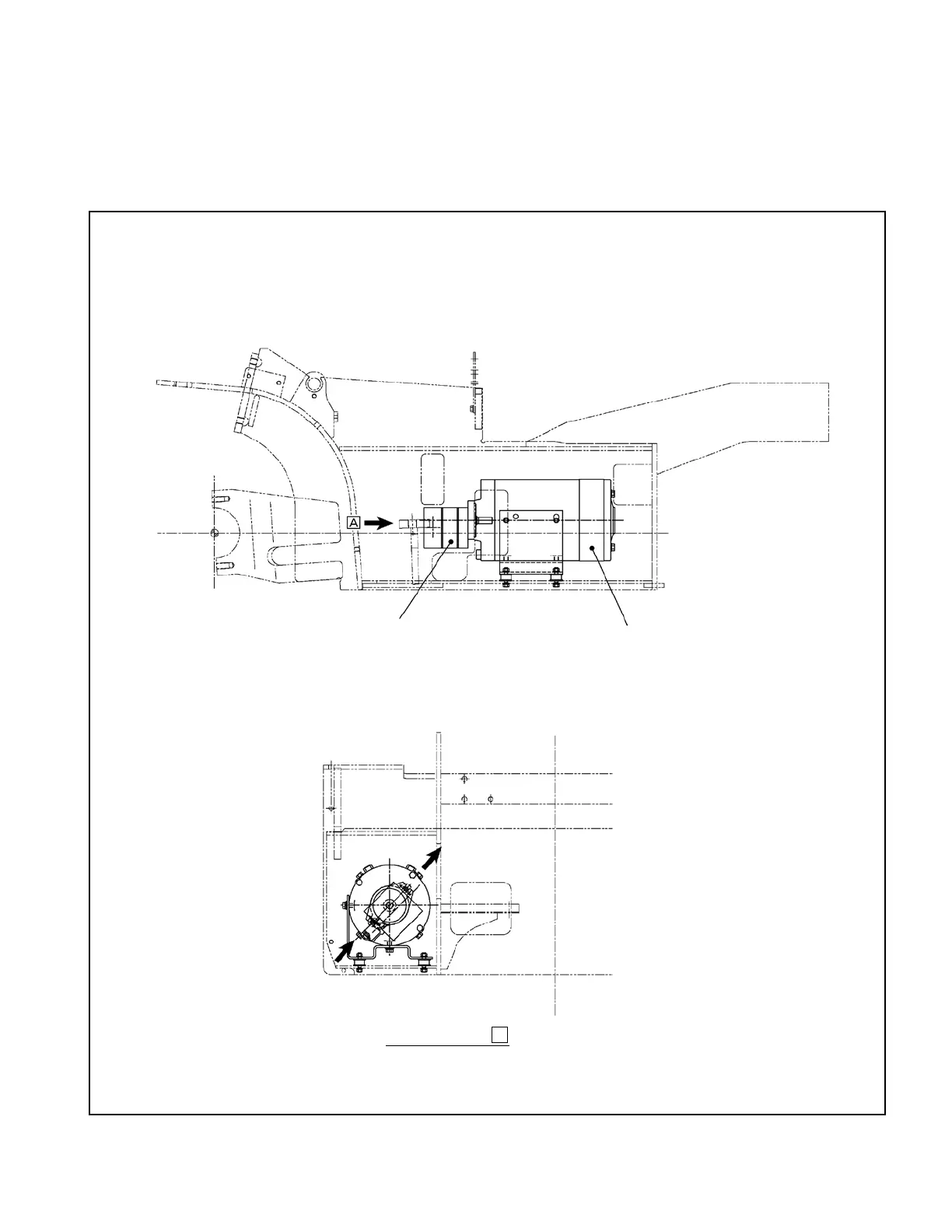

Fig. 2.6 Pump Motor
MAIN PUMP
PUMP MOTOR
Discharge
Suction
View looking from
A
