5.2 MAINTENANCE
This section describes the procedure for disassembling, reassembling and adjusting the wheel brake
and the procedure for adjusting the brake pedal, with the wheel brake and hub removed.
5.2.1 DISASSEMBLING WHEEL BRAKE
(1) Remove the shoe hold-down pin, adjuster lever,
adjuster and spring from the secondary shoe.

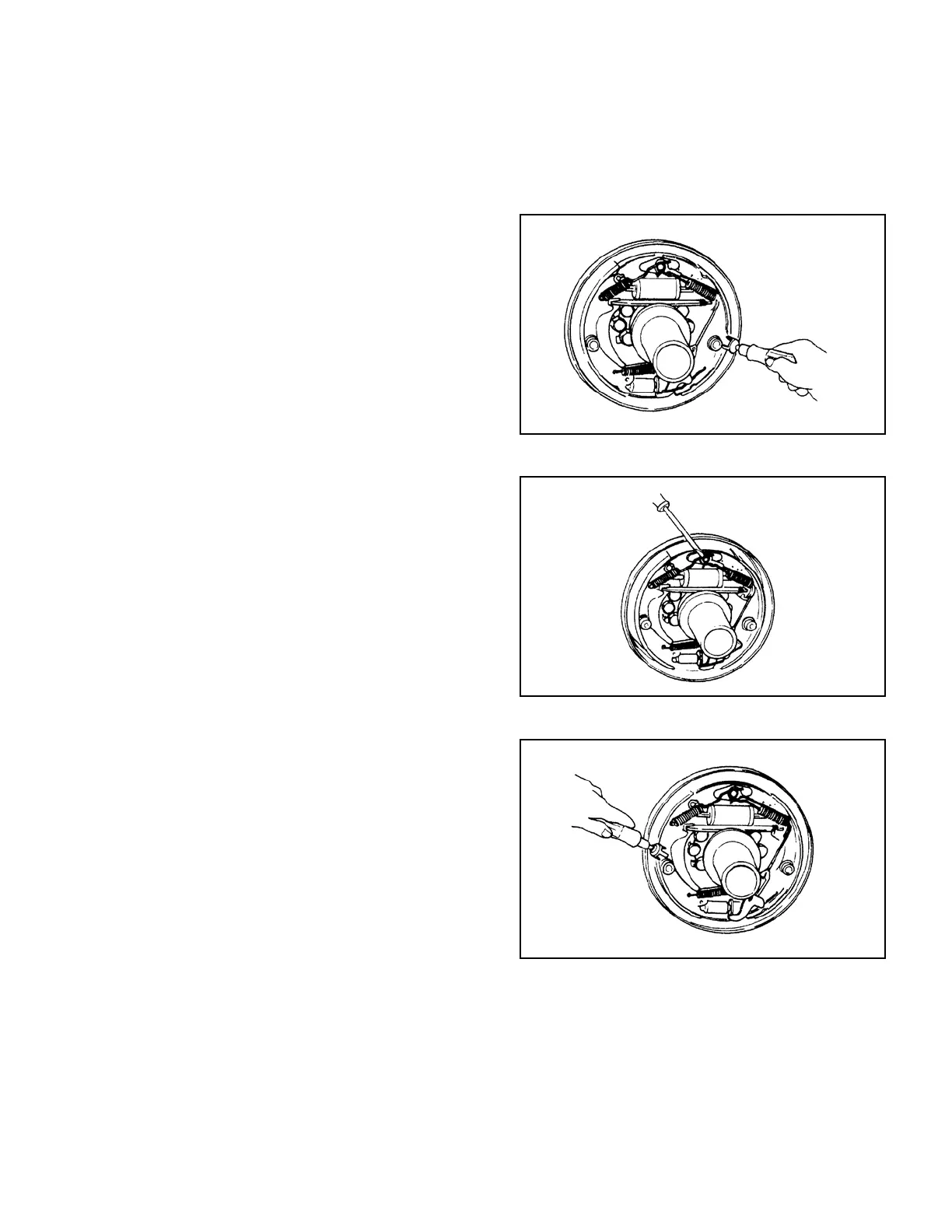

Fig. 5.13
Fig. 5.14
Fig. 5.15
(2) Remove the shoe return spring.
(3) Remove the shoe hold-down spring from the
primary side.
