8. LOAD HANDLING SYSTEM
- 147 -

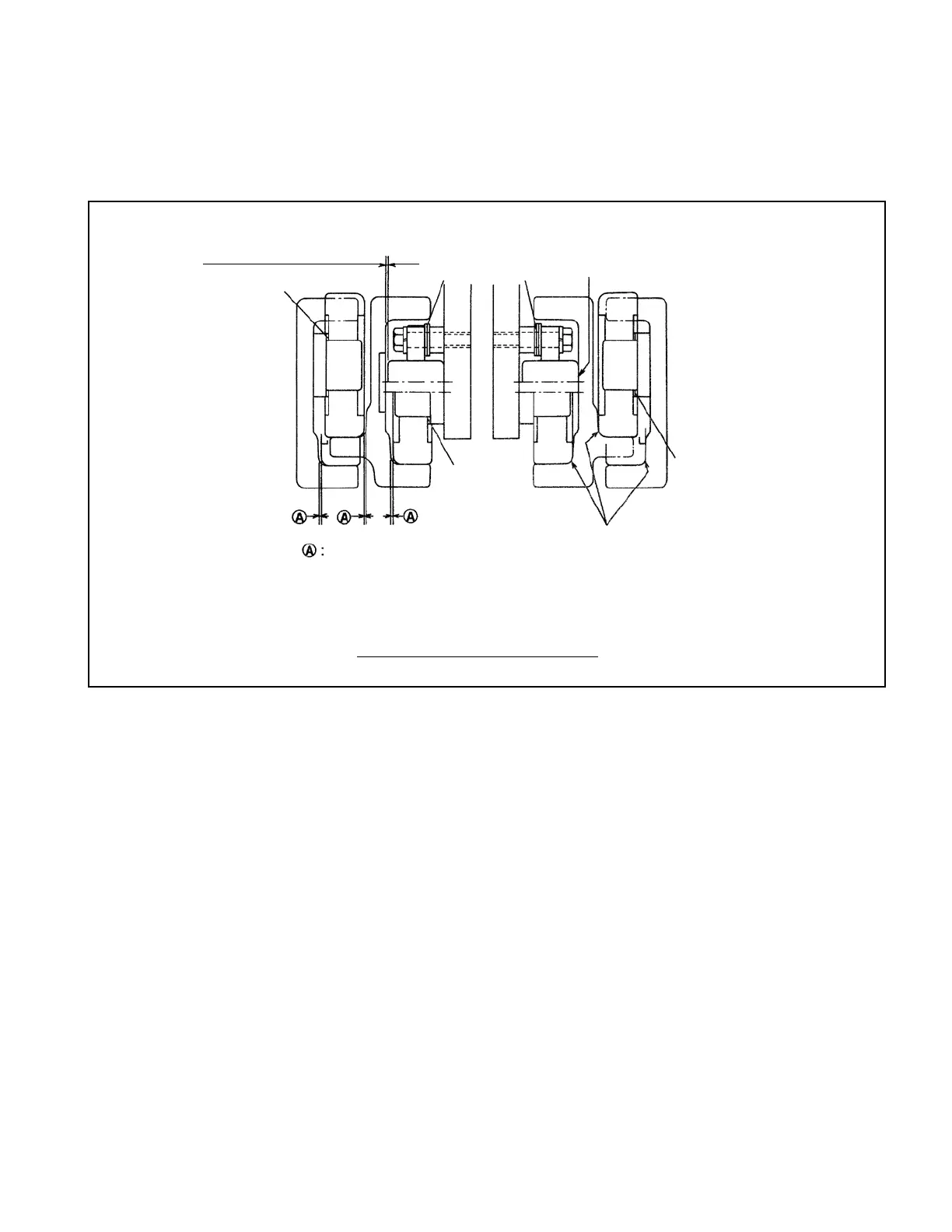

Fig. 8.20
0 to 0.5 mm at upper side
SHIM
Make contact
with one side.
0 to 0.5 mm [0 to 0.197 in.]
Note: Apply grease to the end roller contacting surface of each channel.
SHIM
SHIM
SHIM
SHIM
Make contact
with one side.
Procedure for Adding or Subtracting Shims
8.2.5 PROCEDURE FOR ADDING OR SUBTRACING SHIMS (excluding VM-77X)
Move the inner channel and carriage to one side of the outer channel. Measure the clearance between
the end roller at the opposite side and each channel.
Clearance between roller and channel: 0 to 0.5 mm [0 to 0.197 in.]
