6. STEERING SYSTEM
- 93 -
6.2.2 MAINTENANCE OF STEERING GEARBOX
(1) Disassembling the steering gearbox

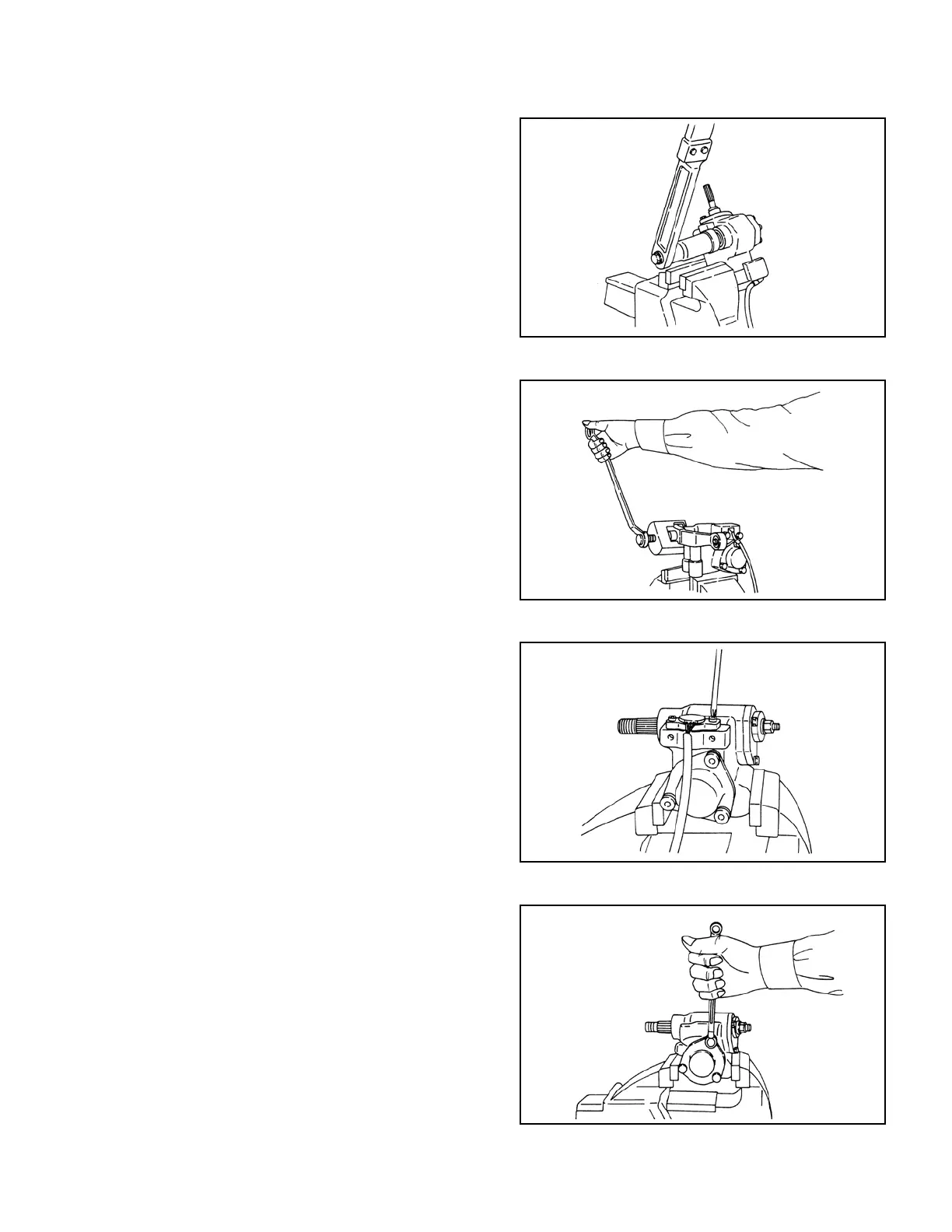

① Hold the pitman arm in a vise, and remove the
xing nut.
Fig. 6.24
Fig. 6.25
Fig. 6.26
Fig. 6.27
②
Move the pitman arm till the slit mark on the
end surface of the sector shaft faces down, then
hold the steering gear in a vise. Remove the
pitman arm, using a puller.
Note: Do not give any shock when removing the
pitman arm.
③ Remove the potentiometer cover. Then remove
the potentiometer.
Note: Be sure not to remove the potentiometer
unless necessary.
④ Remove the front cover.
