6. STEERING SYSTEM
- 83 -
Adjusting the position of the combination switch angle sensor
1. Put the rear wheels in the straight-ahead position.
2. Align the intersection of the two equal sides of a triangle formed by the three vortexes (
☆
) at the combination
switch side, with the front of the truck.
3. Engage the vertexes (
☆
) of the combination switch with the concaves (*) of the steering handwheel.

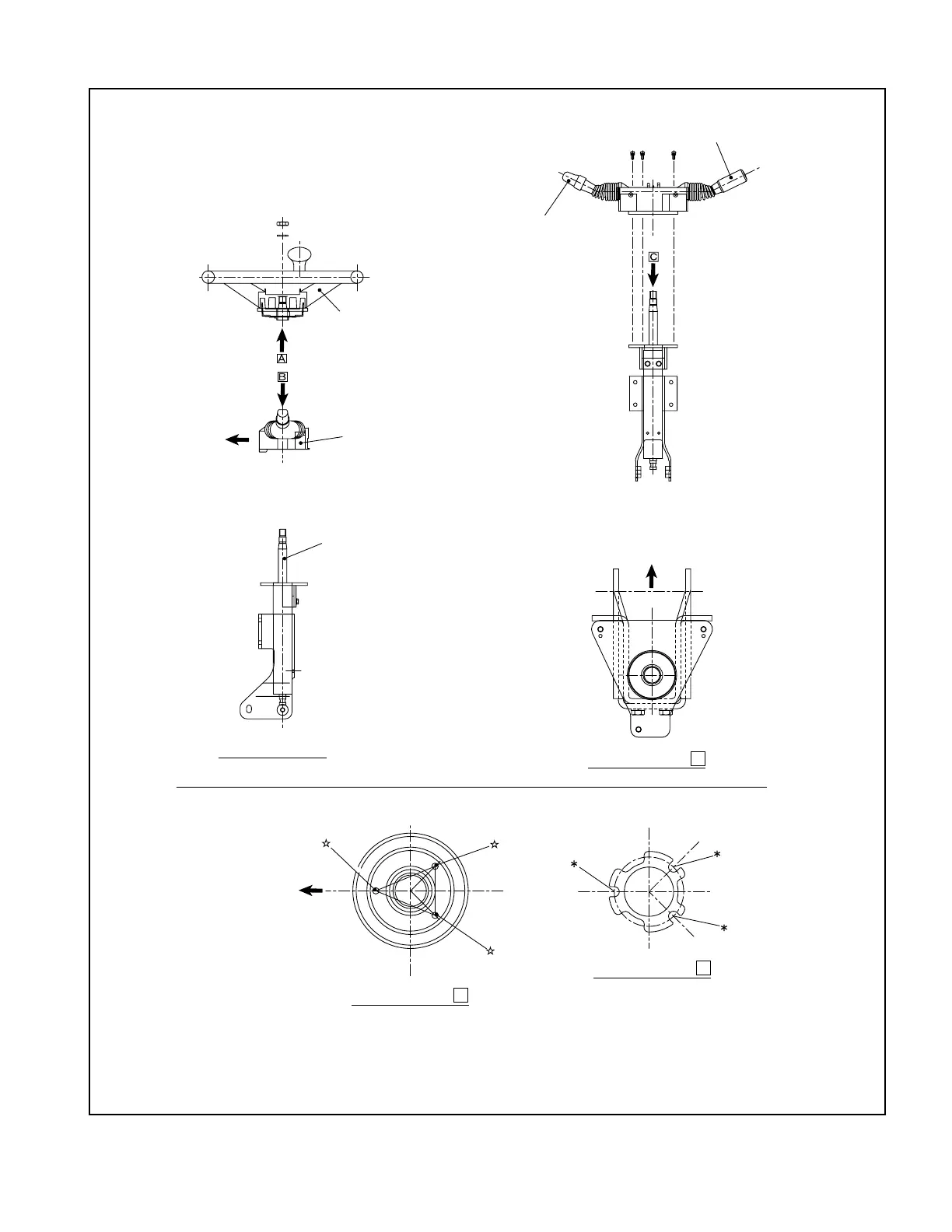

Fig. 6.4 Steering Handwheel
F/R LEVER
LIGHTING SWITCH
STEERING
HANDWHEEL
ASSEMBLY
Front of
the truck
COMBINATION
SWITCH ASSEMBLY
STEERING SHAFT
ASSEMBLY
Front of the truck
Front of the truck
Assembly drawing
View looking from
C
View looking from
A
View looking from
B
