TCM FB30-7 - Page 98

6. STEERING SYSTEM
- 86 -

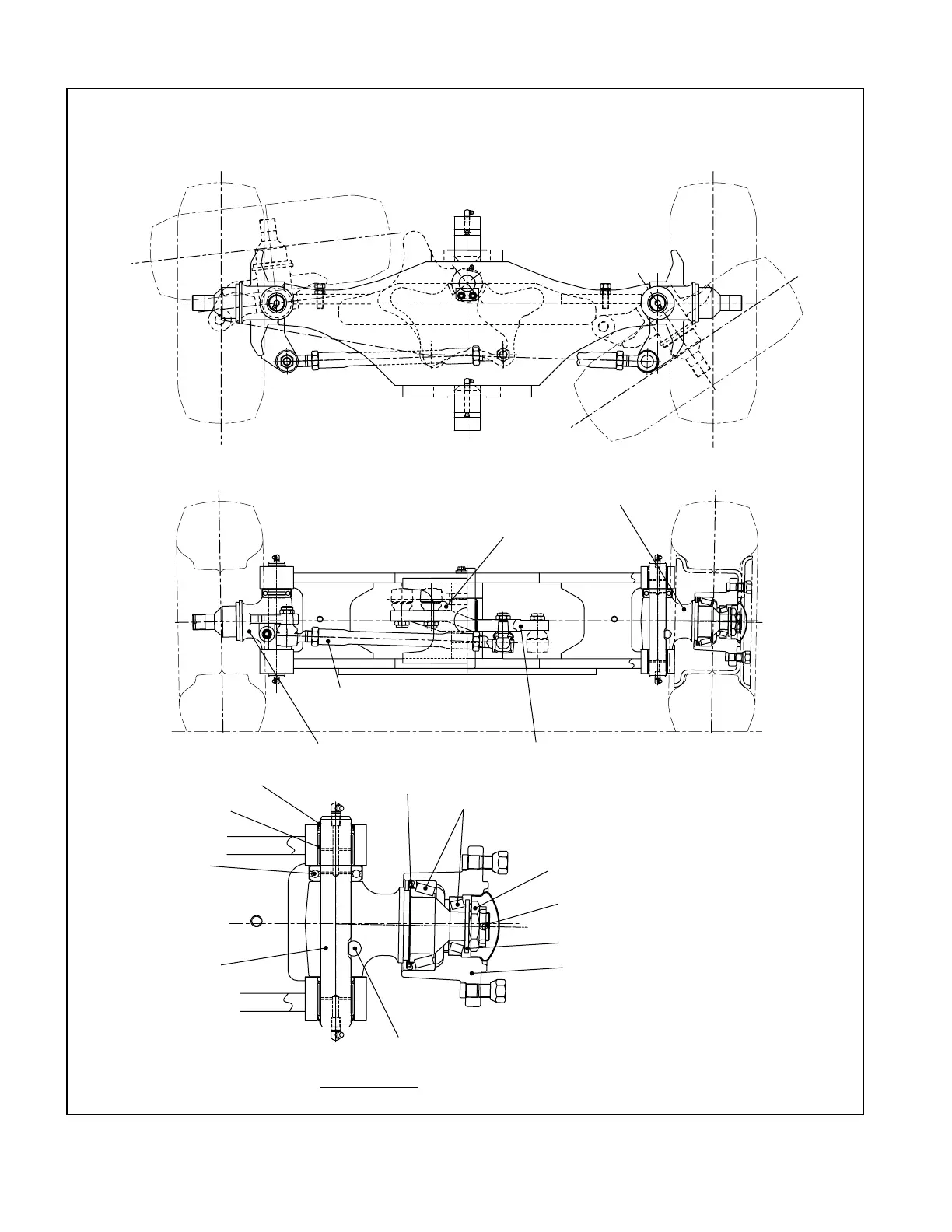

Fig. 6.7 Rear Axle (2- to 3.5-ton Trucks)
KNUCKLE (RIGHT)
TIE ROD (RIGHT)
TIE ROD (LEFT)
KNUCKLE (LEFT) CENTER ARM
OIL SEAL
NEEDLE
BEARING
THRUST
BEARING
KING PIN
OIL SEAL
TAPERED ROLLER BEARING
ADJUSTMENT NUT
COTTER PIN
WASHER
HUB
TAPER PIN
Detail of knuckle
