TDK-Lambda 802 Series - Figure 1. 802 L Front View

13
83488001 Revision N
4. INSTALLATION
4.1. 19-Inch Rack Mounting
This power supply is intended for mounting in a conventional 19-inch equipment rack. It’s
8.75 inch height makes it a “5U” size instrument. The rack should enclose the sides, top and
back to protect the operator from electrical shock and protect the supply from environmental
contamination.
Never install the 802 so its weight is supported only by the front panel
screws!
The 802 must never be installed without support in the back or sides of the unit. The 802
should be mounted on support rails or chassis slides –such as General Devices CTS-124- or
on a suitable shelf or supports inside the rack.
The mechanical outline of the 802 is shown in Figures1 through 3.

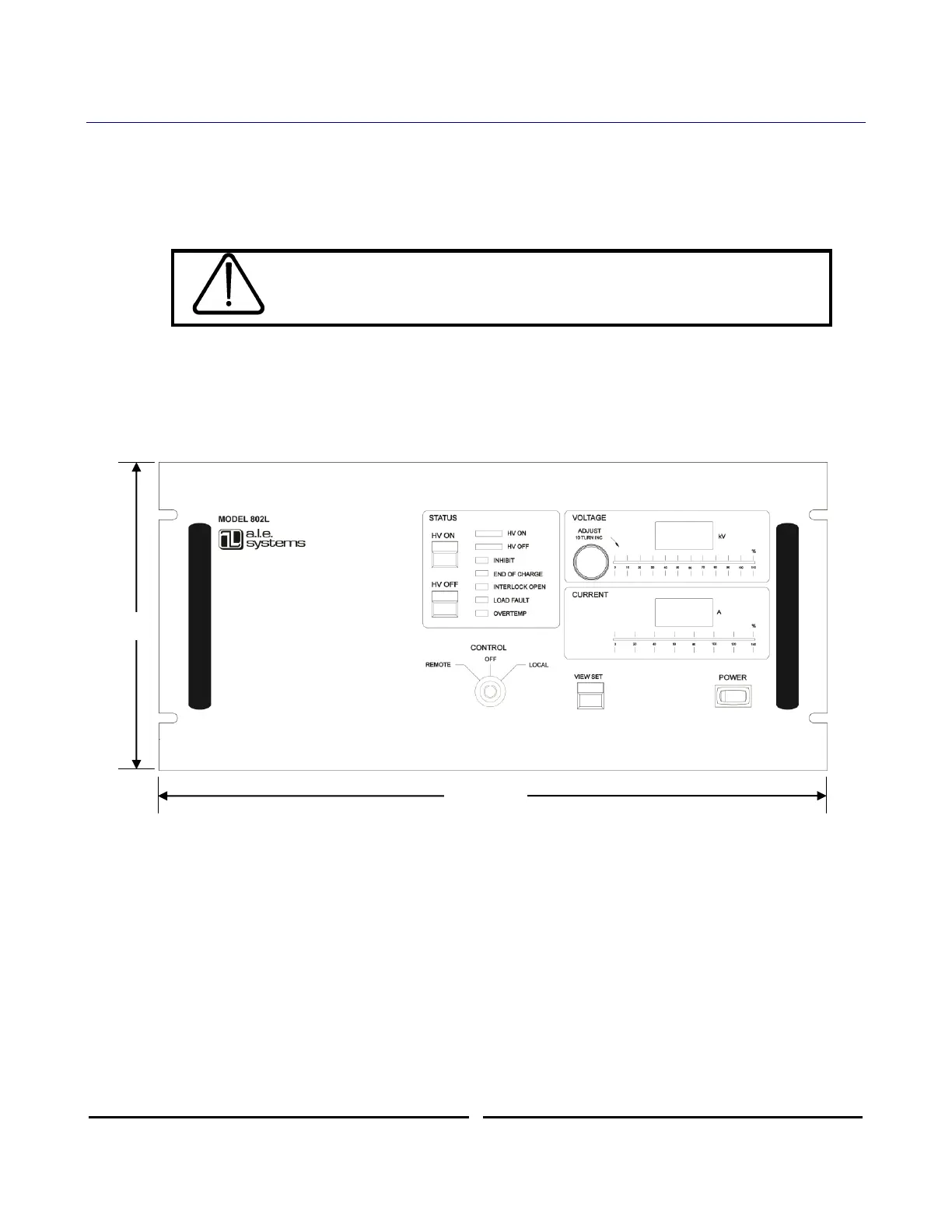

Figure 1. 802L Front View
8.72”
(222mm)
19” (483mm)
