5.18. REMOTE CONTROL CONNECTOR PIN DIAGRAM
Figure 11 shows a summary of the remote control signals on the connector labeled 4 in
Figure 5 through 8. The connector is a 25-pin sub D-type receptacle (female).

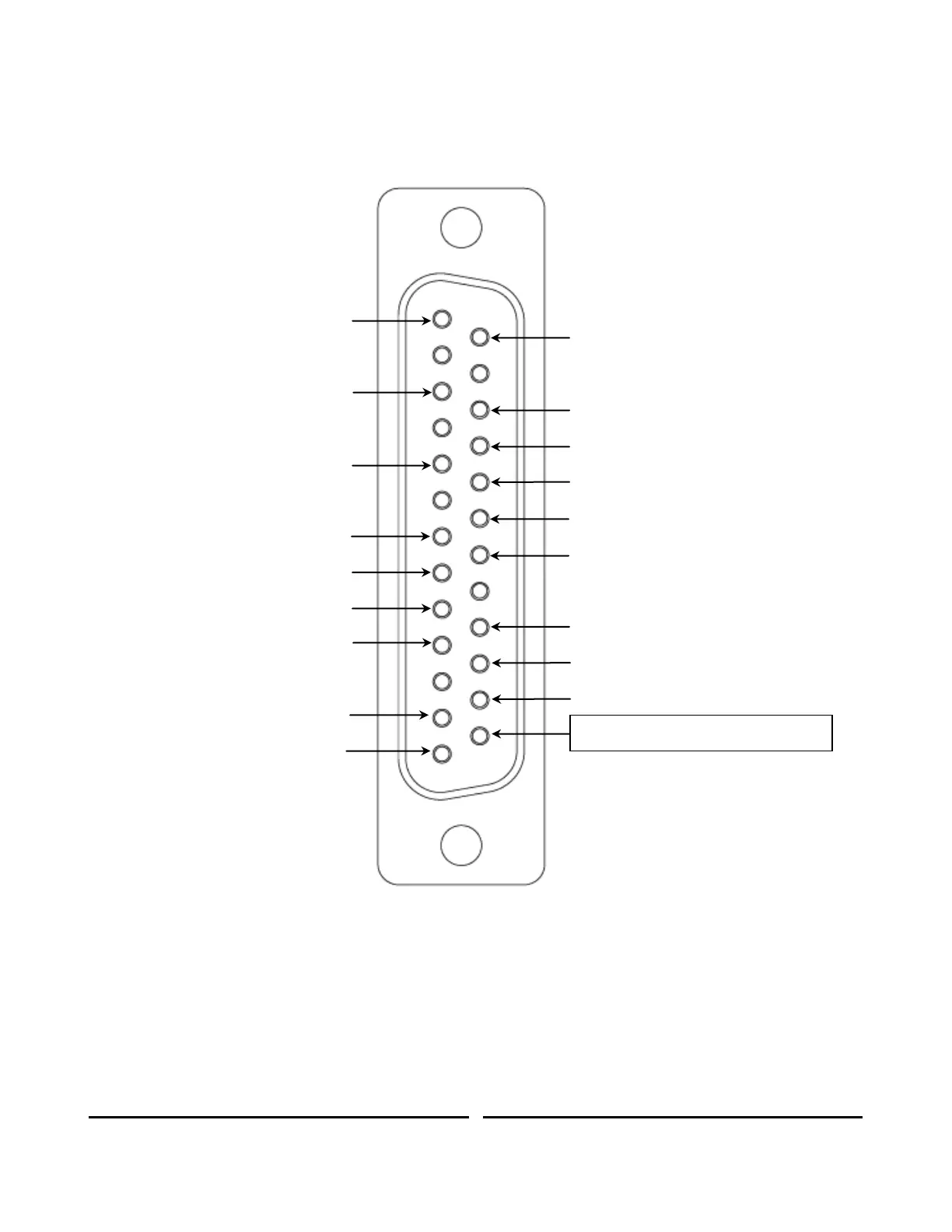

Figure 11 Remote Interface Connector and Signals.
Pin 1. Analog Out
Pin 3. Inhibit LED
Pin 5. End of Charge LED
Pin 7. Inhibit Input
Pin 8. HV On/Off
Pin 9. Peak output volts
Pin 10. HV On LED
Pin 12. GND
Pin 13. Charge current
Pin 14. +15V
Pin 16. Overtemp LED
Pin 17. Interlock LED
Pin 18. Load fault LED
Pin 19. Summary fault LED
Pin 20. Inhibit Input
Pin 22. Vprogram input
Pin 23. HV Off LED
Pin 24. GND
PIN 25, +12V Unfiltered
