6.4.3. Parallel system comprising 802S/OEM supplies
A system comprising only model 802S/OEM supplies must be operated from an
external control system. The control system should be connected using a pin-to-pin
ribbon or other cable that is ‘daisy chained’ to the REMOTE connector on each of the
802S/OEM supplies in the system. A sketch is shown in Figure 16.
To Optional Controller

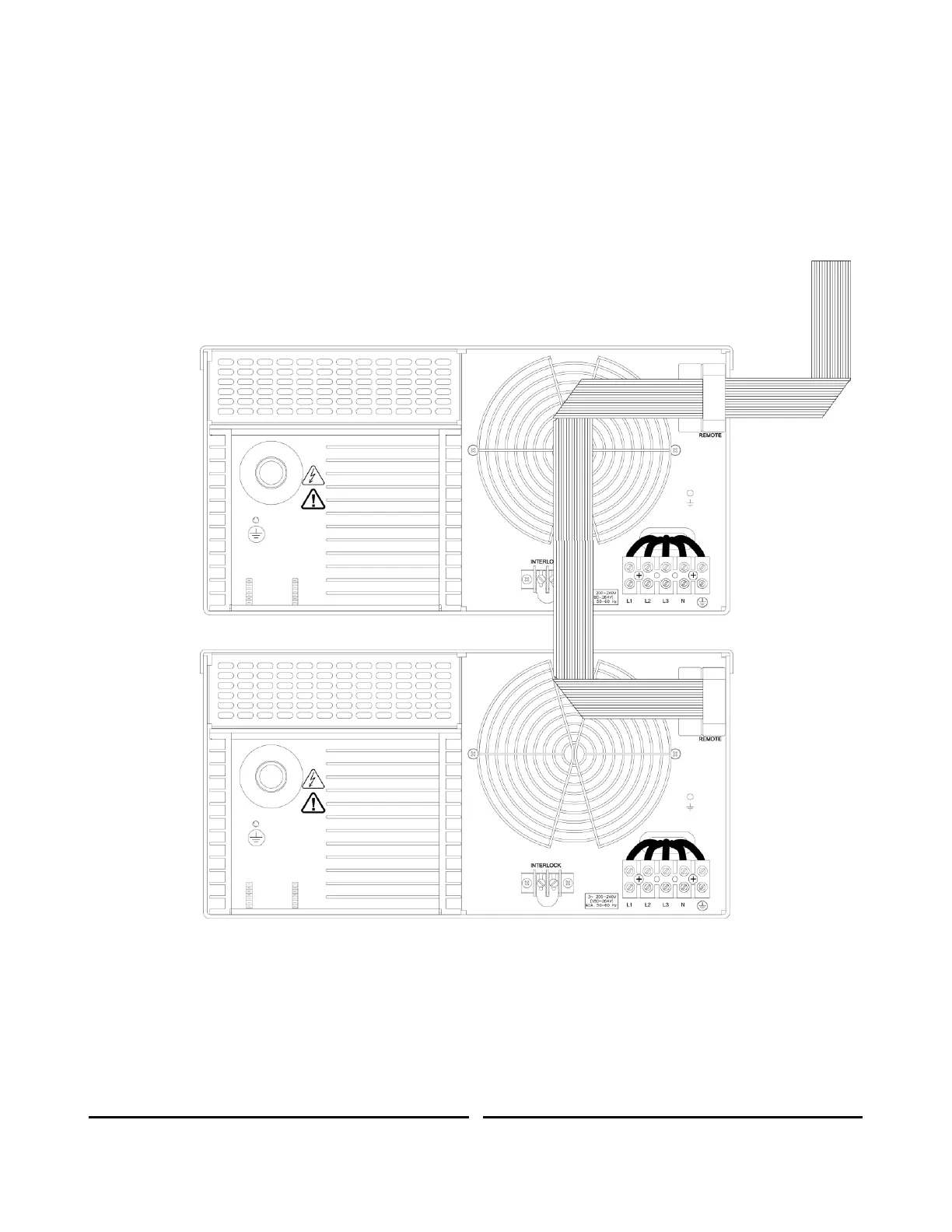

Figure 16 Parallel Operation Connections for 802S/OEM Supplies
