5.15. Rear Panel Layout (L Models)
All of the interconnect and HV connections for the 802L are located on the power supply rear
panel.

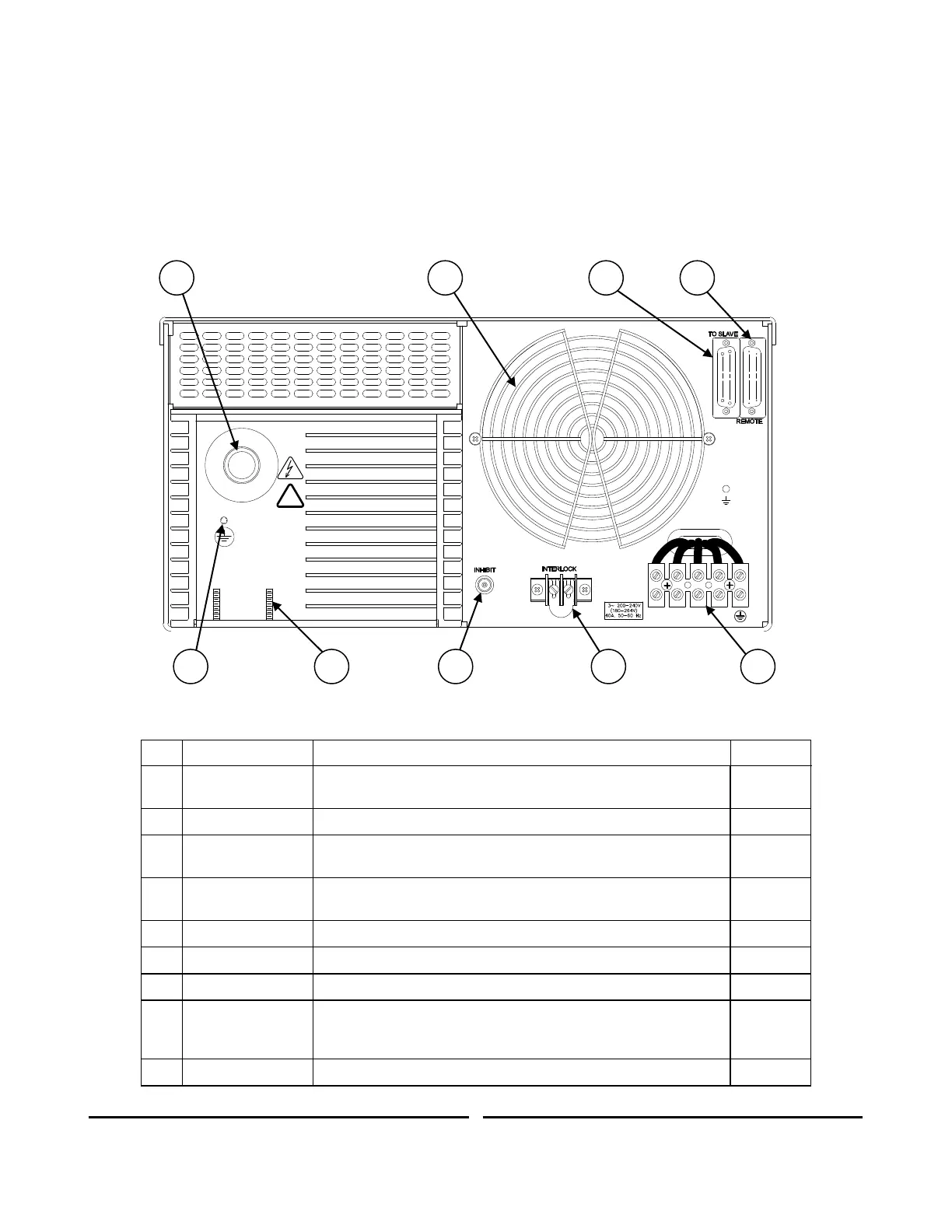

Figure 8 shows the rear panel layout and location of the various connectors.
Figure 8 802L Rear Panel Connections
REF
DESCRIPTION
NOTE
SECTION
1
HV Output
HV Output connector, mates with supplied cable via proprietary
connector
5.15.1
2
Cooling fan
Main AC cooling fan. Leave at least 4" clearance
5.15.2
3
Slave Interface
25pin male sub-D type plug for control of slave supplies in a
parallel system (AMPHENOL 17BDFRA25P)
5.15.3
4
Remote Interface
25pin sub-D type receptacle for remote control of supply in
remote mode (AMPHENOL 17BDFRA25S)
5.15.4
5
GND stud
10-32 UNC ground stud
5.15.5
6
GND stud
M5 ground stud (2 positions)
5.15.6
7
Inhibit input
BNC input to allow inhibit of output current
5.15.7
8
Interlock
Terminal for connection to interlock circuit. Contacts are isolated
from ground and require dry contact closure for supply to
operate.
5.15.8
9
AC Input
5 position terminal block for AC input power
5.15.9
1
3
4
2
!
L1 L2 L3 N
5
9
6
7
8
