36
83488001 Revision N
6.4.2. Parallel system comprising both 802L and 802S or OEM supplies
For a system comprising both 802L and S/OEM units, a single L model should be
operated as a master in either local or remote mode. The other parallel supplies can be
connected to the SLAVE 25-pin D-sub connector on the master unit rear panel (refer to
Figure 15). The SLAVE control cable can be a pin-to-pin ribbon or other cable that is
‘daisy chained’ to the REMOTE connector on each of the SLAVE supplies.
To Optional Controller

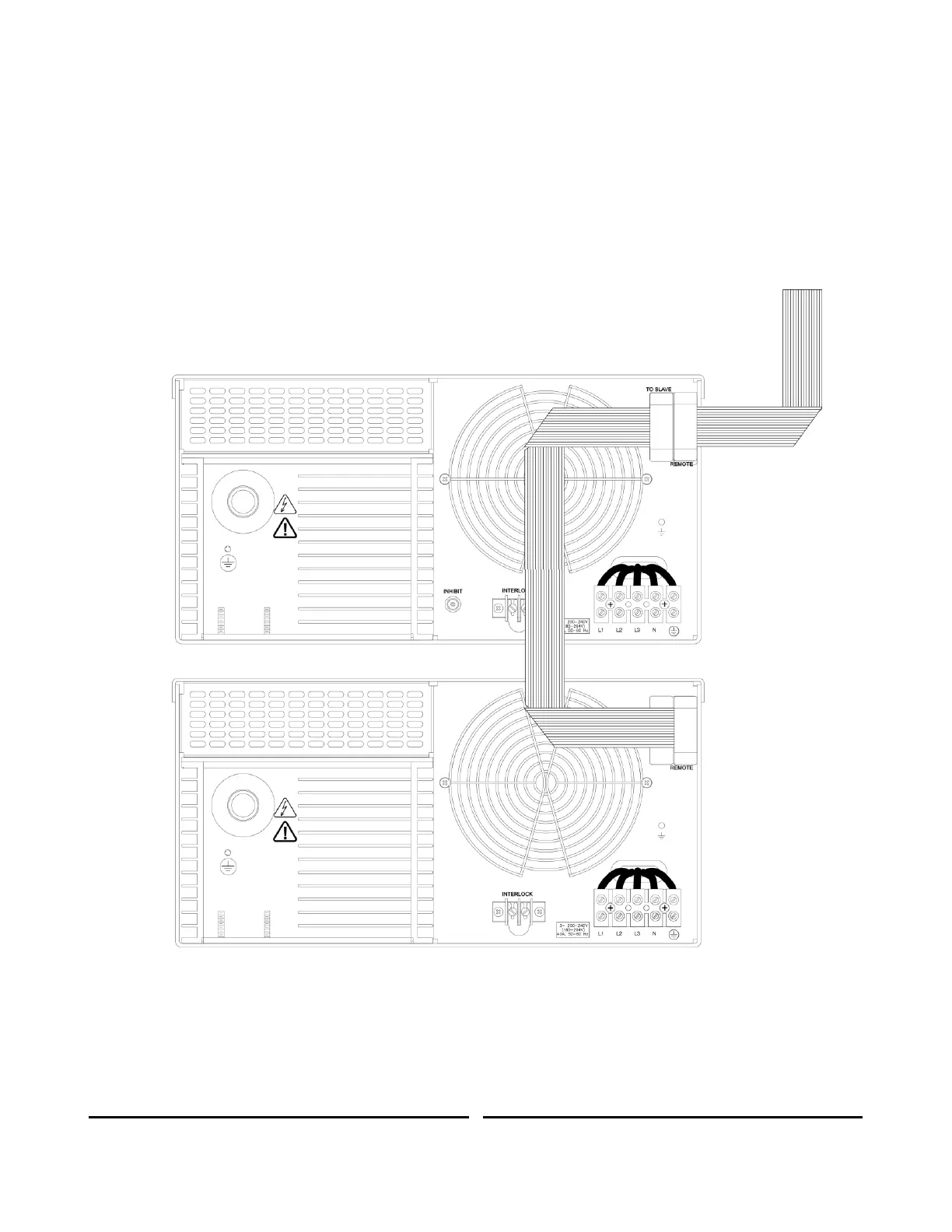

Figure 15 802L and 802S/OEM Parallel System control Connections.
