Teac A-3300S - Specifications and Optional Accessories.26

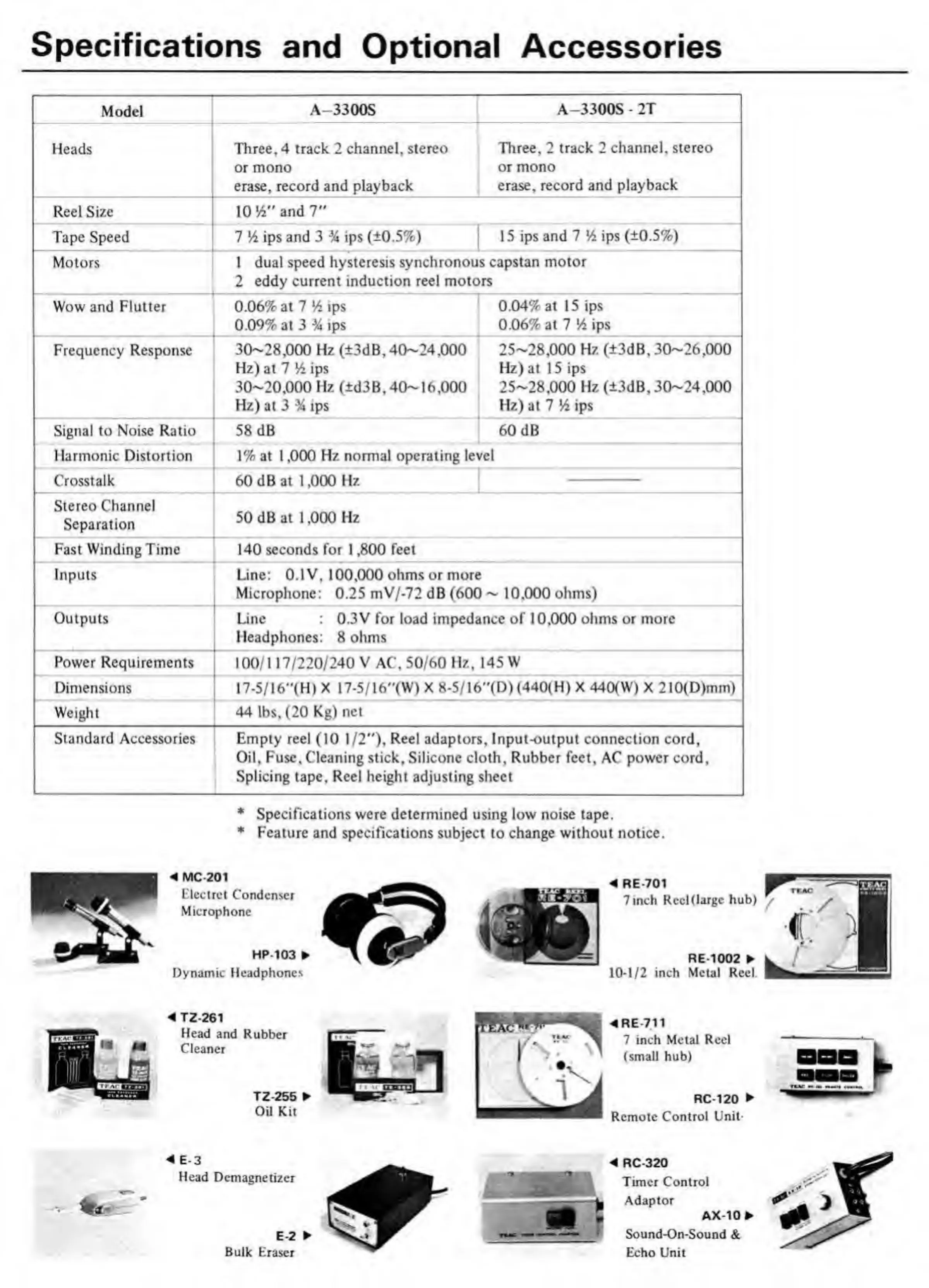

Specifications and Optional Accessories
Model
A-3300S
A-3300S - 2T
Heads
|
Reel Size
Three, 4 track 2 channel, stereo
or mono
erase, record and playback
10 W' and 7"
Three, 2 track 2 channel, stereo
or mono
erase, record and playback
Tape Speed 7 A ips and 3 % ips (±0.5%)
15 ips and 7 A ips (±0.5%)
Motors
w
1 dual speed hysteresis synchronous capstan motor
2 eddy current induction reel motors
Wow and Flutter
0.06% at 7 Vi ips 1
0.09% at 3 % ips
0.04% at 15 ips
0.06% at 7 ‘/4 ips
Frequency Response 30—28,000 Hz (±3dB, 40~24,000
Hz) at 7 Vi ips
30-20,000 Hz (±d3B, 40-16,000
Hz) at 3 % ips
25-28,000 Hz (±3dB, 30-26,000
Hz) at 15 ips
25-28.000 Hz (±3dB, 30-24,000
Hz) at 7 £ ips
Signal to Noise Ratio
58 dB 60 dB
Harmonic Distortion 1% at 1,000 Hz normal operating level
Crosstalk
60 dB at 1,000 Hz
1 ■ |
Stereo Channel
Separation
50 dB at 1,000 Hz
Fast Winding Time 140 seconds for 1,800 feet
Inputs Line: 0.1V, 100,000 ohms or more
Microphone: 0.25 mV/-72 dB (600 ~ 10,000 ohms)
Outputs Line : 0.3V for load impedance of 10,000 ohms or more
Headphones: 8 ohms
___ _ m ■ - — — _
Power Requirements
100/117/220/240 V AC, 50/60 Hz, 145 W
Dimensions 17-5/16"(H) X 17-5/16"(W) X 8-5/16"(D) (440(H) X 440(W) X 210(D)mm)
Weight
44 lbs, (20 Kg) net
Standard Accessories
Empty reel (10 1/2"), Reel adaptors, Input-output connection cord,
Oil, Fuse, Cleaning stick, Silicone cloth, Rubber feet, AC power cord.
Splicing tape, Reel height adjusting sheet
* Specifications were determined using low noise tape.
* Feature and specifications subject to change without notice.
4 MC 201
Electrct Condenser
Microphone
HP-103 ►
Dynamic Headphones
4 RE-701
7 inch Reel (large hub)
RE-1002 ►
10-1/2 inch Metal Reel
4 TZ-261
Head and Rubber
Cleaner
TZ-255 ►
Oil Kit
4 RE-711
7 inch Metal Reel
(small hub)
RC-120 ►
Remote Control Unit-
4 E-3
Head Demagnetize
E 2 ►
Hulk Eraser
◄ RC-320
Timer Control
Adaptor
AX-10 ►
Sound-On-Sound &
Echo Unit
