Teac A-3300S - Connections; Output and Line In Pincord Jacks

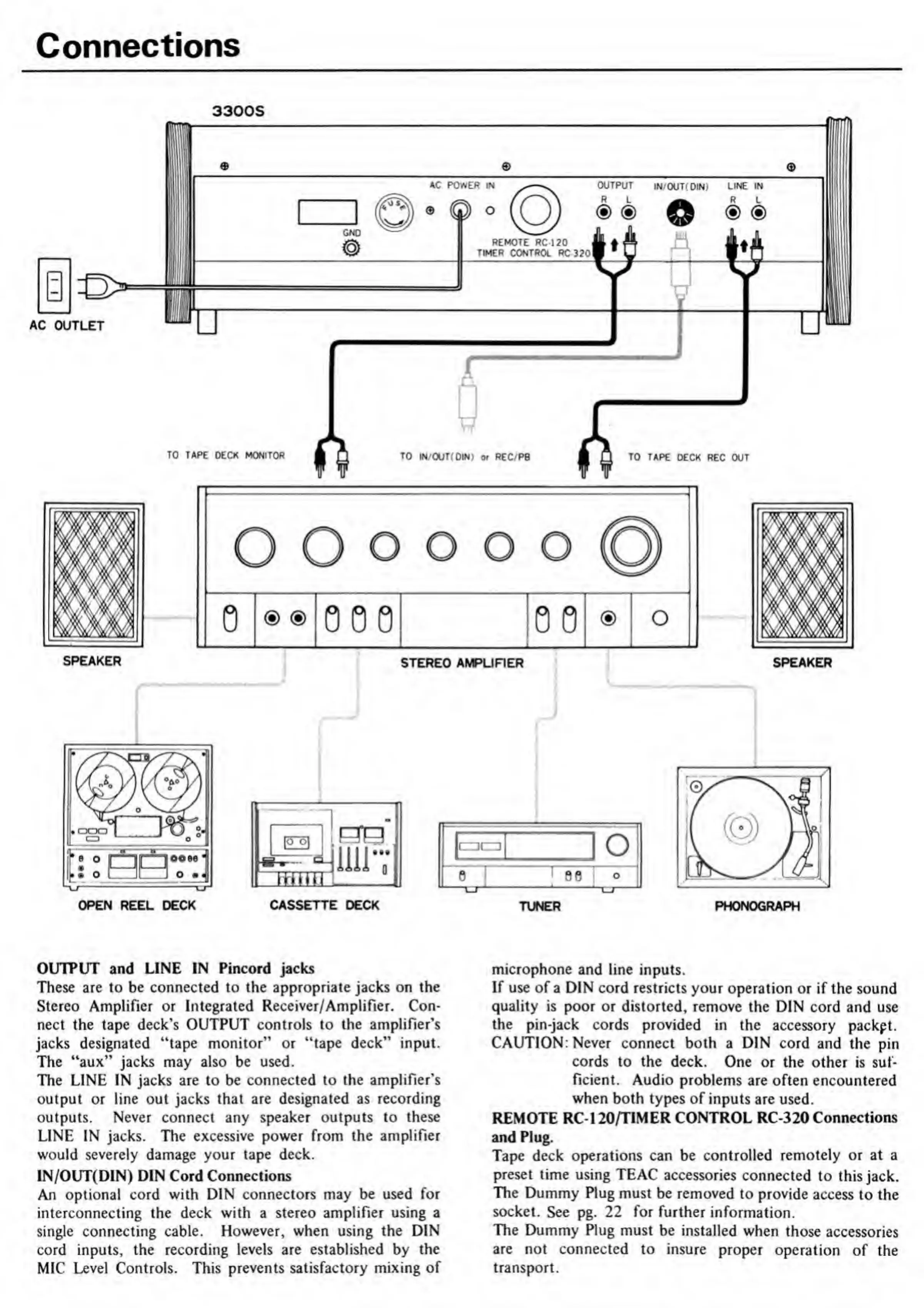

Connections
3300S
■
©
©
GNO
AC POWER IN
o
REMOTE RC120 Aft 4
TIMER CONTROL RC 320 ™ B
AC OUTLET
TO TAPE OECK MONITOR
IN/0UT(DIN) LINE IN
R L
©
-
TO IN/OUT( DIN) or REC/PB
TO TAPE DECK REC OUT
o o o
0
® ®
000
00
®
o
n
SPEAKER
STEREO AMPURER SPEAKER
II
CZUdZ)
lo
II 0 ! 00 1
o
“O-“
OPEN REEL DECK CASSETTE DECK
TUNER
OUTPUT and LINE IN Pincord jacks
These are to be connected to the appropriate jacks on the
Stereo Amplifier or Integrated Receiver/Amplifier. Con¬
nect the tape deck's OUTPUT controls to the amplifier's
jacks designated “tape monitor'' or “tape deck" input.
The “aux” jacks may also be used.
The LINE IN jacks are to be connected to the amplifier's
output or line out jacks that are designated as recording
outputs. Never connect any speaker outputs to these
LINE IN jacks. The excessive power from the amplifier
would severely damage your tape deck.
IN/OUT(DIN) DIN Cord Connections
An optional cord with DIN connectors may be used for
interconnecting the deck with a stereo amplifier using a
single connecting cable. However, when using the DIN
cord inputs, the recording levels are established by the
MIC Level Controls. This prevents satisfactory mixing of
microphone and line inputs.
If use of a DIN cord restricts your operation or if the sound
quality is poor or distorted, remove the DIN cord and use
the pin-jack cords provided in the accessory packet.
CAUTION: Never connect both a DIN cord and the pin
cords to the deck. One or the other is suf¬
ficient. Audio problems are often encountered
when both types of inputs are used.
REMOTE RC-120/TIMER CONTROL RC-320 Connections
and Plug.
Tape deck operations can be controlled remotely or at a
preset time using TEAC accessories connected to this jack.
The Dummy Plug must be removed to provide access to the
socket. See pg. 22 for further information.
The Dummy Plug must be installed when those accessories
are not connected to insure proper operation of the
transport.
