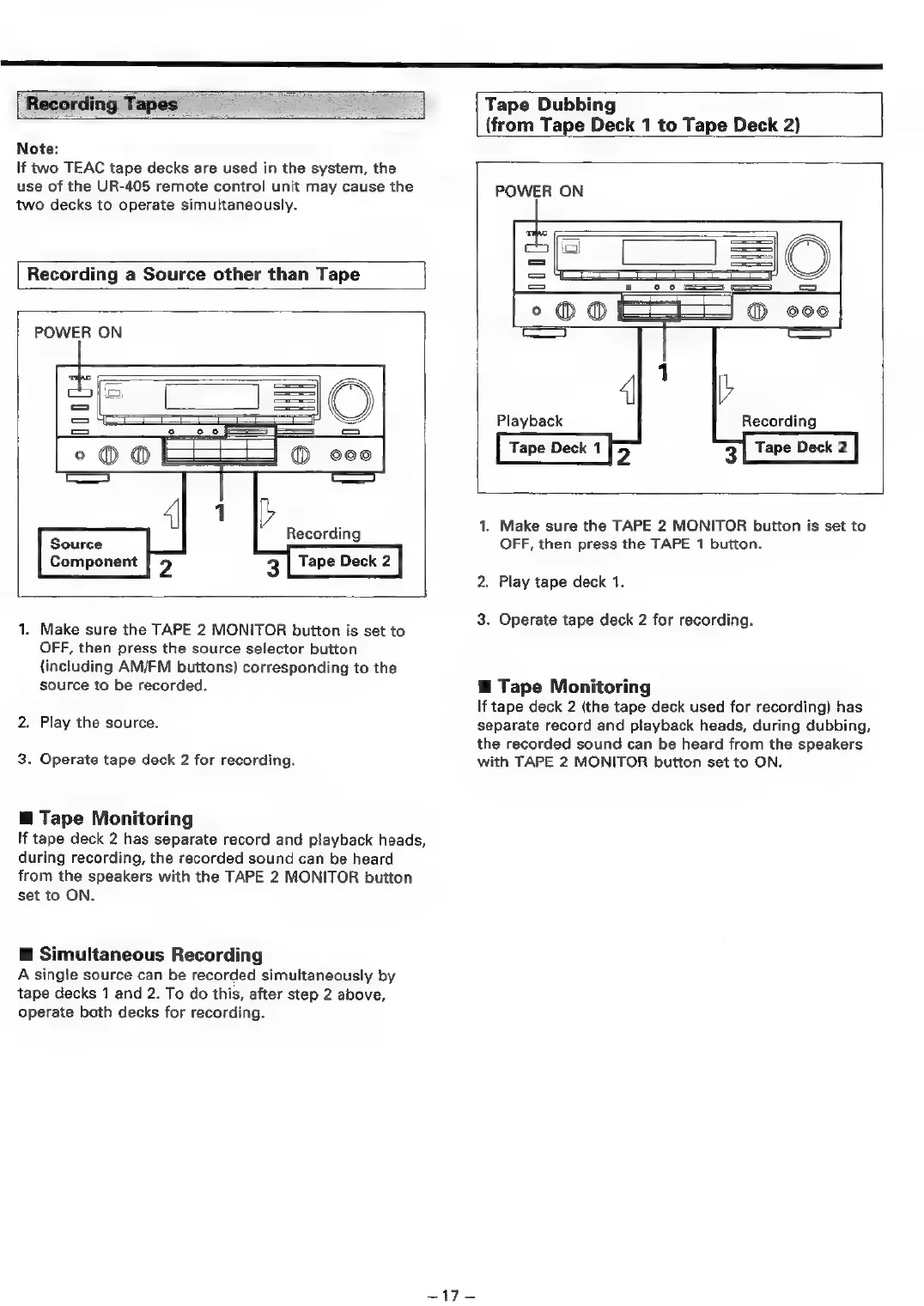

Teac AG-V3050 - Recording Tapes; Recording a Source Other than Tape; Tape Dubbing (from Tape Deck 1 to Tape Deck 2)

Recording Tapes
Note:
If two TEAC tape decks are used in the system, the
use of the UR-405 remote control unit may cause the
two decks to operate simultaneously.
Recording a Source other than Tape
POWER ON
= = Or
= YZ
= rer) =
°O®
@
coo
cares
4] 1
Recording
Source
Component 2 3 Tape Deck 2
1. Make sure the TAPE 2 MONITOR button is set to
OFF, then press the source selector button
(including AM/FM buttons) corresponding to the
source to be recorded.
2. Play the source.
3. Operate tape deck 2 for recording.
@ Tape Monitoring
If tape deck 2 has separate record and playback heads,
during recording, the recorded sound can be heard
from the speakers with the TAPE 2 MONITOR button
set to ON.
m@ Simultaneous Recording
A single source can be recorded simultaneously by
tape decks 1 and 2. To do this, after step 2 above,
operate both decks for recording.
Tape Dubbing
(from Tape Deck 1 to Tape Deck 2)
POWER ON
=e 230
O° 0 Sess
°o@@® @®M ooo
_—
4" ip
Playback Recording
Tape Deck 1 2 3 Tape Deck 2
1. Make sure the TAPE 2 MONITOR button is set to
OFF, then press the TAPE 1 button.
2. Play tape deck 1.
3. Operate tape deck 2 for recording.
M Tape Monitoring
If tape deck 2 (the tape deck used for recording) has
separate record and playback heads, during dubbing,
the recorded sound can be heard from the speakers
with TAPE 2 MONITOR button set to ON.
