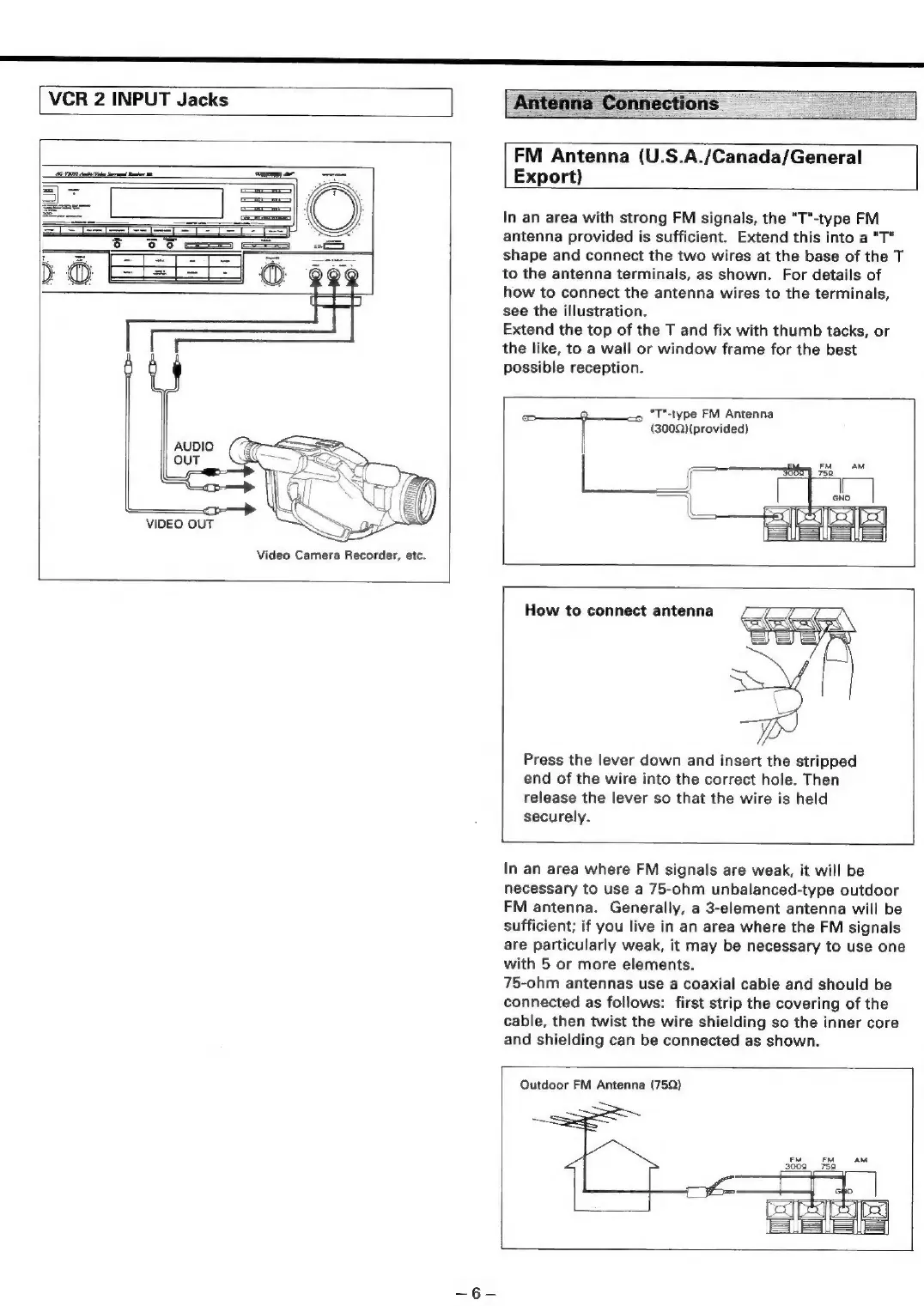

VCR
2
INPUT
Jacks
VIDEO
OUT
Video
Camera
Recorder,
etc.
FM
Antenna
(U.S.A./Canada/General
Export)
In
an
area
with
strong
FM
signals,
the
"T"-type
FM
antenna
provided
is
sufficient.
Extend
this into
a
"T"
shape
and
connect
the
two
wires
at
the
base
of
the
T
to
the
antenna
terminals,
as
shown.
For
details
of
how
to
connect
the
antenna
wires
to
the
terminals,
see
the
illustration.
Extend
the
top
of
the
T
and
fix
with
thumb
tacks,
or
the
like,
to
a
wall
or
window
frame
for
the
best
possible
reception.
“T*-type
FM
Antenna
(300Q)(provided)
|
How
to
connect
antenna
Press
the
lever
down
and
insert
the
stripped
end
of
the
wire
into
the
correct
hole.
Then
release
the
lever
so
that
the
wire
is
held
securely.
In
an
area
where
FM
signals
are
weak,
it
will
be
necessary
to
use
a
75-ohm
unbalanced-type
outdoor
FM
antenna.
Generally,
a
3-element
antenna
will
be
sufficient;
if
you
live
in
an
area
where
the
FM
signals
are
particularly
weak,
it
may
be
necessary
to
use
one
with
5
or
more
elements.
75-ohm
antennas
use
a
coaxial
cable
and
should
be
connected
as
follows:
first
strip
the
covering
of
the
cable,
then
twist
the
wire
shielding
so
the
inner
core
and
shielding
can
be
connected
as
shown.
Outdoor
FM
Antenna
(75Q)
FM
FM
AM
3009759
