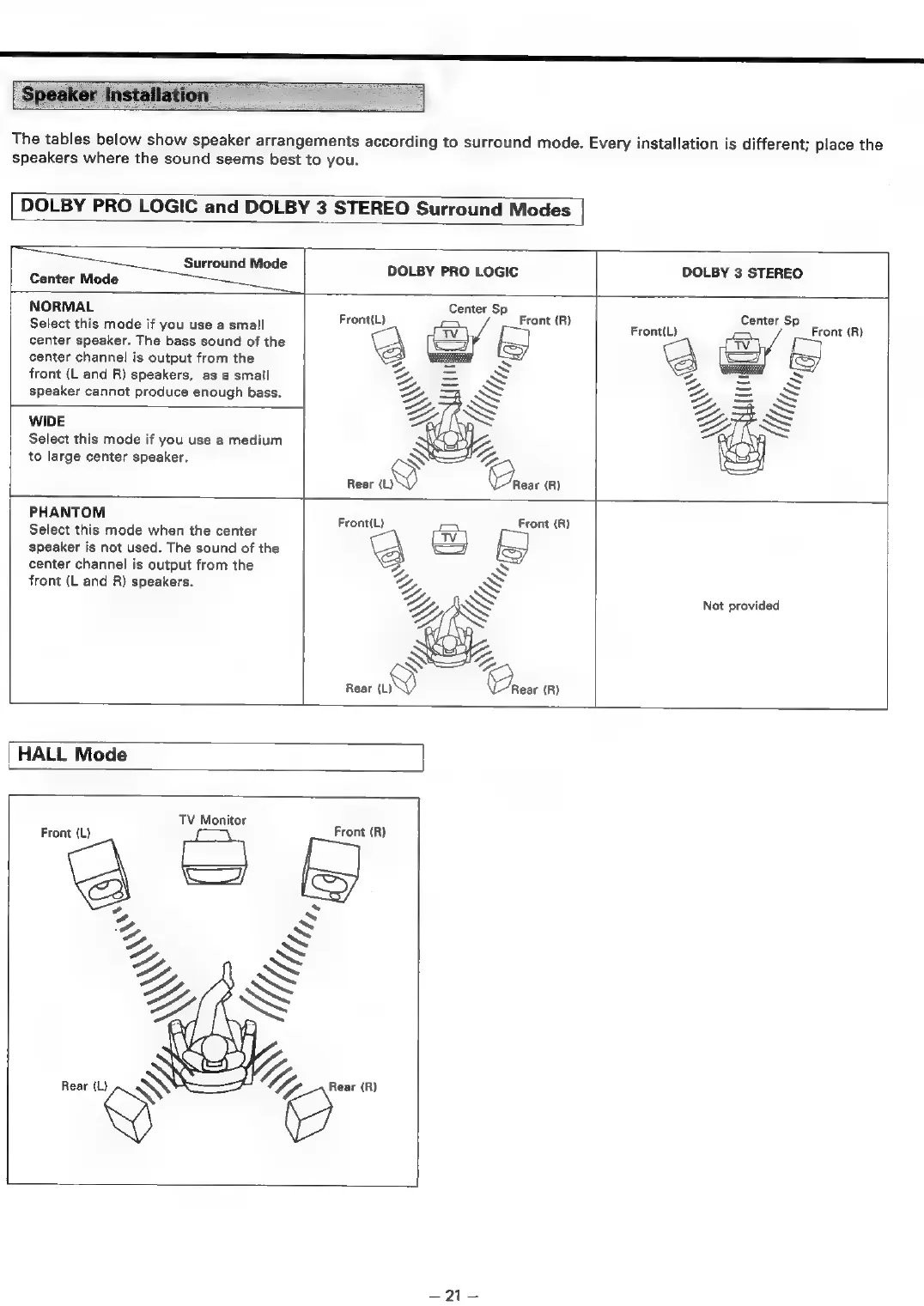

Teac AG-V3050 - SURROUND SOUND SETUP; Speaker Installation Guidelines

The
tables
below
show
speaker
arrangements
according
to
surround
mode.
Every
installation
is
different;
place
the
speakers
where
the
sound
seems
best
to
you.
DOLBY
PRO
LOGIC
and
DOLBY
3
STEREO
Surround
Modes
Surround Mode
Center Mode
DOLBY PRO LOGIC
DOLBY 3 STEREO
NORMAL
Select this mode if you use a small
center speaker. The bass sound of the
center channel is output from the
front (L and R) speakers, as a small
speaker cannot produce enough bass.
WIDE
Select this mode if you use a medium
to large center speaker.
Center Sp
Front (R)
&
SS
S
S
©
Rear (R)
Center Sp
Front (R)
PHANTOM
Select this mode when the center
speaker is not used. The sound of the
center channel is output from the
front (L and R) speakers.
Front (R)
S
~)
Rear (L)
x
Rear (R)
Not provided
| HALL Mode
TV Monitor
Front (L)
Rear (L)
; Rear (R)
Front (R)
=s9i' =;
