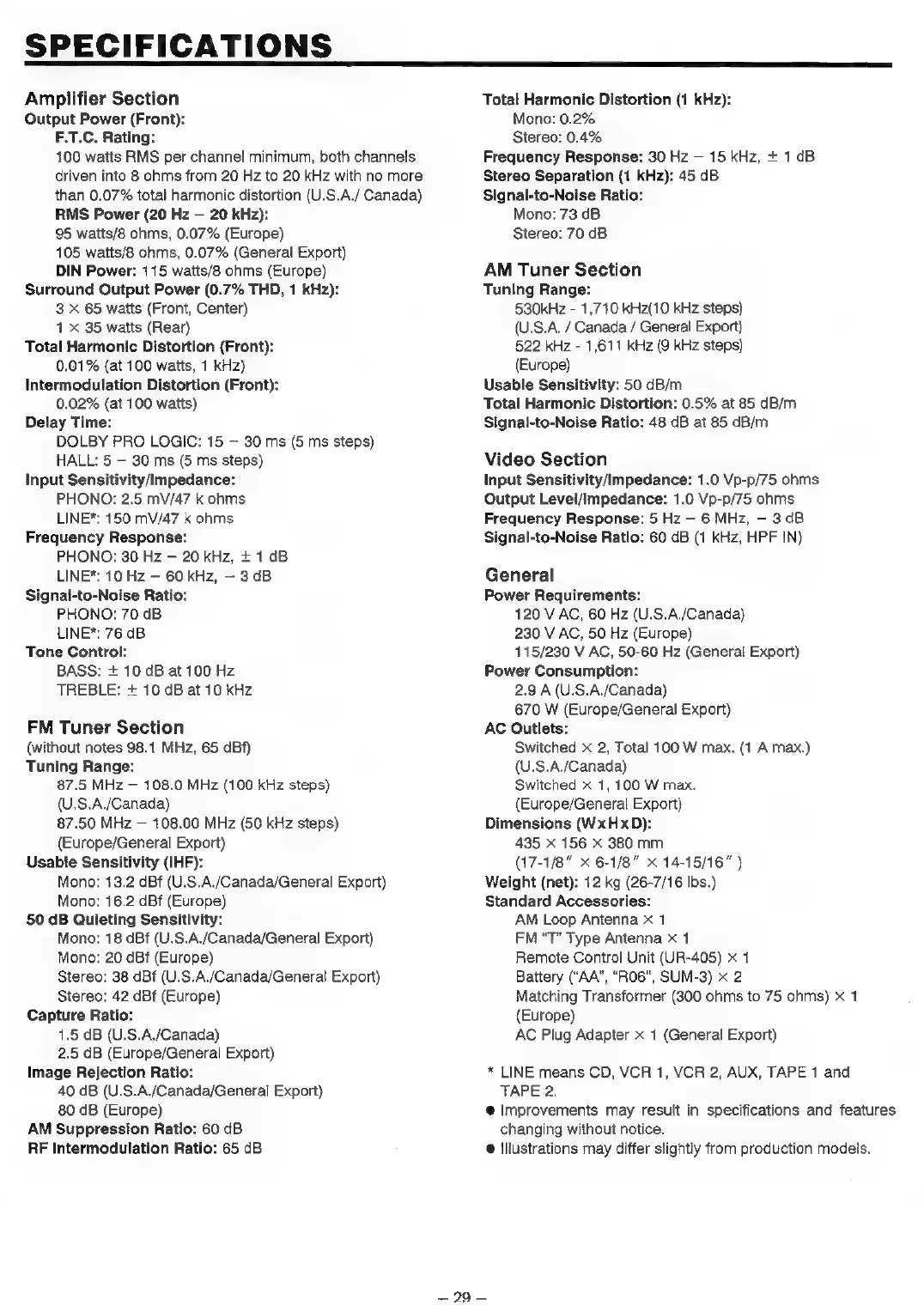

SPECIFICATIONS
Amplifier Section
Output Power (Front):
F.T.C. Rating:
100 watts RMS per channel minimum, both channels
driven into 8 ohms from 20 Hz to 20 kHz with no more
than 0.07% total harmonic distortion (U.S.A./ Canada)
RMS Power (20 Hz — 20 kHz):
95 watts/8 ohms, 0.07% (Europe)
105 watts/8 ohms, 0.07% (General Export)
DIN Power: 115 watts/8 ohms (Europe)
Surround Output Power (0.7% THD, 1 kHz):
3 X 65 watts (Front, Center)
1 X 35 watts (Rear)
Total Harmonic Distortion (Front):
0.01% (at 100 watts, 1 kHz)
Intermodulation Distortion (Front):
0.02% (at 100 watts)
Delay Time:
DOLBY PRO LOGIC: 15 — 30 ms (5 ms steps)
HALL: 5 — 30 ms (5 ms steps)
Input Sensitivity/Impedance:
PHONO: 2.5 mV/47 k ohms
LINE*: 150 mV/47 k ohms
Frequency Response:
PHONO: 30 Hz — 20 kHz, + 1 dB
LINE*: 10 Hz — 60 kHz, — 3 dB
Signal-to-Noise Ratio:
PHONO: 70 dB
LINE*: 76 dB
Tone Control:
BASS: + 10 dB at 100 Hz
TREBLE: + 10 dB at 10 kHz
FM Tuner Section
(without notes 98.1 MHz, 65 dBf)
Tuning Range:
87.5 MHz — 108.0 MHz (100 kHz steps)
(U.S.A./Canada)
87.50 MHz — 108.00 MHz (50 kHz steps)
(Europe/General Export)
Usable Sensitivity (IHF):
Mono: 13.2 dBf (U.S.A./Canada/General Export)
Mono: 16.2 dBf (Europe)
50 dB Quieting Sensitivity:
Mono: 18 dBf (U.S.A./Canada/General Export)
Mono: 20 dBf (Europe)
Stereo: 38 dBf (U.S.A./Canada/General Export)
Stereo: 42 dBf (Europe)
Capture Ratio:
1.5 dB (U.S.A./Canada)
2.5 dB (Europe/General Export)
Image Rejection Ratio:
40 dB (U.S.A./Canada/General Export)
80 dB (Europe)
AM Suppression Ratio: 60 dB
RF Intermodulation Ratio: 65 dB
Total Harmonic Distortion (1 kHz):
Mono: 0.2%
Stereo: 0.4%
Frequency Response: 30 Hz — 15 kHz, + 1 dB
Stereo Separation (1 kHz): 45 dB
Signal-to-Noise Ratio:
Mono: 73 dB
Stereo: 70 dB
AM Tuner Section
Tuning Range:
530kHz - 1,710 kHz(10 kHz steps)
(U.S.A. / Canada / General Export)
522 kHz - 1,611 kHz (9 kHz steps)
(Europe)
Usable Sensitivity: 50 dB/m
Total Harmonic Distortion: 0.5% at 85 dB/m
Signal-to-Noise Ratio: 48 dB at 85 dB/m
Video Section
Input Sensitivity/Impedance: 1.0 Vp-p/75 ohms
Output Level/Impedance: 1.0 Vp-p/75 ohms
Frequency Response: 5 Hz — 6 MHz, — 3 dB
Signal-to-Noise Ratio: 60 dB (1 kHz, HPF IN)
General
Power Requirements:
120 V AC, 60 Hz (U.S.A./Canada)
230 V AC, 50 Hz (Europe)
115/230 V AC, 50-60 Hz (General Export)
Power Consumption:
2.9 A (U.S.A./Canada)
670 W (Europe/General Export)
AC Outlets:
Switched x 2, Total 100 W max. (1 A max.)
(U.S.A./Canada)
Switched x 1, 100 W max.
(Europe/General Export)
Dimensions (WxHxD):
435 x 156 x 380 mm
(17-1/8" x 6-1/8” Xx 14-15/16” )
Weight (net): 12 kg (26-7/16 Ibs.)
Standard Accessories:
AM Loop Antenna x 1
FM “T” Type Antenna x 1
Remote Control Unit (UR-405) x 1
Battery (“AA”, “RO6”, SUM-3) x 2
Matching Transformer (300 ohms to 75 ohms) x 1
(Europe)
AC Plug Adapter x 1 (General Export)
* LINE means CD, VCR 1, VCR 2, AUX, TAPE 1 and
TAPE 2.
@ Improvements may result in specifications and features
changing without notice.
@ Illustrations may differ slightly from production models.
