Teac MC-D800 User Manual

14
V

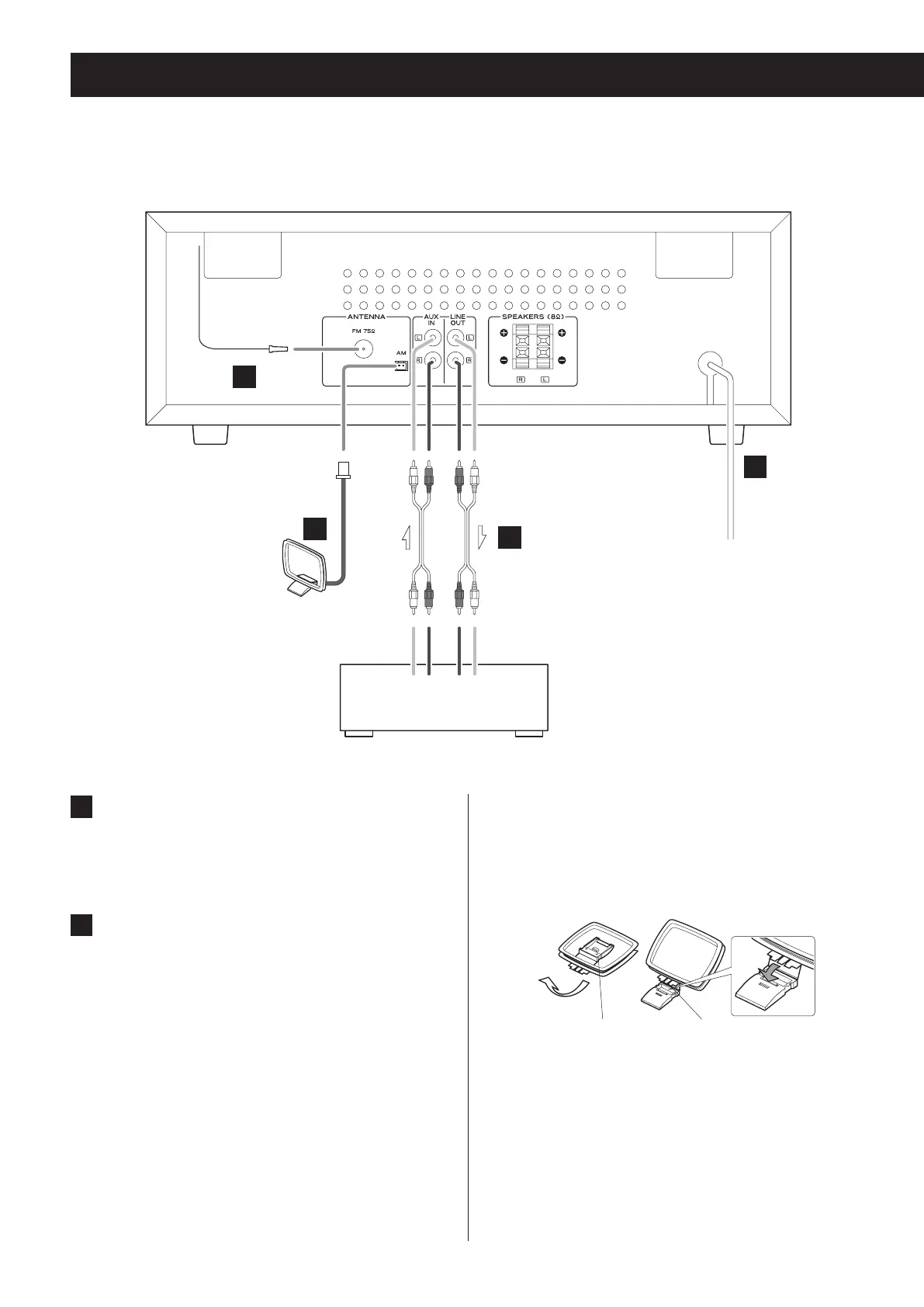

Precautions when making connections
o Do not turn the unit on until after making all connections.
o Carefully read the manuals of the devices that you are connecting and
follow their instructions when making connections.
B
C
D
A
LLR
Connections
A
FM antenna connector
Extend the FM antenna and fix it in the position
where the reception is best (on a window frame or
wall, for example).
B
AM antenna connector
Assemble the included AM loop antenna and con-
nect it to the AM antenna jack on the back of the
unit.
Place the antenna in the position that provides the
best AM reception.
Assembling the AM antenna
To assemble the AM antenna, turn the base in the direc-
tion of the arrow. Then, insert the hook at the bottom of
the loop into the slot in the base.
Antenna base Hook
1
2
Recording device
Cassette deck, CD recorder, etc.
Audio output
jacks
Audio input
jacks
Wall outlet

Teac MC-D800 Specifications

General

Type	Belt-drive audio turntable
CD player	Yes
MP3 bit rates	8 - 320 Kbit/s
Product color	Black
Wow & flutter	0.35 %
Playback modes	Repeat, Shuffle
Volume control	Rotary
Turntable speeds	45, 78 RPM
FM preset stations	20
Disc types supported	CD, CD-DA, CD-R, CD-RW
Supported radio bands	AM, FM, PLL
Audio formats supported	MP3, PCM, SBC, WMA
Signal-to-Noise Ratio (SNR)	70 dB
USB version	2.0
Bluetooth range	10 m
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
USB ports quantity	1
Headphone connectivity	3.5 mm
Impedance	8 Ω
Speaker type	2-way
Frequency range	50 - 20000 Hz
RMS rated power	20 W
Woofer diameter	88.9 mm
Tweeter diameter	38.1 mm
Number of speakers	2
Package depth	500 mm
Package width	610 mm
Package height	320 mm
Package weight	13700 g
Display type	LCD
Power supply type	AC
AC adapter frequency	60 Hz
AC adapter input voltage	120 V

Weight and Dimensions

Weight	6600 g
Product dimensions (WxHxD)	400 x 206 x 386 mm
Satellite speaker dimensions (WxDxH)	144 x 154 x 224 mm
