TEC MA-1650-4 Series - SYSTEM OVERVIEW

- 2 -
EO3-11070
MA-1650-4 SERIES
2. SYSTEM OVERVIEW

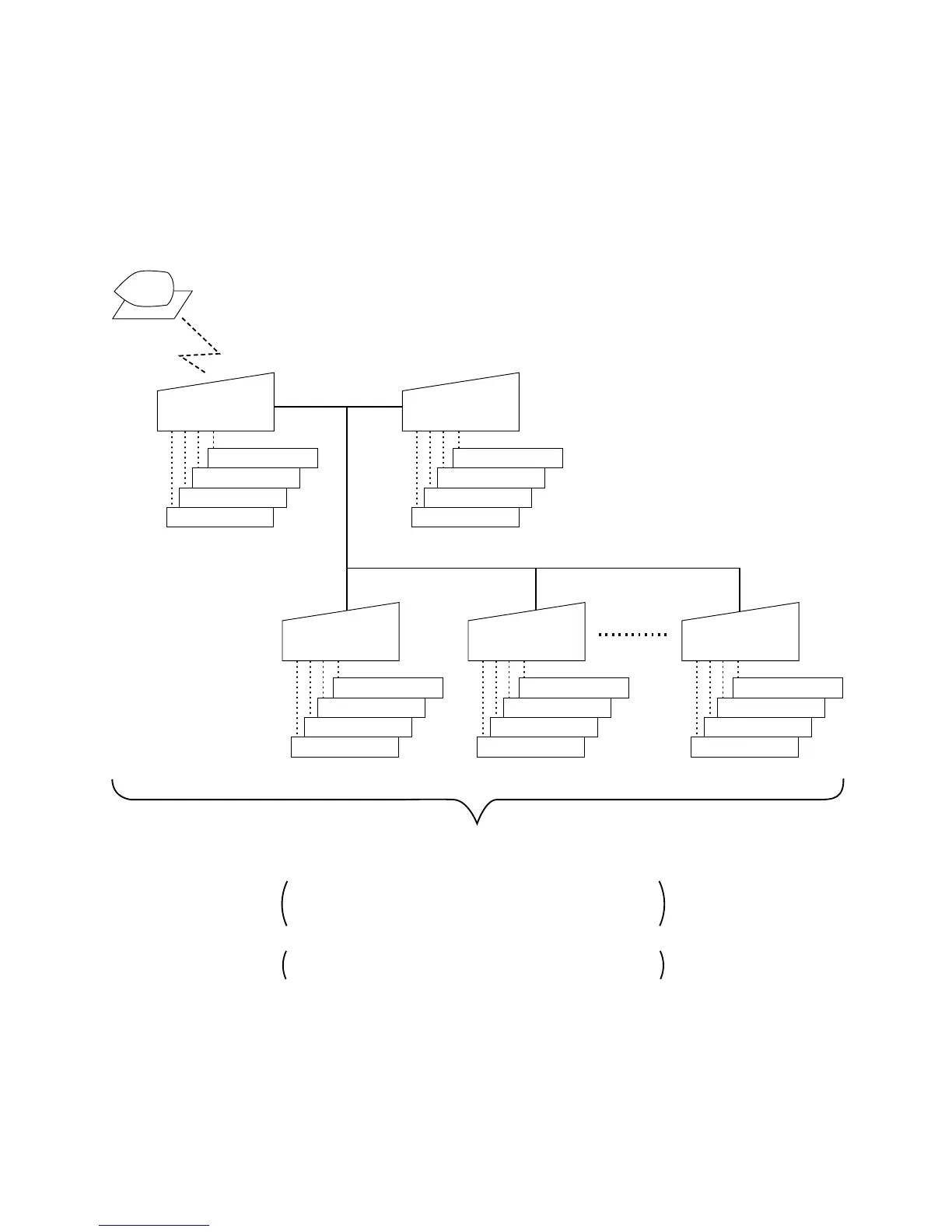

SYSTEM CONFIGURATION
Batch-consolidation/Scanning System: Max. 6 terminals
Master Terminal ... 1 unit
Backup Master Terminal ... 1 unit
Satellite Terminal ... Max. 14 units
or
Master Terminal ... 1 unit
Satellite Terminal ... Max. 14 units
Remote Slip Printer: DRS-207
Scanner: OCIA Interface Type
Scale: Parallel Scale
PC
Master
Terminal
RS-232C
Remote Slip Printer
Scanner
Scale
EFT
Backup Master
Terminal
Remote Slip Printer
Scanner
Scale
EFT
RS-485
Satellite
Terminal
Remote Slip Printer
Scanner
Scale
EFT
Satellite
Terminal
Remote Slip Printer
Scanner
Scale
EFT
Satellite
Terminal
Remote Slip Printer
Scanner
Scale
EFT
NOTE: EFT terminal can be connected to the system on V3.0 or after.
