4.2.1.3 Robot Arm Installation

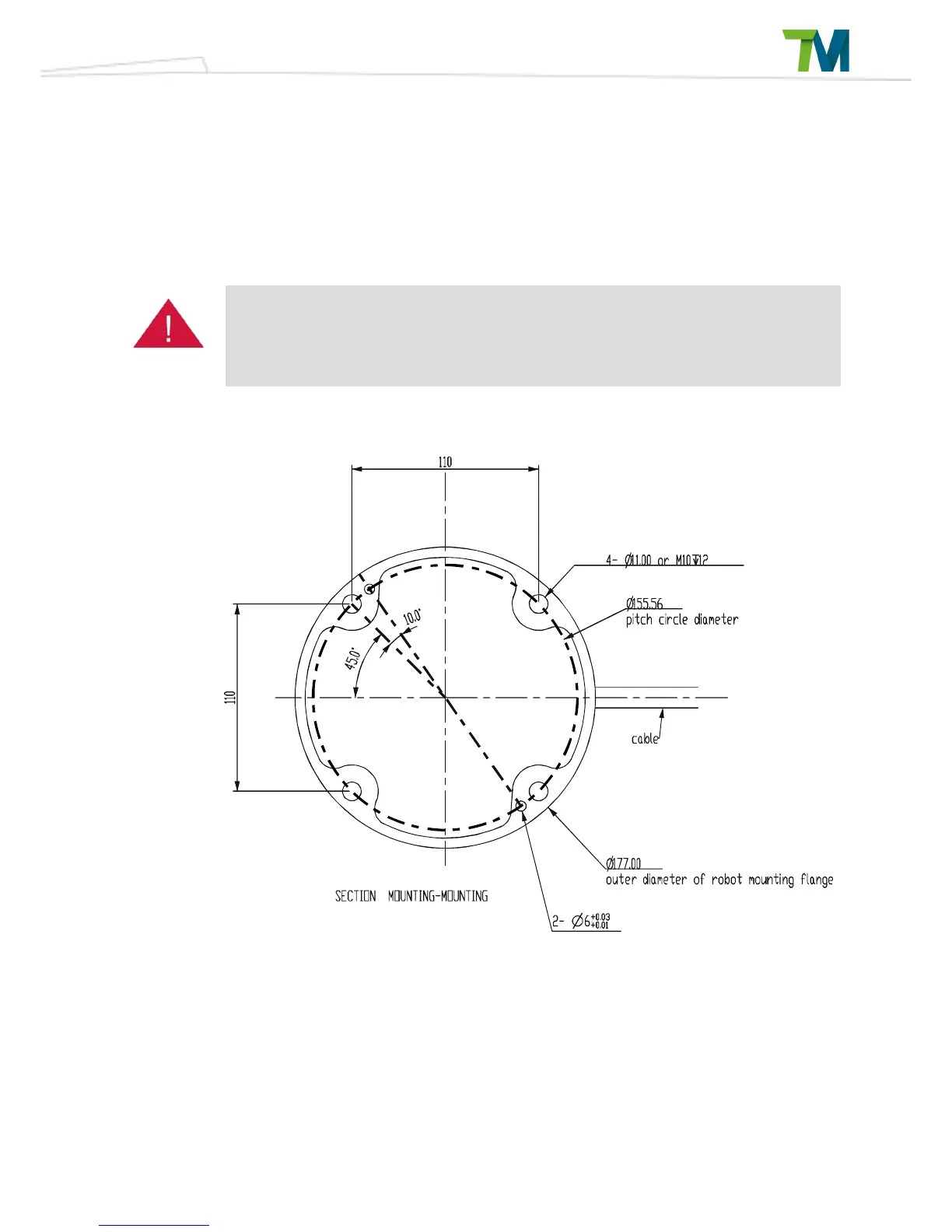

The TM5 is secured by four holes with a diameter of 11mm on the base and four M10 screws.
A tightening torque of 35Nm (can be adjusted based on the strength of the bolts used) is
recommended. If your application requires more precision, you can use two positioning pins
with a diameter of 6mm for a more secure mounting.
1. The Techman Robot must be securely and tightly screwed down before use. The mounting
surface should have sufficient strength.
2. Do not immerse the Techman Robot in water. Installation in the water or a humid
environment may lead to damage.
