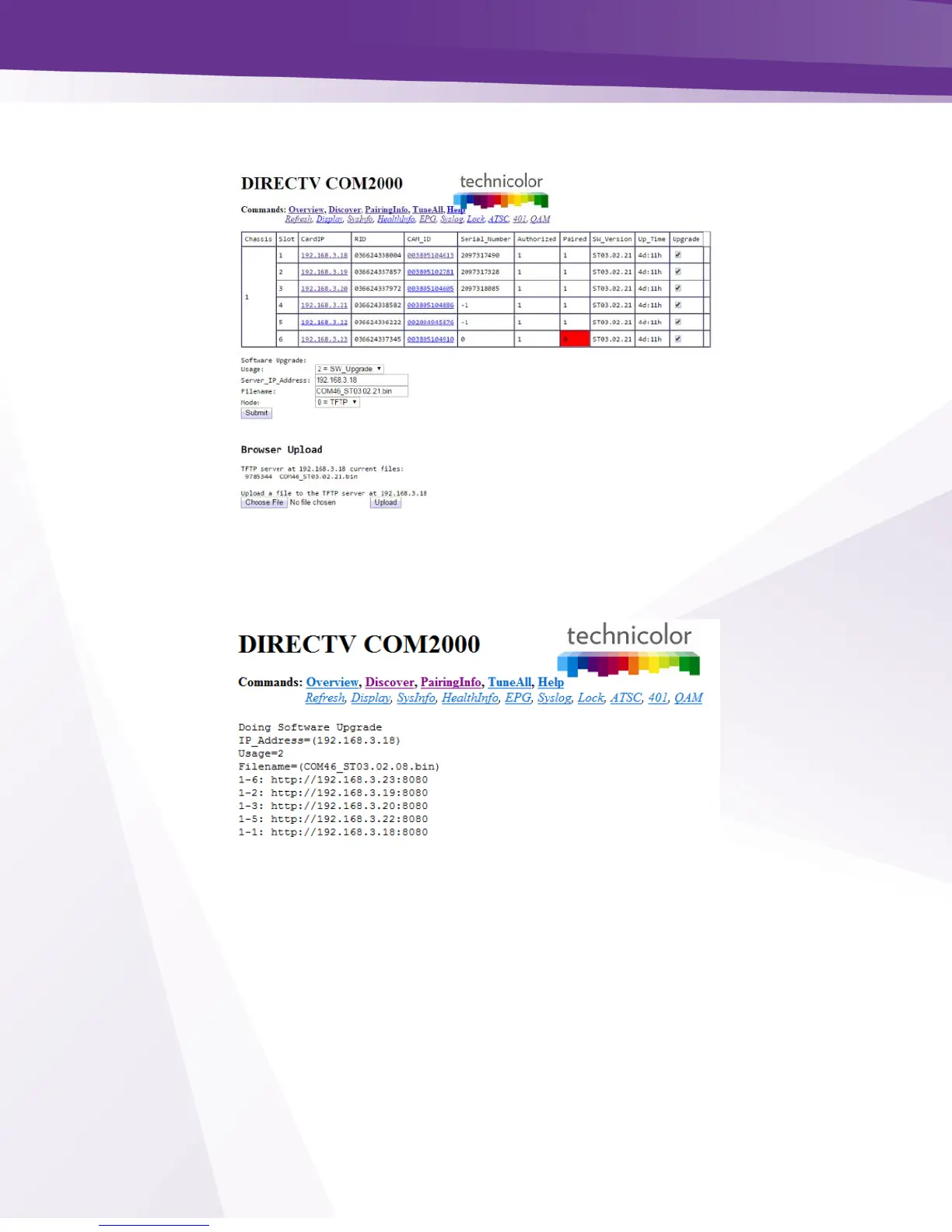

If one desires to update all of the COM46 cards in a chassis (multi-card upgrade method), then all
upgrade fields would be checked as shown in Figure 61 below.
Figure 65 - Multi Card COM46 SW Update
The results of the upgrade in Figure 61 are shown below in Figure 62.
Figure 66 - Multi Card Upgrade Results
Once the software has loaded the card will reboot. Click on the Discover tab and then the Pairing
info tab. The new software version number will be displayed in SW_Version column of the
Pairing info table.
