Technifor XF510Cr User Manual

AInstallation
C
Ref. DCD01/3074 - XF510Cr-Sr-Dr_en_C
17/31

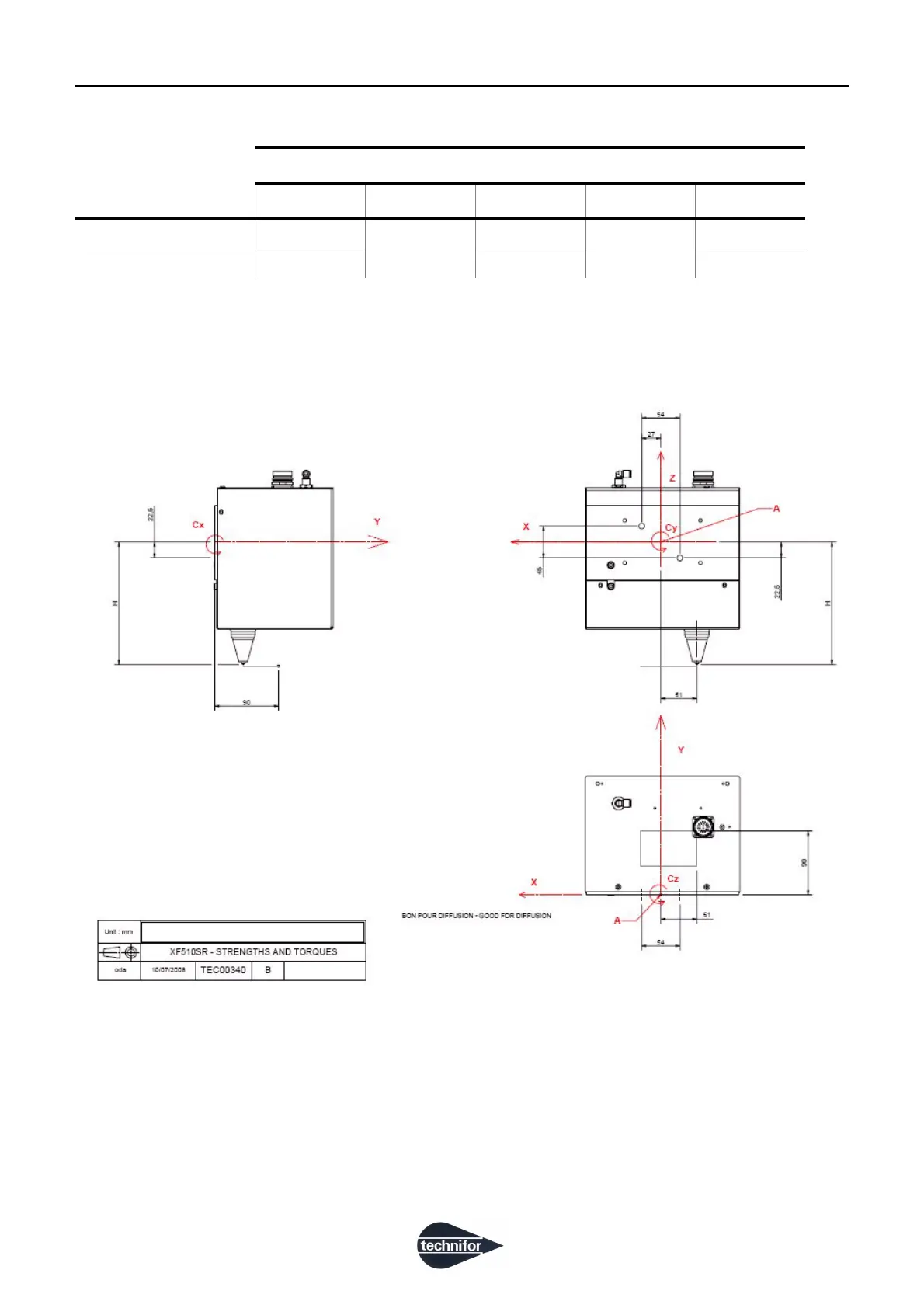

Approximative forces exerted on the part to mark
• XF510Sr
The effort exerted on the mechanics during the marking procedure is transferred to the plate.
Approximative forces and couplings exerted on the head’s fastening, brought to point A, without taking into
account the forces and couplings due to the machine’s weight, depending on the integration’s position (for this
calculation: consider the center of gravity as being at the center of the machine’s volume)
Stylus
NA0 NA1 NA1 LG 100 N2 NA2
Fx = Fy (daN) ± 8.0 ± 18.8 ± 18.8 ± 36.9 ± 36.9
Fz (daN) -8.0 -18.8 -18.8 -36.9 -36.9
