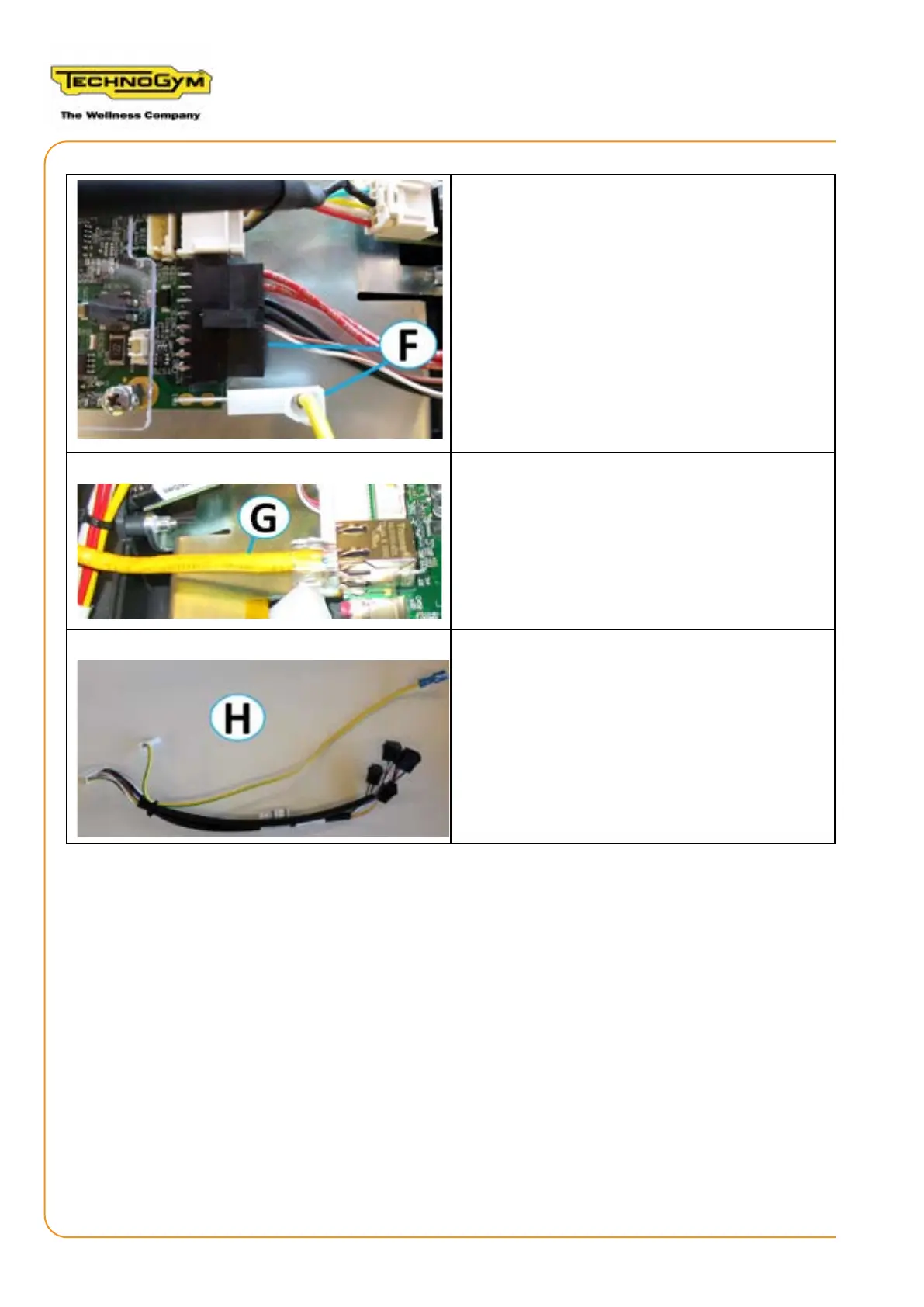

3. Connect the 16-pole connector of the display
power adapter cable (F) 0WCU0686xx, to the
connector POWER CN17 of the CPU Board.
4. Connect the female faston of the cable (F)
0WCU0686xx, to the metal sheet of the CPU
Board.
5. Connect the LAN cable (G) to the CPU Board
(LAN CN4).
The gure alongside shows the cardio-touch
adapter cable (H) 0WCU0687xx, provided in
the kit.
