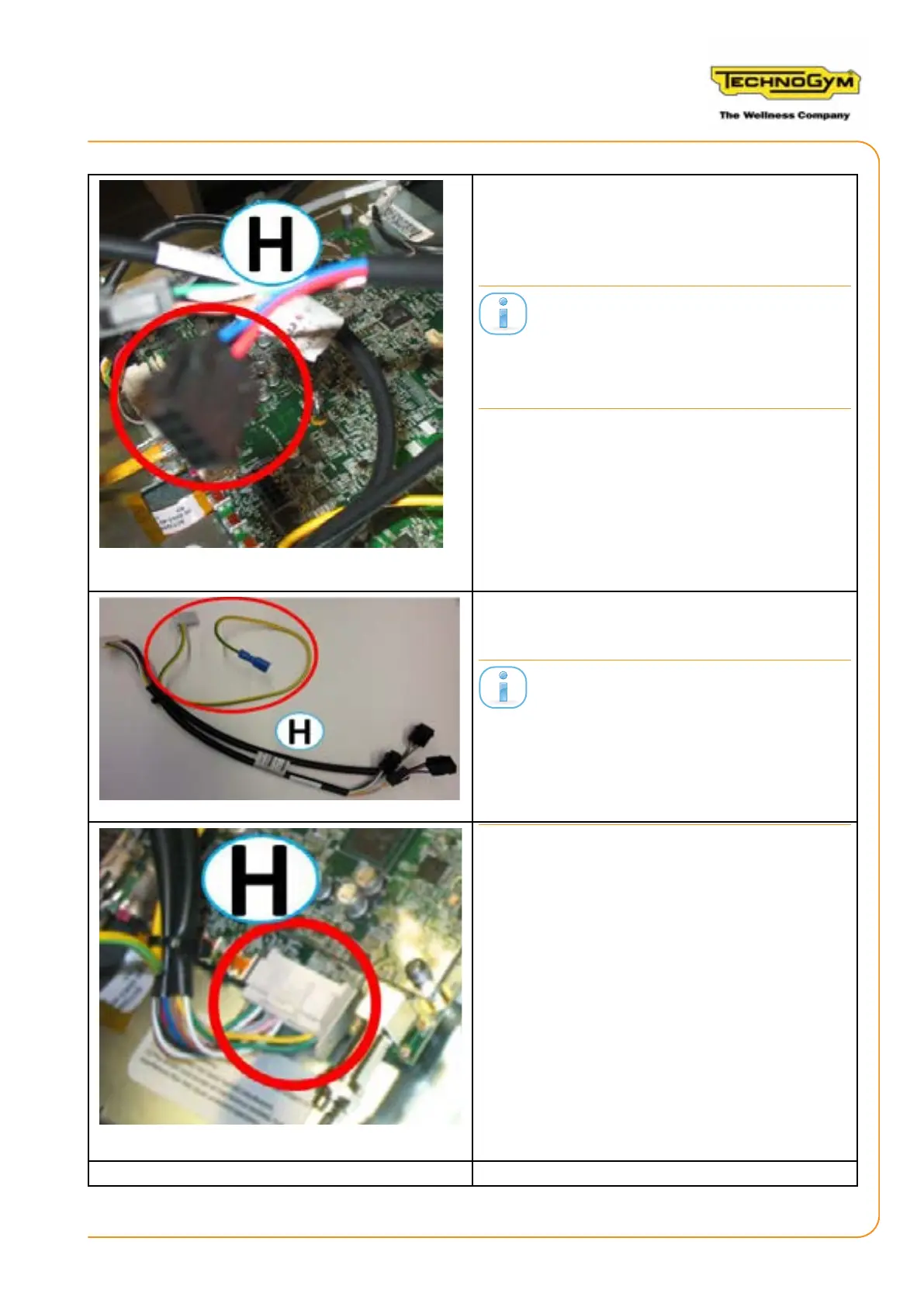

6. Do not connect the 8-pole connector of the
cardio-touch adapter cable (H) 0WCU0687xx,
in case of the following equipment: New Recli-
ne / New Bike / Step / Top / Vario.
The 8-pole connector of the cable (H) must
be connected only in case of Synchro / Cros-
sOver equipment, that have the hand sensor
board and the cardio receiver separate.
7. Do not connect the ground cable of the car-
dio-touch adapter cable (H) 0WCU0687xx.
In the equipment with the ground cable -that
comes from the Low-Kit- splied, connect
the faston blue of the cable (H) to the ground
cable and connect the faston white of the ca-
ble (H) to the metal sheet of the CPU Board,
beside the connector CARDIO CN21.
8. Connect the 24-pole connector of the cable
(H) 0WCU0687xx, to the CPU Board (connector
CN21 CARDIO. DIG. IO).
