Technogym EXCITE - Page 18

EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 18

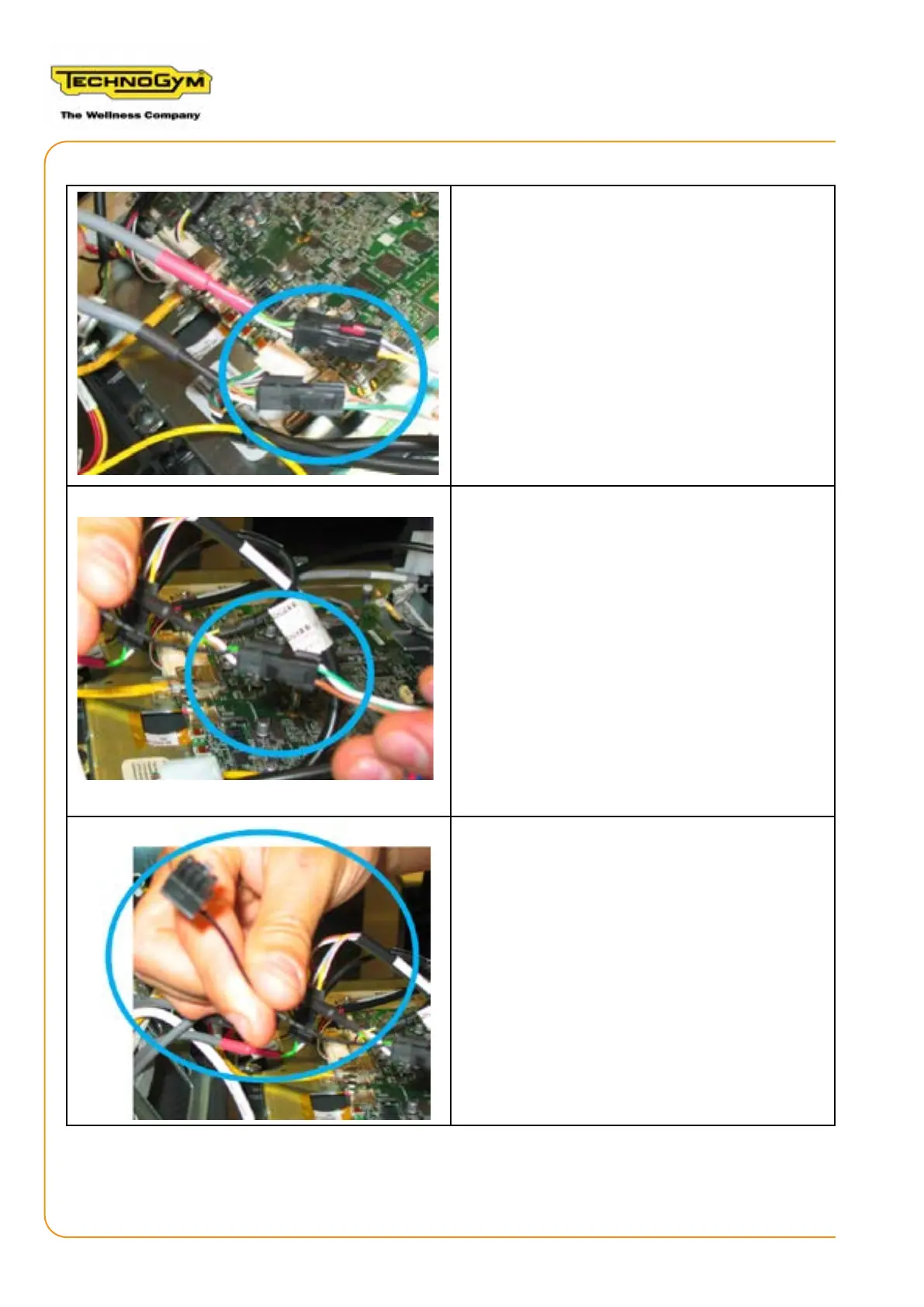

9. Connect the 4-pole connector of the cardio-
touch adapter cable (H) 0WCU0687xx, identi-
ed with the red colour, to the 4-pole connector
of the cable of the equipment, with red sheath.
10.Connect the 4-pole connector of the cable
(H) 0WCU0687xx, to the 4-pole connector of the
cable of the equipment.
11. Connect the 6-pole connector of the cardio-
touch adapter cable (H) 0WCU0687xx, to the
6-pole connector of the cable of the equipment.
12. Do not connect the connector of the cable of
the equipment with black thin thread.
