7.11. DISASSEMBLING THE LOWER COMPONENTS

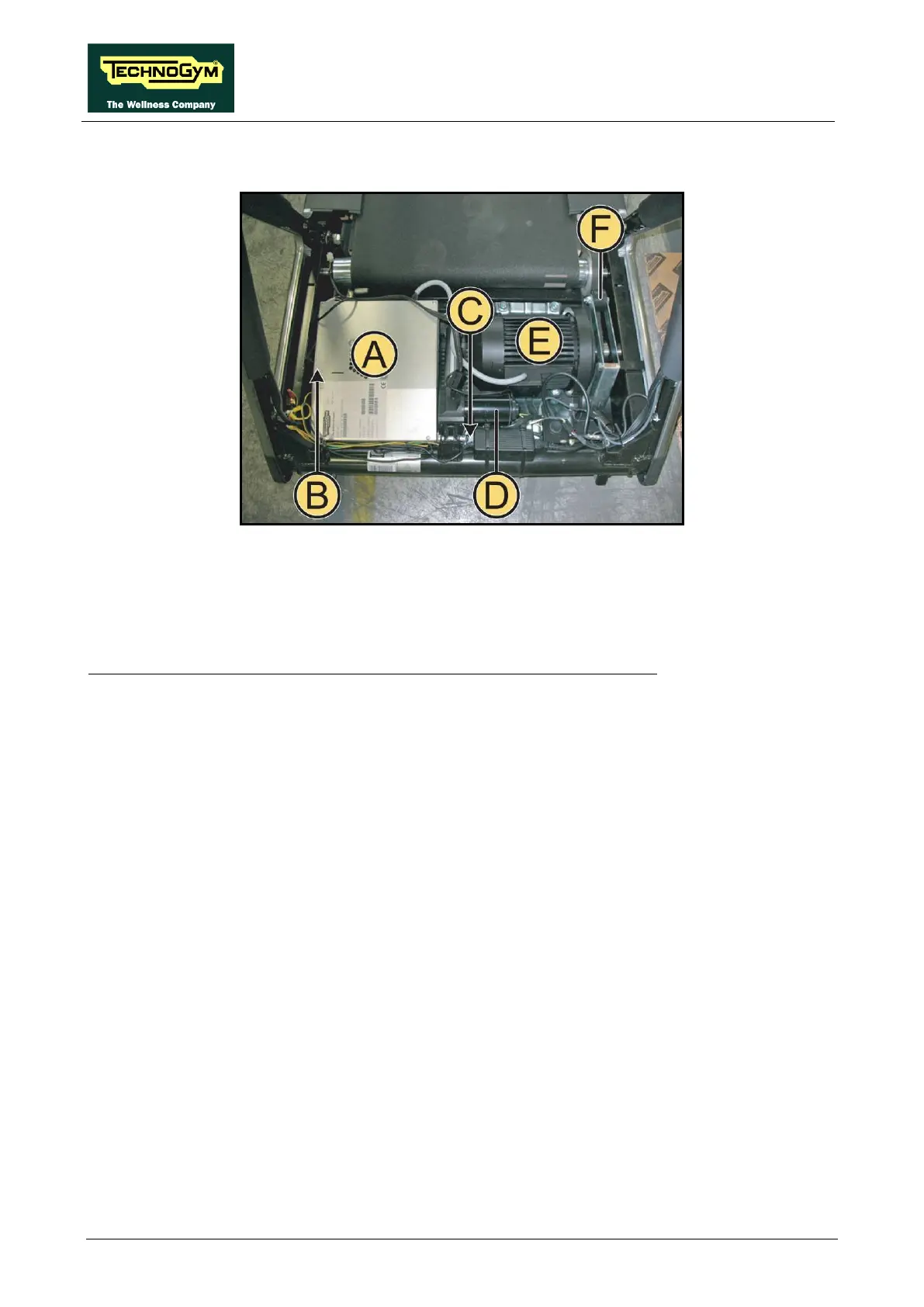

Figure 7.11-1
Carry out the operations up to step (2) of paragraph: 7.10. “Disassembling the motor guard and
side uprights”.
At this point it is possible to disassemble the following internal components:
• ALE Drive (A);
• Elevation microswitch (B);
• Power supply box (C);
• Elevation motor (D);
• Tread-belt motor (E);
• Belt tension adjustment assembly (F).
Continued on following page…
