7.2. DISASSEMBLING THE LCD

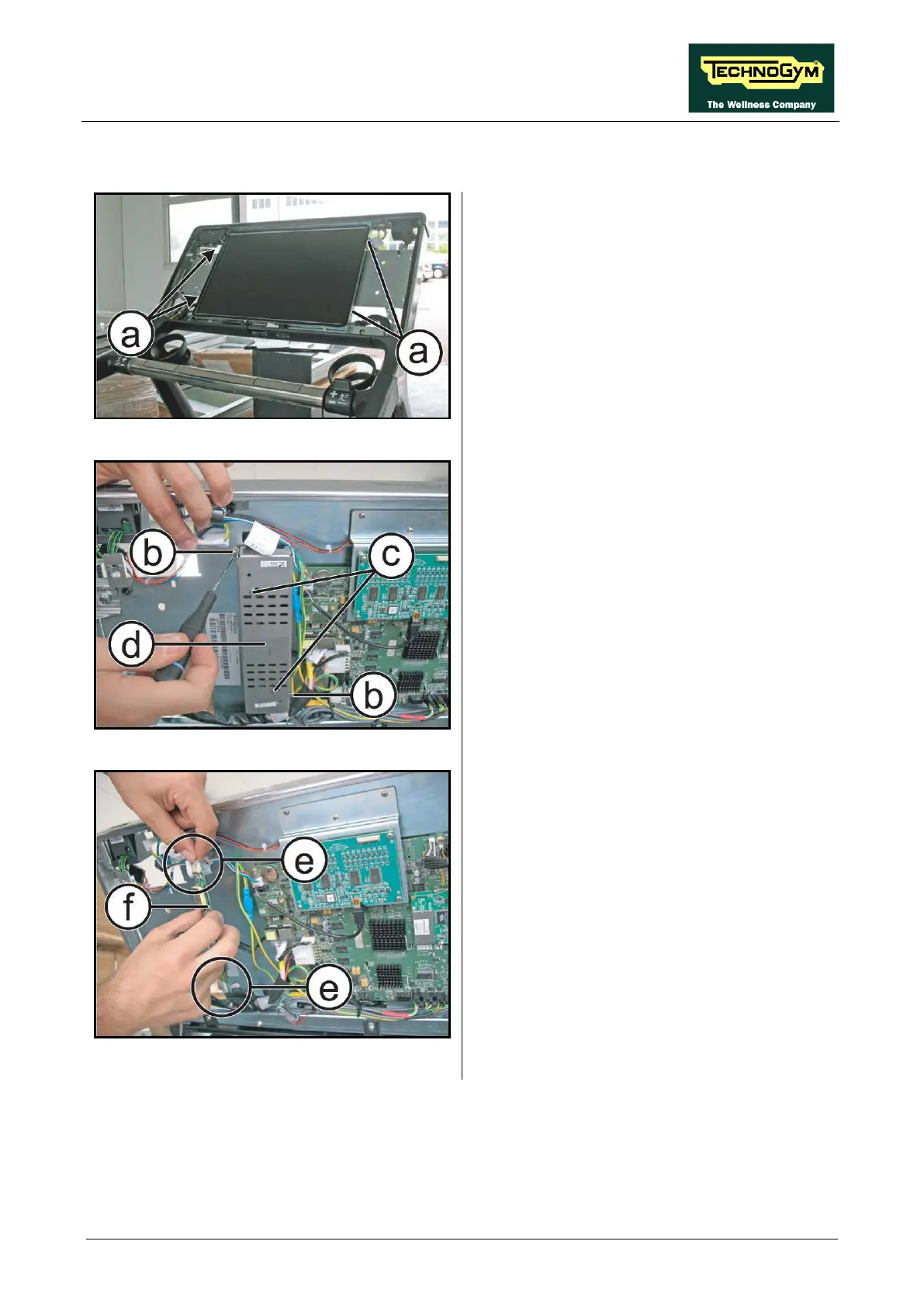

Figure 7.2-1
Carry out the procedure described in paragraph:
7.1. “Disassembling the touch screen”.
1. Back off the 4 screws (a)
using a small
Phillips screwdriver.
Figure 7.2-2
2. Back off the 2 screws (b)
using a small
Phillips screwdriver.
3. Back off the 2 screws (c)
using a small
Phillips screwdriver.
4. Remove the LCD guard (d).
Figure 7.2-3
5. Unplug the connectors (e)
indicated in the
figure and remove the inverter (f).
Continued on following page…
