Technogym RUN PERSONAL - Aligning the Tread Belt Motor Drive Belt

RUN PERSONAL: Service & maintenance manual - rev. 3.1
Page 8.4
8.4. ALIGNING THE TREAD – BELT MOTOR DRIVE-BELT

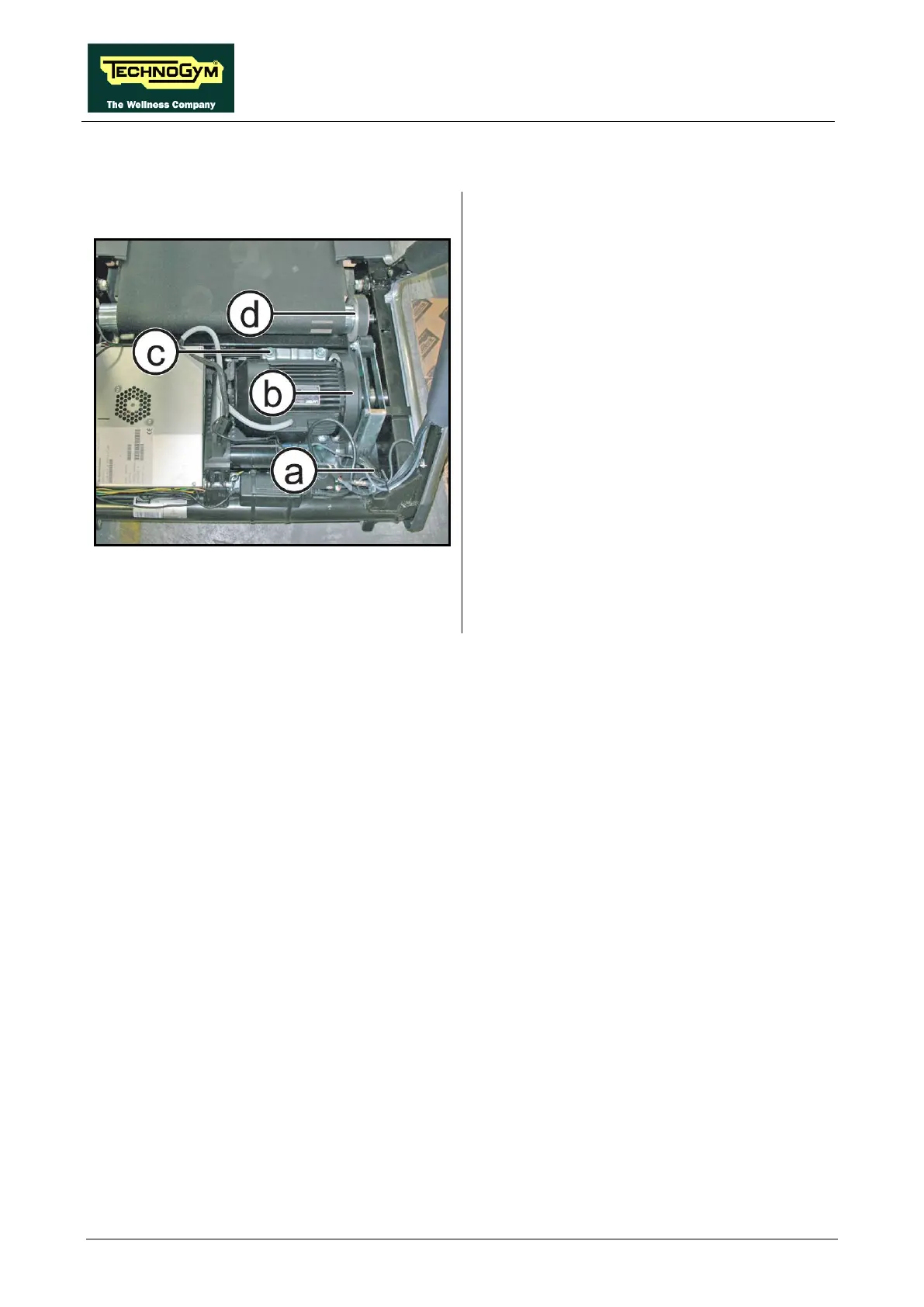

Figure 8.4-1
Carry out the operations up to step (2) of
paragraph: 7.10. “Disassembli
ng the motor
guard and side uprights”.
1. Remove the dust guard.
2. Release the spring (a)
of the belt tensioning
mechanism.
3. Align the motor flywheel (b),
using the 4
screws (c), with the pulley (d).
4. Align the motor drive-
belt by shifting it
within the races of the pulley (d).
5. After completing the alignment, re-engage
the spring (a)
of the tensioning mechanism
and lock down the screws (c)
of the motor
support.
