6.14.2. CHEST BELT
SALUTRON 8500 (Chest Belt /HS).
CORRECT USE OF THE CHEST BELT: Wear the chest belt taking care the area of
contact with the body is humid in order to guarantee it proper works.

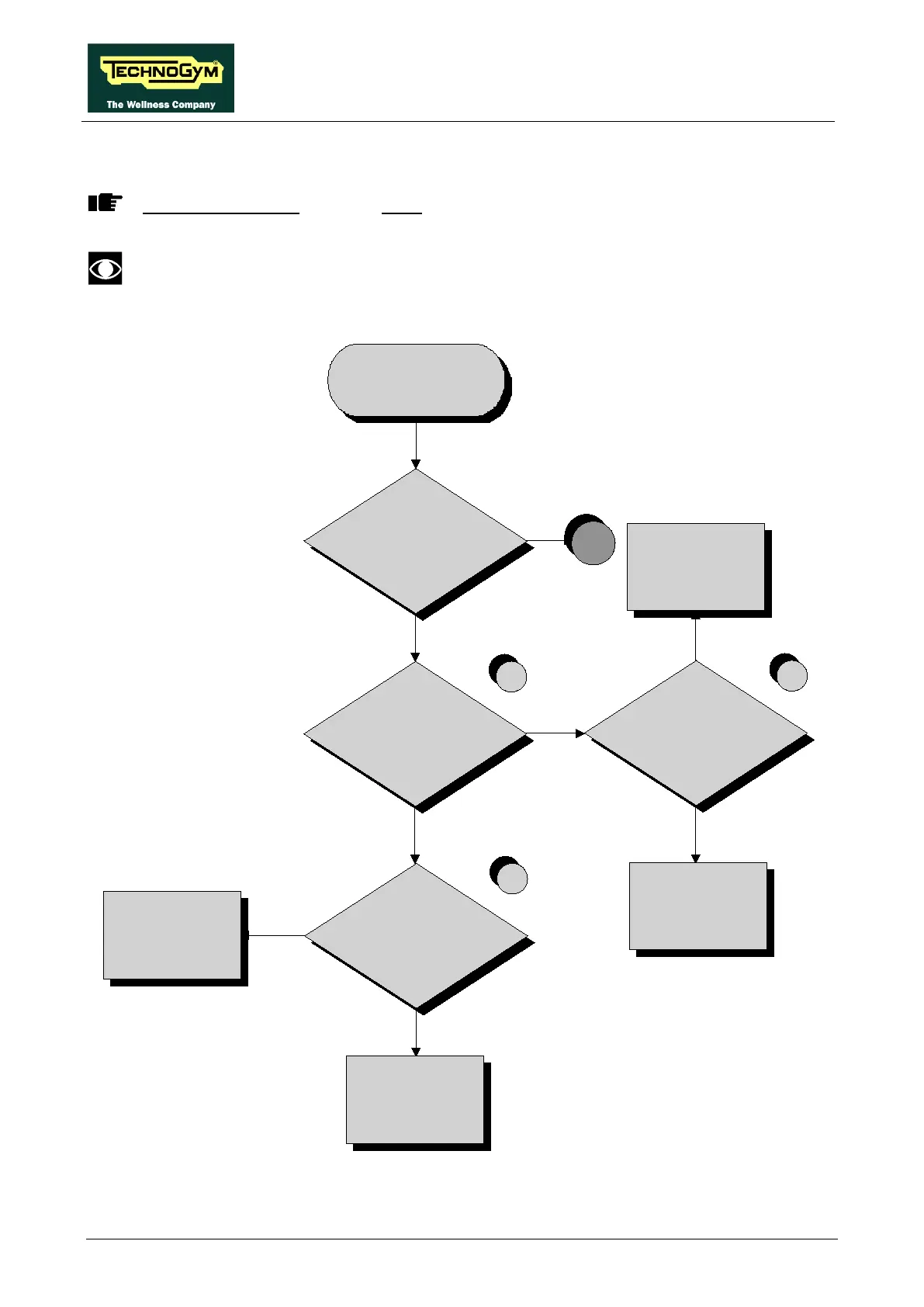

THERE IS NO HR
SIGNAL
(Chest Belt)
Check if the +5Vdc are at the
input of the Receiv er Board.
Are present?
Display Board def ectiv e.
Replace.
1
NO
YES
Check if the +5Vdc are at the
output of Display Board.
Are present?
Receiv er Board
def ectiv e.
Replace.
2
YES
NO
NO
YES
A
Check the SW and the
grounding of Receiv er Board.
Problem persist?
3
Replace the connecting
cable between High Kit
and Low Kit.
YES
Check if using the Hand
Sensors the Heart Rate
detected.
OK
NO
Continued on following page…
