7.4. DISASSEMBLING THE DISPLAY

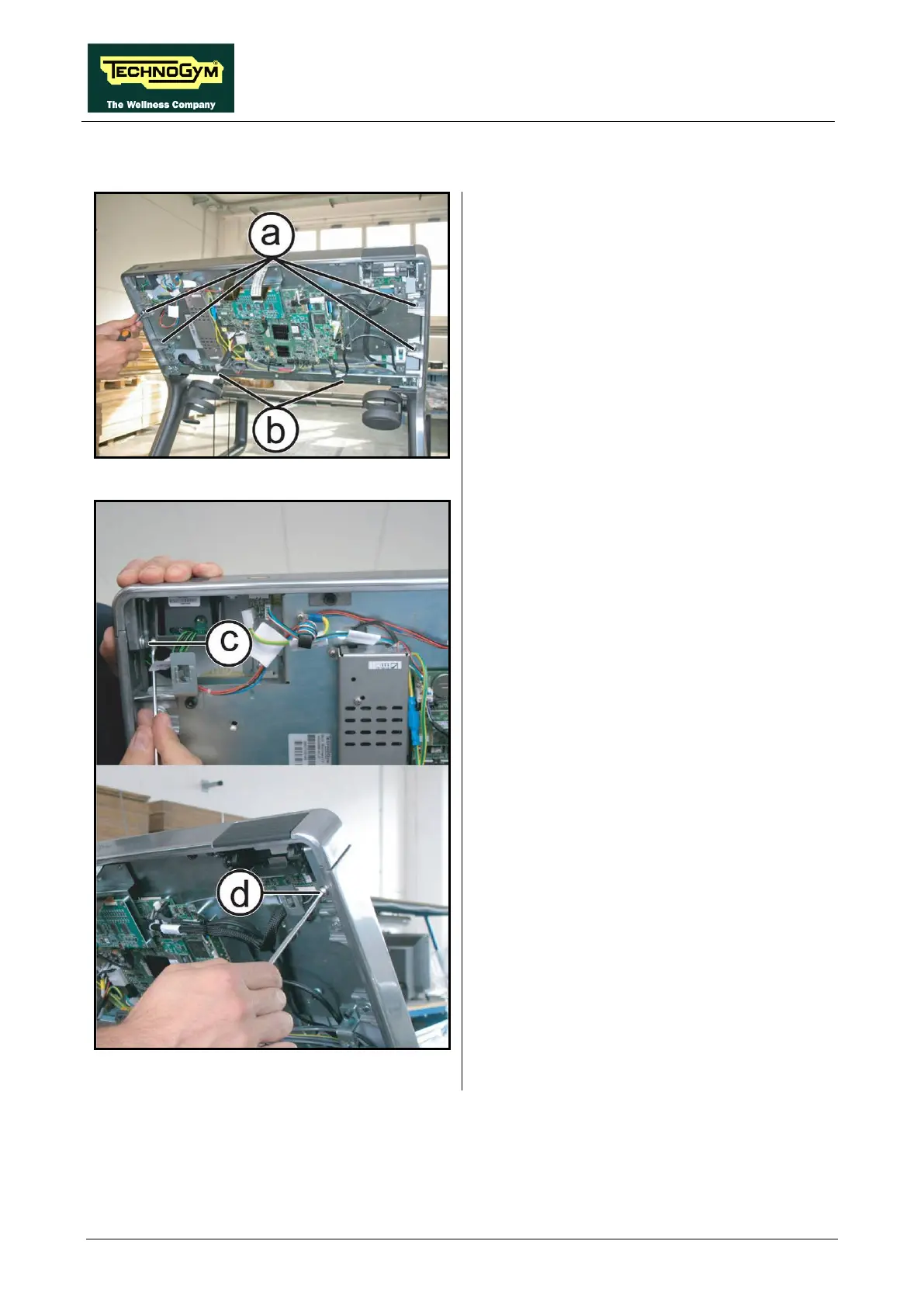

Figure 7.4-1
Carry out the operations up to step (4) of
paragraph: 7.1. “
Disassembling the touch
screen”.
1. Back off the 4 screws (a) using a 10mm
wrench.
Figure 7.4-2
2. Unloose the screw (c) using a 10mm wrench.
3. Back off the screw (d)
using a 4mm hex
wrench.
Continued on following page…
