RUN PERSONAL: Service & maintenance manual - rev. 3.1
Page 7.9

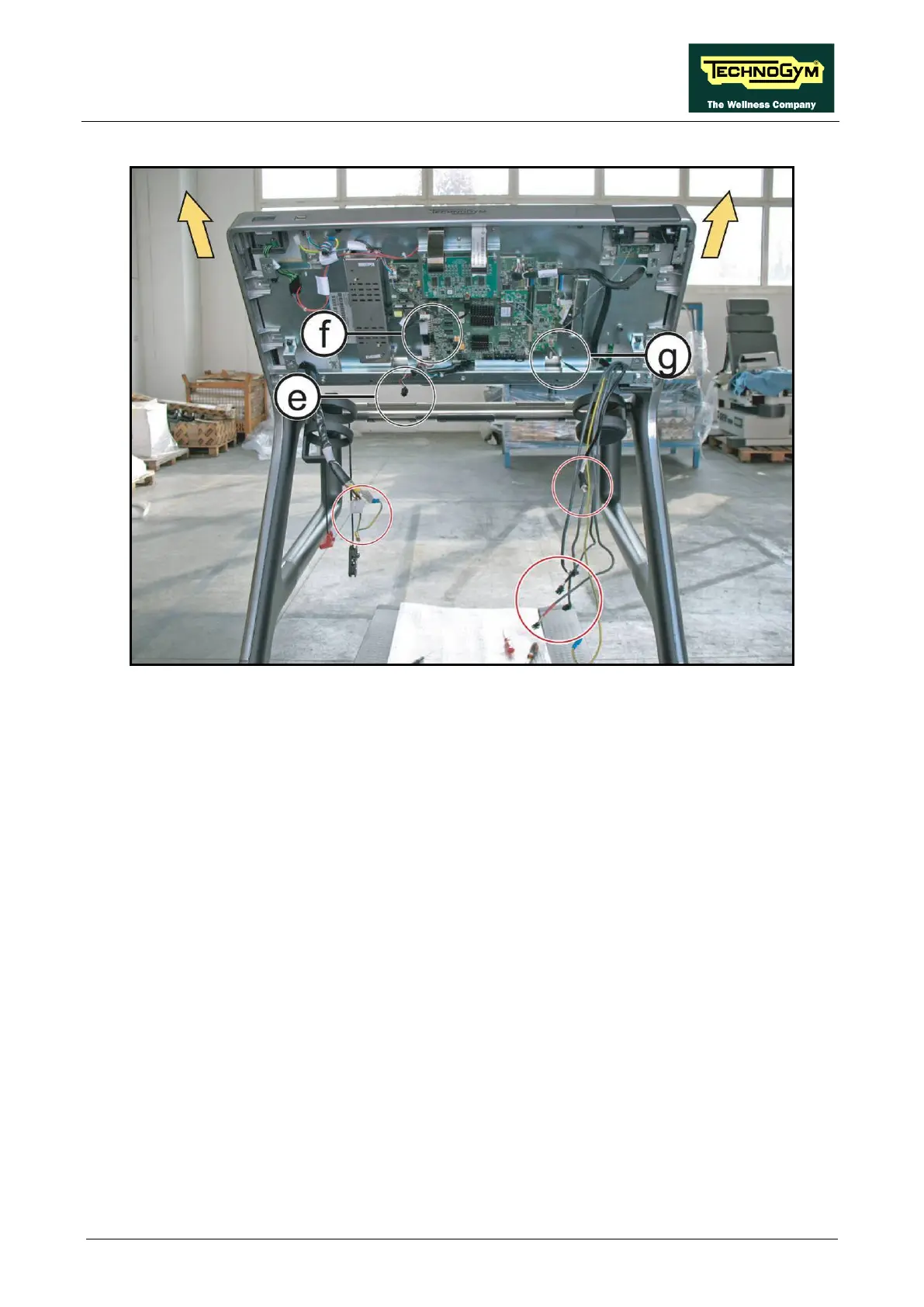

Figure 7.4-3
4. Remove the cable ties.
5. Unplug the following connectors: emergency stop (e), power supply (f)
and TUNER Board
antenna (g), indicated in the figure.
6. Carefully remove the Display in the direction of the arrows and place it on a work bench.
To reassemble the Display
carry out the above steps in reverse order, observing the following cautions.
Continued on following page…
