7.5. DISASSEMBLING THE DISPLAY BOARDS AND
COMPONENTS

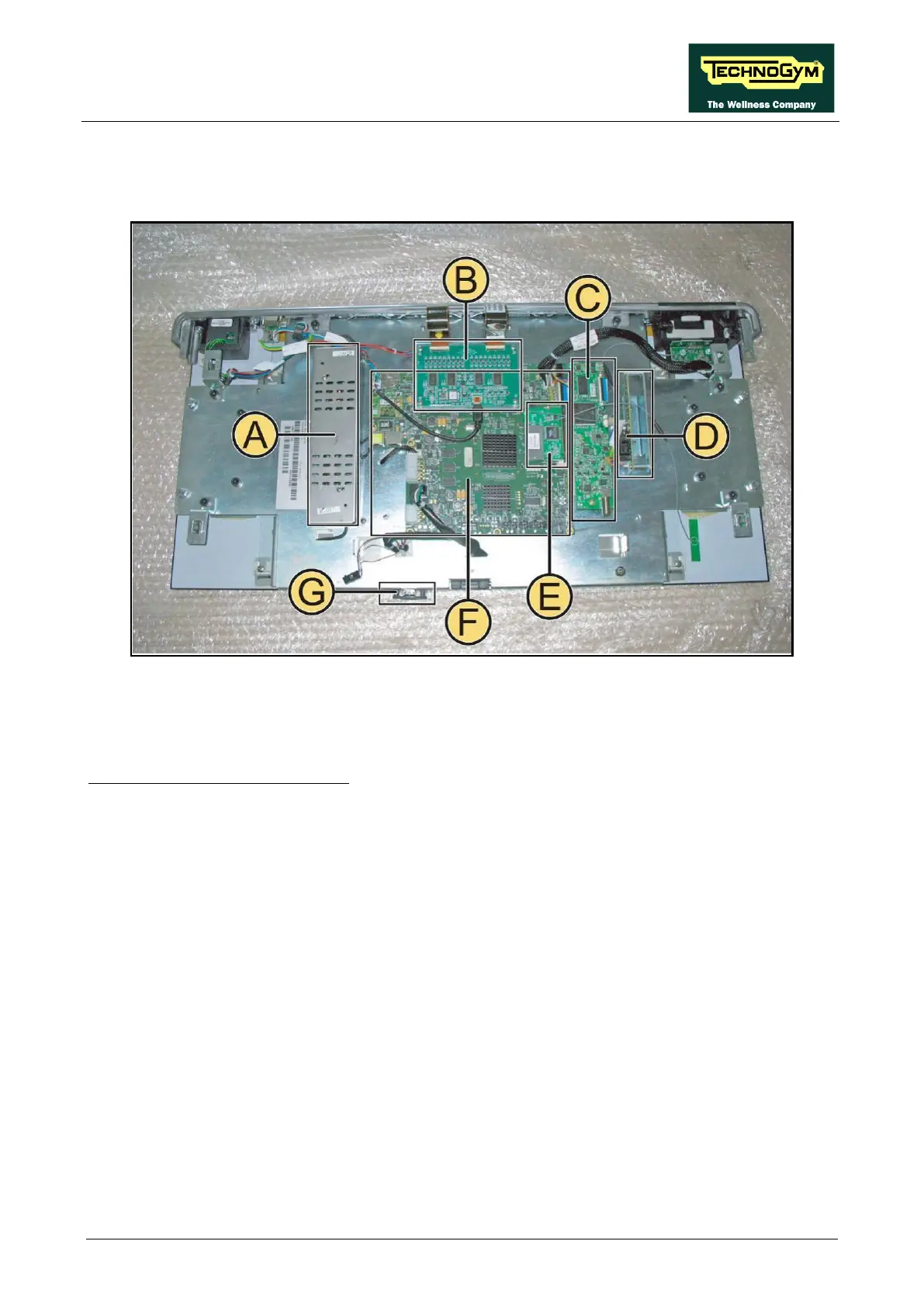

Figure 7.5-1
Carry out the procedure described in paragraph: 7.4. “Disassembling the display”.
Place the display on a work bench.
It is now possible to remove the following components:
• LCD inverter (A)
• Touch screen control board (B)
• TUNER board (C)
• C-Safe and USB connector board (D)
• Wireless Board (E)
• CPU Board (F)
• Headphone jack (G)
Continued on following page…
