RUN PERSONAL: Service & maintenance manual - rev. 3.1
Page 7.1
7. PART DISASSEMBLY
7.1. DISASSEMBLING THE TOUCH SCREEN

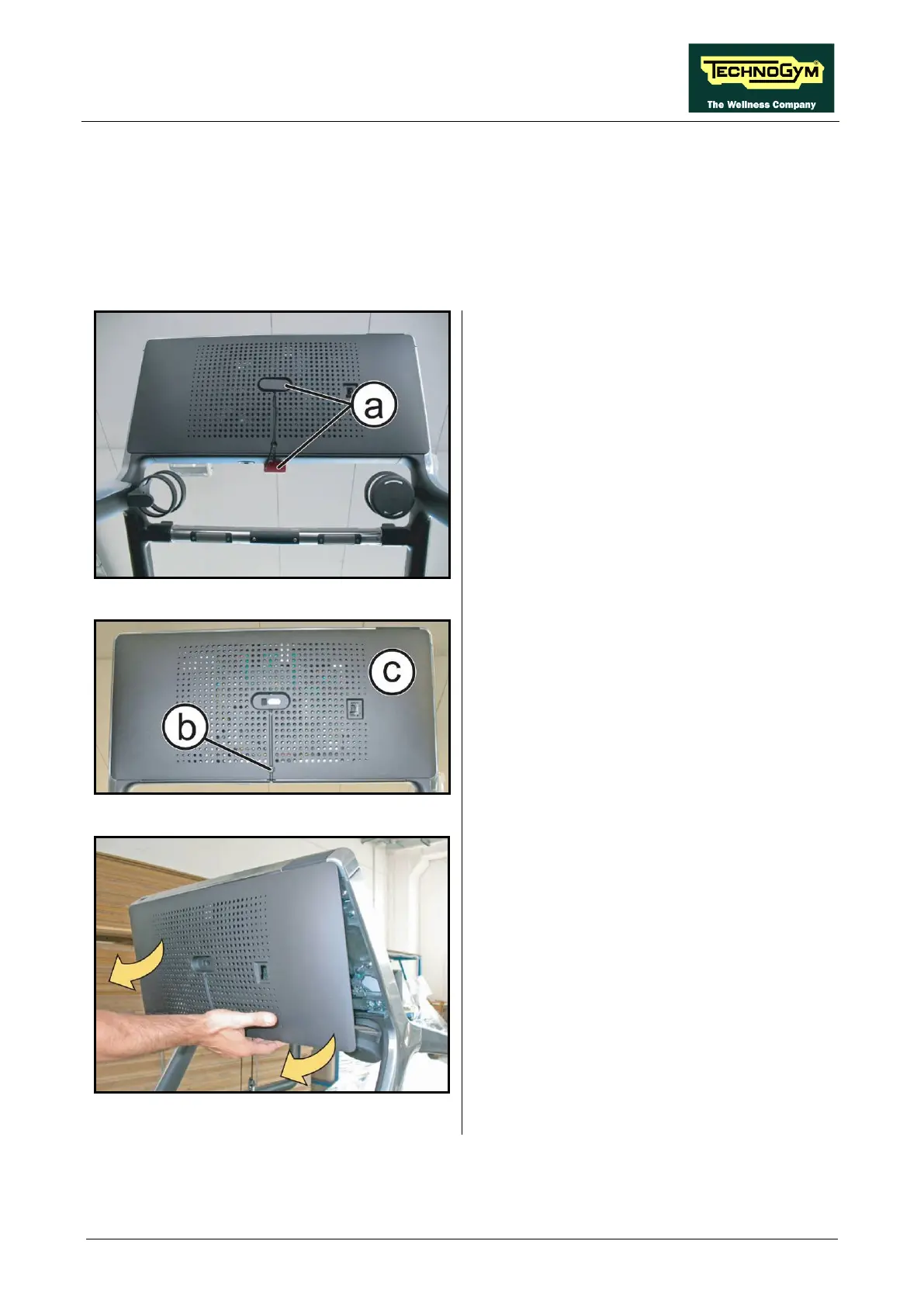

Figure 7.1-1
For the operations that follow: turn off the
machine and unplug the mains lead from the
wall outlet.
1. Remove the emergency stop magnet (a) and
its clip from their seats.
Figure 7.1-2
2. Back off the screw (b) using a 4mm hex
wrench.
3. Remove the rear guard (c).
Figure 7.1-3
4.
Exerting a slight pressure, pull the guard as
indicated by the arrows in the figure, and
remove it.
Continued on following page…
