© Technosoft 2007 24 IBL2403 Technical Reference
c) If the analogue signal source is differential and the signal source ground is common with
the drive GND, use a 2-wire shielded cable as follows: 1
st
wire connects the signal plus to
the drive positive input (+); 2
nd
wire connects the signal minus to the drive negative input
(-).
3.2.8. Motor connections
3.2.8.1 Brushless Motor connection
J2
Brushless motor connection
GND
IBL2403 v1.1
MotionChip
TM

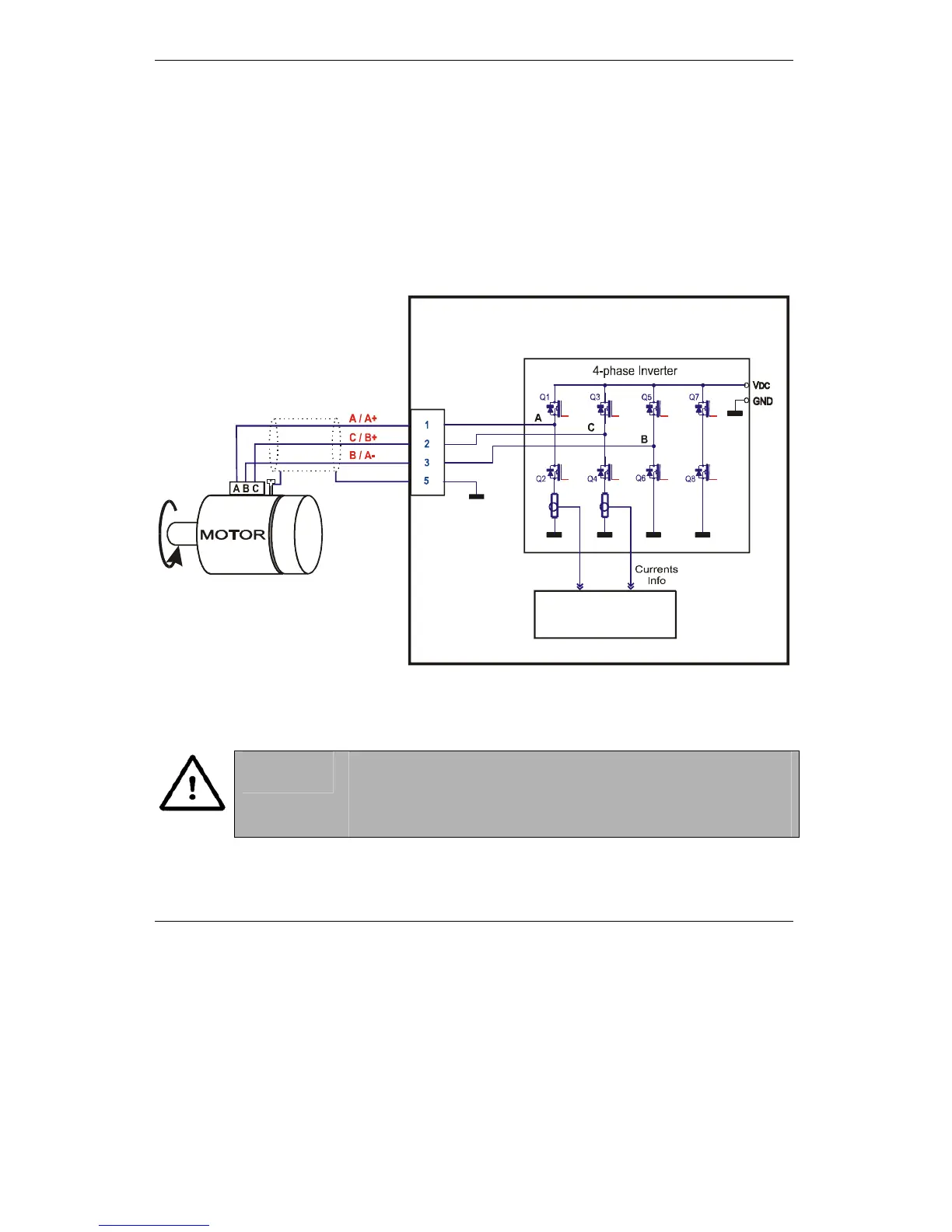

Figure 3.10. Brushless Motor connection
CAUTION !
Before connecting the motor, be sure you have the right
application programmed to E2ROM, else you can damage the
motor and drive. At power-on, the TML application is
automatically executed. See paragraph 3.2.13 to disable this
feature.
