© Technosoft 2007 39 IBL2403 Technical Reference
3.2.13. Special connection (Non-Autorun)
If the drive contains in the E2ROM a valid TML application, when power-on this application is
automatically executed (the drive is by default in the autorun mode).
To disable this feature in case that the application in the E2ROM is corrupted and the RS232
communication is lost, make the following connections:
6
GND
+3.3V
Hall1
Hall2
7
Connection for Non-Autorun IBL2403 v1.1
MotionChip
TM
+3.3V
Hall3
J2
5
3 x 1K
3 x 1K
+5V

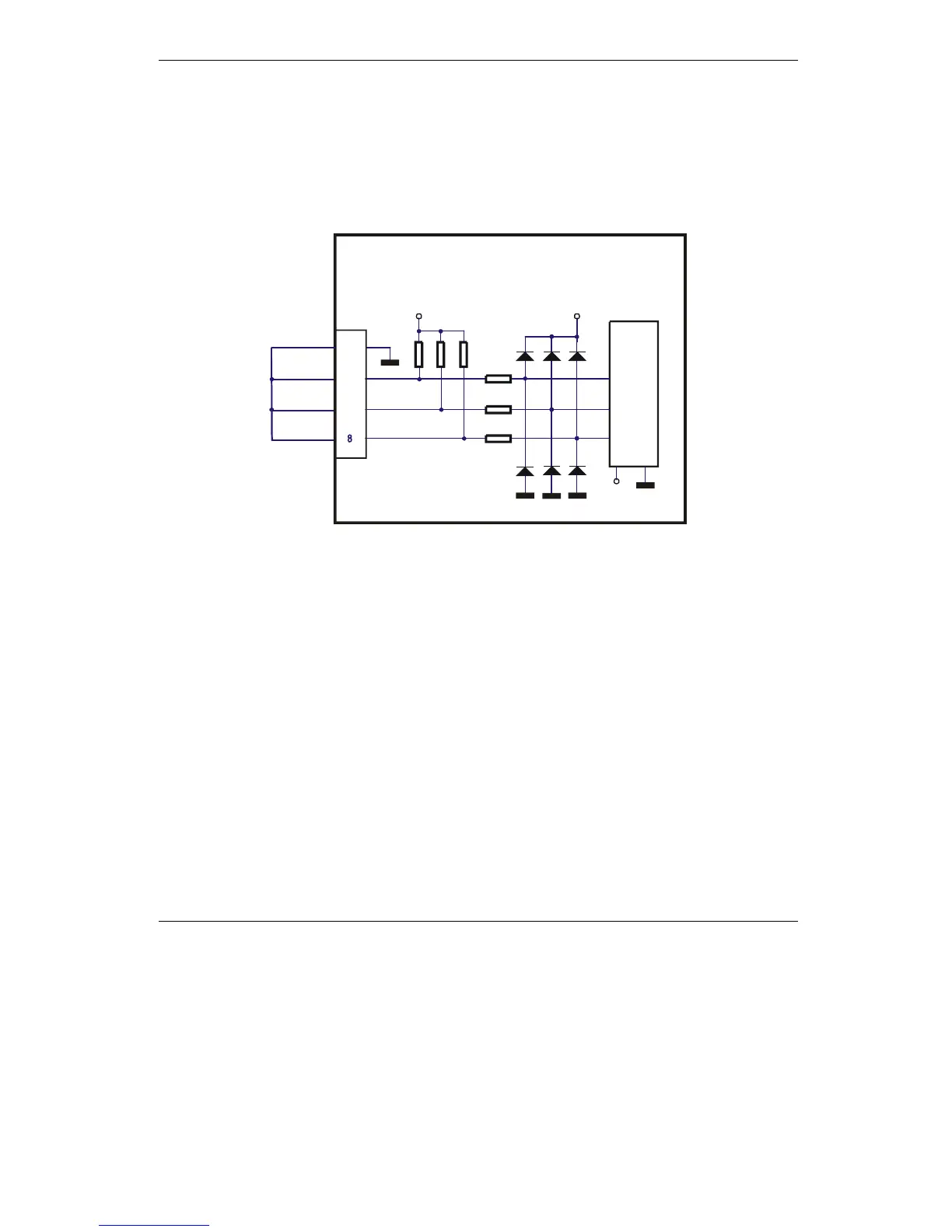

Figure 3.24. Connection for Non-Autorun
